Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
Place of Origin: | CHINA |
Brand Name: | FLY |
Certification: | CE |

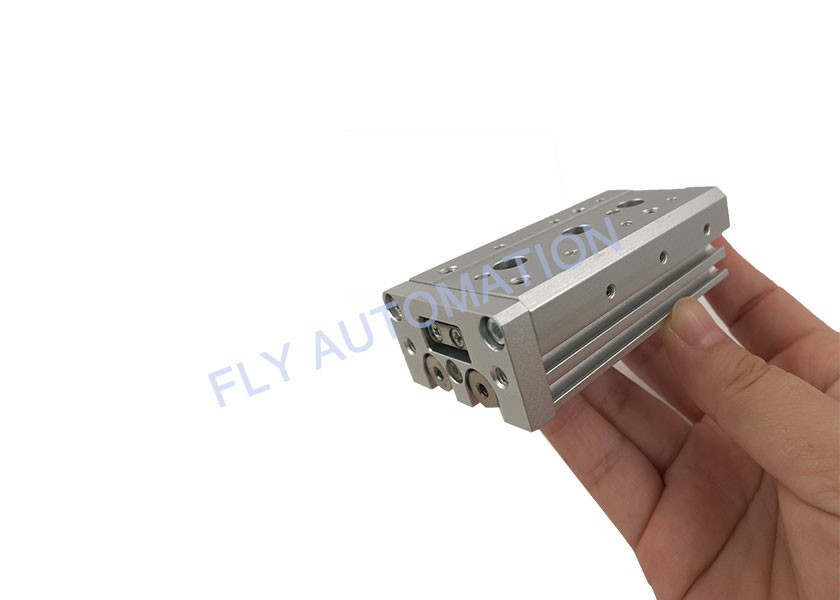

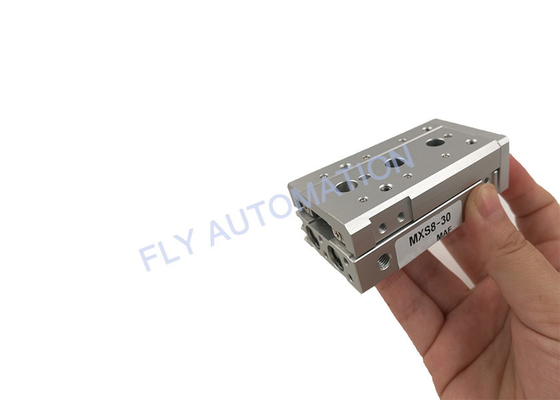

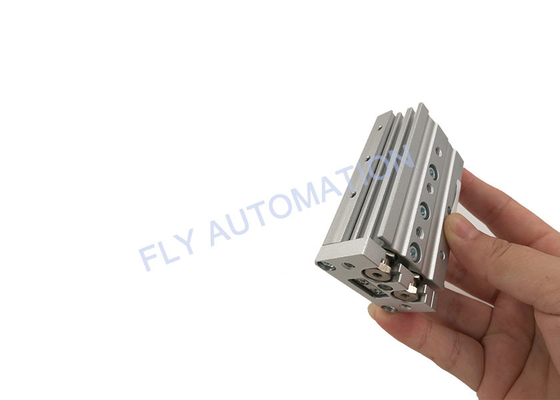

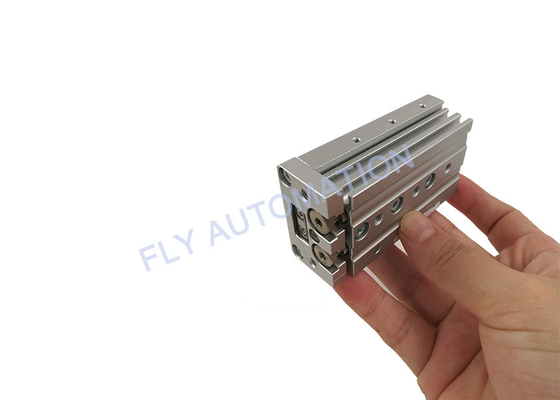

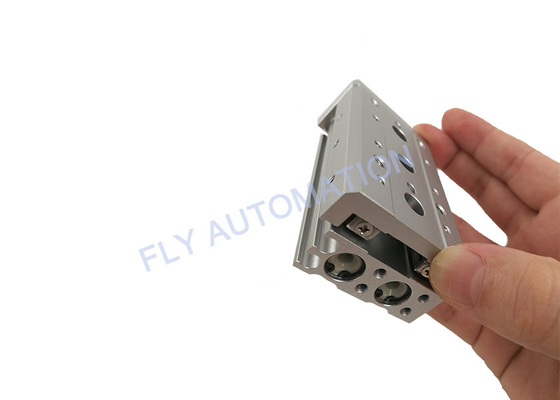

Model Number: | MXS8-30 |
Minimum Order Quantity: | 1 PCS |
---|---|
Price: | Negotiation |
Packaging Details: | Plastic bags, boxes, cartons, Pallets or As customer's requirement |
Delivery Time: | 1-7 work days |
Payment Terms: | Western Union, T/T, L/C, Paypal, Credit card |
Supply Ability: | 1000 pieces per 10 working days |
Action: | Double Acting | Fluid: | AIR |
---|---|---|---|
Operating Pressure: | 0.15 To 0.7 MPa | Proof Pressure: | 1.05 MPa |
Ambient And Fluid Temperature: | -10 To 60°C | Piston Speed: | 50 To 500 Mm/s |
High Light: | MXS8-30 SMC Pneumatic Cylinder,Aluminium Alloy SMC Pneumatic Cylinder,MXS8-30 SMC Cylinder |
Specifications | ||||||
Bore size (mm) | 6 | 8 | 12 | 16 | 20 | 25 |
Fluid used | Air | |||||
Action | Double acting | |||||
Operating pressure | 0.15 to 0.7MPa | |||||
Proof pressure | 1.05 MPa | |||||
Ambient and fluid temperature | –10 to 60°C | |||||
Piston speed | 50 to 500mm/s | |||||
Lubrication | Non-lube | |||||
Cushion | Rubber bumper (Standard, With stroke adjuster) Shock absorber (Option) | |||||
Auto switch | Reed switch (2-wire, 3-wire) Solid state switch (2-wire, 3-wire) 2-color indication solid state switch (2-wire, 3-wire) | |||||
Tolerance of stroke length | +1mm 0 |
Option | |||
Adjuster option | With stroke adjuster | Extension end (AS) | Stroke adjustment range 0 to 5 mm |
Retraction end (AT) | |||
Adjuster on both ends (A) | |||
With shock absorber | Extension end (BS) | W/ shock absorber is not available in Series MXS6. | |
Retraction end (BT) | |||
Absorber on both ends (B) | |||
Functional option | With buffer (F) | W/ end lock is not available in Series MXS6 | |
With end lock (R) | |||
Axial piping type (P) |
Standard Stroke | |
Model | Standard stroke (mm) |
MXS 6 | 10, 20, 30, 40, 50, |
MXS 8 | 10, 20, 30, 40, 50, 75, |
MXS 12 | 10, 20, 30, 40, 50, 75, 100, |
MXS 16 | 10, 20, 30, 40, 50, 75, 100, 125 |
MXS 20 | 10, 20, 30, 40, 50, 75, 100, 125, 150 |
MXS 25 | 10, 20, 30, 40, 50, 75, 100, 125, 150 |
Environment
Caution
1.Do not use in an environment exposed directly to liquids such as cutting oil.
If used in an environment exposed to cutting oil, coolant or oil mist, it generates play, increased sliding resistance of air leakage.
2.Do not use in an environment exposed directly to powder, dust or spatter etc.
It generates play, increases sliding resistance or air leakage. Consult SMC for use in such an environment.
3.Install a shade screen if exposed to the direct sun light.
4.Install a blocking cover if a heat source is in the area.
The product temperature may rise above the range of usage limit by radiant heat if a heat source is in the area. Install a cover to block from heat source.
5.Do not use in the area where there are vibrations or impacts.
It results in damage or malfunction. Consult SMC for usage under these environment.
Warranty
All item Comes with Basic 3 Months Sellers Warranty, if item defective in 3 Months, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Months, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
Delivery
1. If the products we have in stock, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNT will be normal ways. If you require use of a courier, we can do it.
After-sale Service
One year quality guarantee Policy
We will check the goods quality before shipment. If there are some unexpected problems happen, we hope to solve the problems with buyer through friendly in the following ways:
1, If it is quality problem, buyer can submit argue within 15days after receiving the goods, buyer must provide photos or video and other evidence to seller for identify.
2, Man-made damaged, buyers take full responsibility.
3, Product quality processing program:
1) The buyer return the products for bad quality reasons for one year (not included those damages coursed by shipping or Man-made damaged ). A 15% restocking fee is assessed for any products returned in "used" condition. And then we will send a new product to buyer and pay for the resend shipping cost.
2) If the goods (total price including shipping is less than 10USD) has quality problems, we will resend a new product in buyer next order; if buyer don't plan to make a new order in the near term, buyer can pay the resend shipping cost and ask to resend a new product. If there is an issue with the products, please contact us– we will solve it as soon as we get your email.
Serves time
0:00 - 23:59
From Monday to Sunday
