MXQ6-10 Pneumatic Air Cylinders SMC MXQ Series

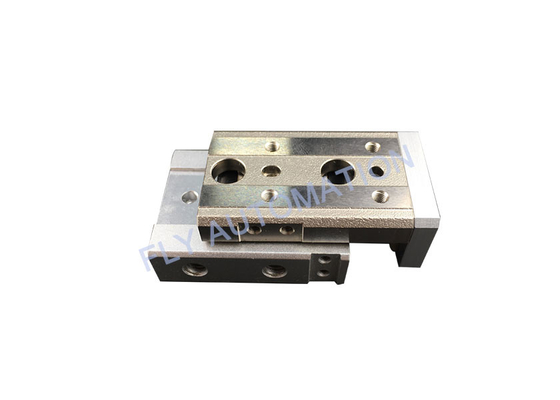

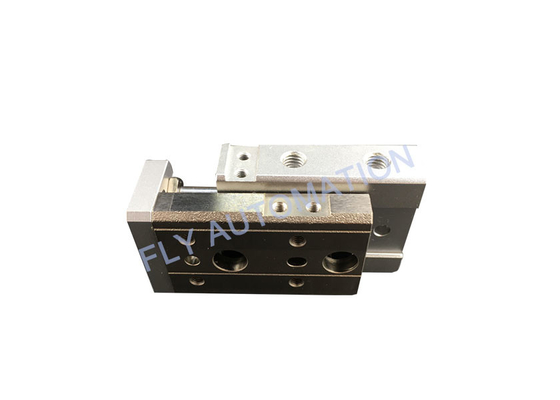

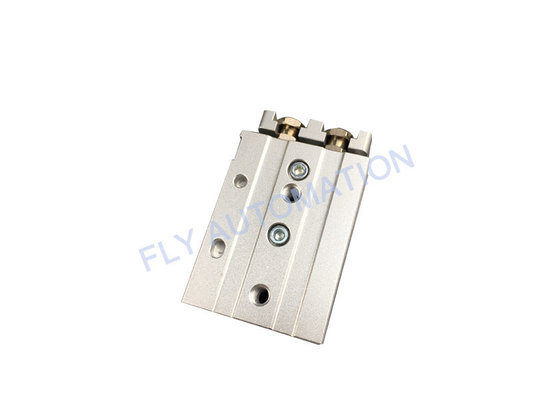

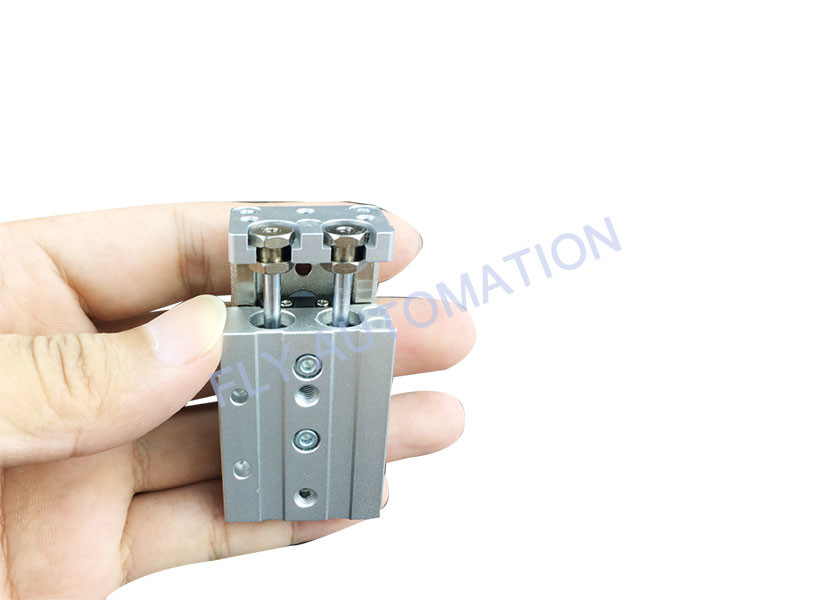

MXQ6-10 Air Slide Table Pneumatic Cylinder SMC MXQ Series Air Cylinder

Cylinder with built-in guide rail and table

Now with recirculating linear ball bearings for high rigidity and high precision

Air slide table for precise assembly applications

Selection

Caution

1.Do not apply a load beyond the range of the operation limits. Select the model by using the maximum allowable load and allowable moment. Refer to pages p.2-190 for details. When an actuator is used beyond its operating limits, eccentric loads on the guide section will be in excess which results in shorter life span due to play or inaccuracy of guide section.

2. If a table is stopped at an intermediate position by an external stopper, avoid ejection. If ejection occurs, it causes damage. If a slide table is stopped at an intermediate position by an external stopper and then forwarded to the front, draw back the intermediate stopper after supplying pressure to allow the slide table to return to the back for an instant, then supply pressure to the opposite port to operate the slide table.

3.Do not use in circumstances that excessive, external forces or impacts would be applied. These conditions could lead to malfunctions

After-sale Service
One year quality guarantee Policy
We will check the goods quality before shipment. If there are some unexpected problems happen, we hope to solve the problems with buyer through friendly in the following ways:
1, If it is quality problem, buyer can submit argue within 15days after receiving the goods, buyer must provide photos or video and other evidence to seller for identify.
2, Man-made damaged, buyers take full responsibility.
3, Product quality processing program:
1) The buyer return the products for bad quality reasons for one year (not included those damages coursed by shipping or Man-made damaged ). A 15% restocking fee is assessed for any products returned in "used" condition. And then we will send a new product to buyer and pay for the resend shipping cost.
2) If the goods (total price including shipping is less than 10USD) has quality problems, we will resend a new product in buyer next order; if buyer don't plan to make a new order in the near term, buyer can pay the resend shipping cost and ask to resend a new product. If there is an issue with the products, please contact us– we will solve it as soon as we get your email.
