MXQ16-40 1.05MPa Standard Pneumatic Air Cylinders

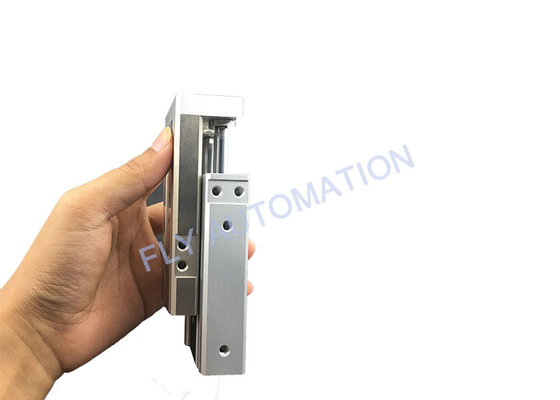

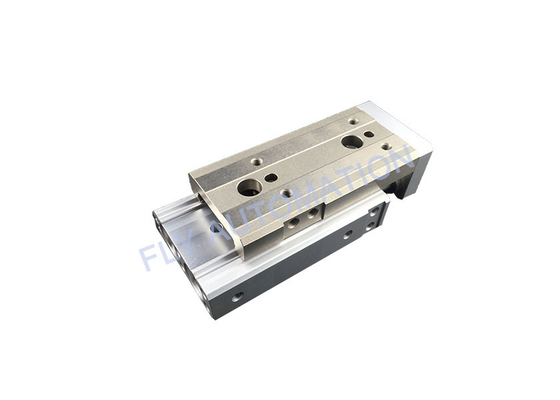

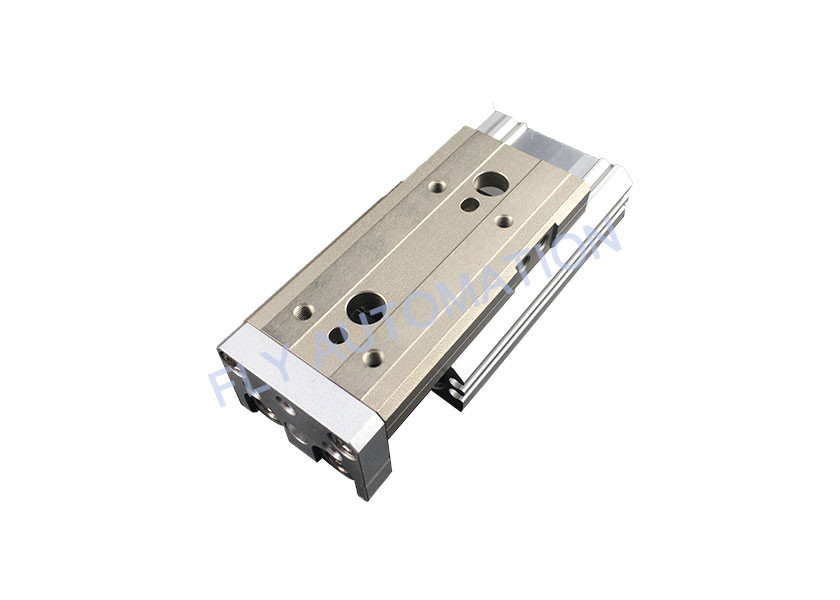

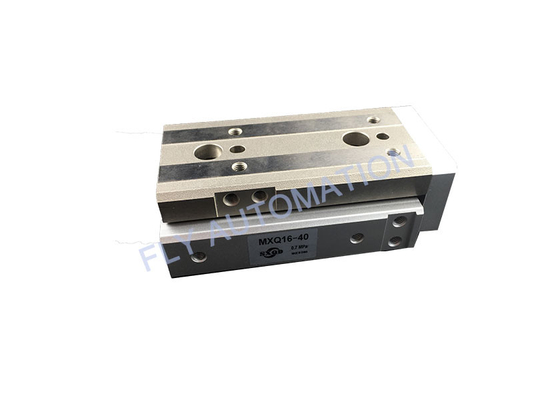

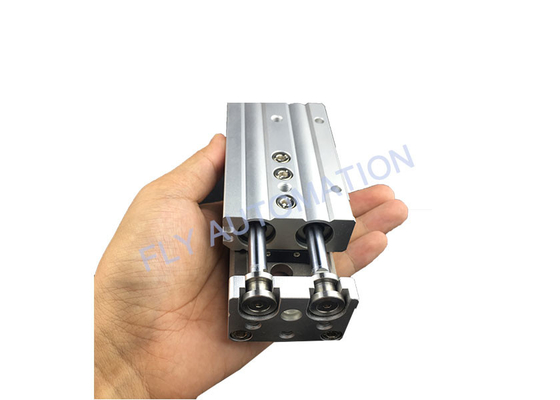

MXQ16-40 Air Slide Table Pneumatic Air Cylinder 1.05MPa Standard Cylinder

Cylinder with built-in guide rail and table

Now with recirculating linear ball bearings for high rigidity and high precision

Air slide table for precise assembly applications

Selection

Caution

1.Do not apply a load beyond the range of the operation limits. Select the model by using the maximum allowable load and allowable moment. Refer to pages p.2-190 for details. When an actuator is used beyond its operating limits, eccentric loads on the guide section will be in excess which results in shorter life span due to play or inaccuracy of guide section.

2. If a table is stopped at an intermediate position by an external stopper, avoid ejection. If ejection occurs, it causes damage. If a slide table is stopped at an intermediate position by an external stopper and then forwarded to the front, draw back the intermediate stopper after supplying pressure to allow the slide table to return to the back for an instant, then supply pressure to the opposite port to operate the slide table.

3.Do not use in circumstances that excessive, external forces or impacts would be applied. These conditions could lead to malfunctions

Environment

Caution

1.Do not use in an environment exposed directly to liquids such as cutting oil.

If used in an environment exposed to cutting oil, coolant or oil mist, it generates play, increased sliding resistance of air leakage.

2.Do not use in an environment exposed directly to powder, dust or spatter etc.

It generates play, increases sliding resistance or air leakage. Consult SMC for use in such an environment.

3.Install a shade screen if exposed to the direct sun light.

4.Install a blocking cover if a heat source is in the area.

The product temperature may rise above the range of usage limit by radiant heat if a heat source is in the area. Install a cover to block from heat source.

5.Do not use in the area where there are vibrations or impacts.

It results in damage or malfunction. Consult SMC for usage under these environment.

Mounting

Caution

1.Do not scratch or dent the mounting side of the body, table or end plate.

Decreasing flatness on the mounting surface causes play in the guide section and increases sliding resistance.

2.Do not scratch or dent on the forward side of the rail or guide.

It can generation play in the guide section and increase sliding resistance.

3.Do not apply excessive impacts or moments when a work is mounted.

If external load beyond the specified allowable moment is applied, it generates play in the guide section and increases sliding resistance.

4.Flatness of mounting surface should be 0.02mm or less.

Insufficient flatness of work piece of base to which an air slide table is mounted can generates play in the guide section and increase sliding resistance.

5.When connecting with loads which has external support or external guide mechanism, select the connection and align properly.

6.Take care to prevent contact with objects such as a hand while an air slide table is in operation.

A hand can be caught by an adjuster. Install a protection cover if anything could interfere during its operation.

7.Do not bring into close contact with objects which would be influenced by magnetic fields.

As an air slide table has magnets builtin, do not allow close contact with magnetic disks, magnetic cards or magnetic tapes. Data may be erased

8.When mounting an air slide table, screws of appropriate length should be used and tightened properly within the maximum tightening torque.

If screws are tightened beyond designed limits, malfunction may occur. If they are tightened insufficiently, it may result in sliding of falling off from its position

Warranty

All item Comes with Basic 3 Months Sellers Warranty, if item defective in 3 Months, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.

If item Defective after 3 Months, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.

Delivery
1. If the products we have in stock, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNT will be normal ways. If you require use of a courier, we can do it.

Serves time
0:00 - 23:59
From Monday to Sunday

FAQ:

Q: Where is your factory ? Can we visit your factory?

A:Our factory is located in Ningbo City, Zhejiang Province,China, 17kms away from Ningbo Airport. We sincerely welcome customers to visit our company and factory.

Q: Could you add our logo on your products?

A: Yes,if your quantity more than 50pcs. we could add your logo on the products.

Q: How long is your delivery time?

A: Generally it is 1-2 days if the goods are in stock. or it will be 3-5 weeks if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ?
A: Yes, we could offer the sample for free charge, but do not pay the cost of express freight.

Q: What is your payment term and payment way?
A: Payment<=2000USD, 100% in advance.

Payment>=2000USD, 30% T/T in advance ,balance before shippment. Payment ways are : T/T, Western Union, Paypal, Alipay.

Q.What’s the shipping way?

A: For small packages, we will choose the door to door express, we cooperated with UPS,DHL,FEDEX,TNT more than 10 years,we gurantee the shipping cost that we offer to you will be the most favorable price among so many suppliers in China. We will send you the tracking number once we got it.
For big orders, By Air or By Sea through your shipping forwarder is acceptable, if you don't have forwarder in China, we will find the most cost-effective one for you.
