| Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
 |
| Place of Origin: | CHINA |
| Brand Name: | FLY |
| Certification: | CE |

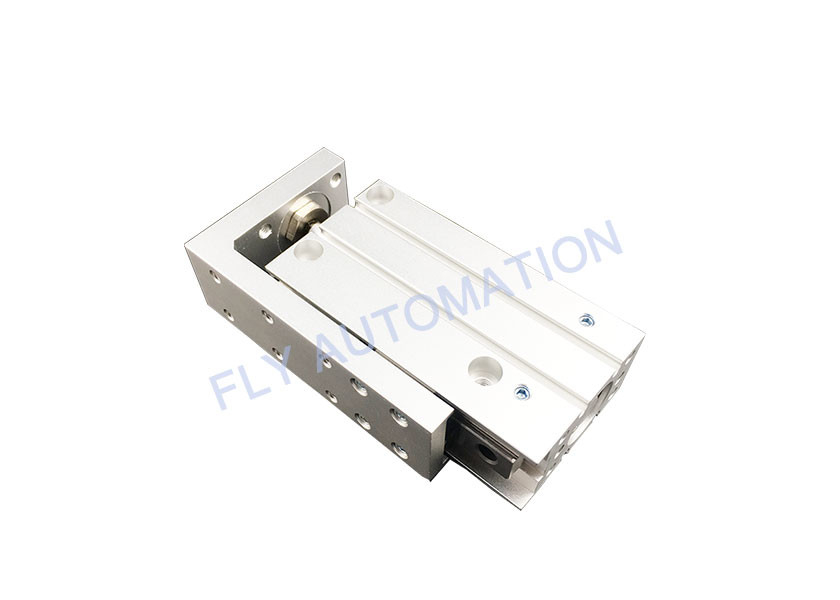

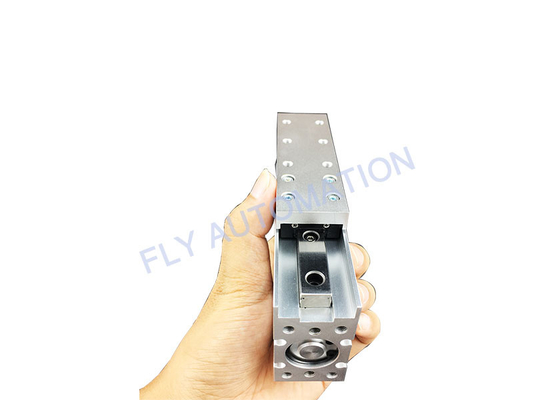

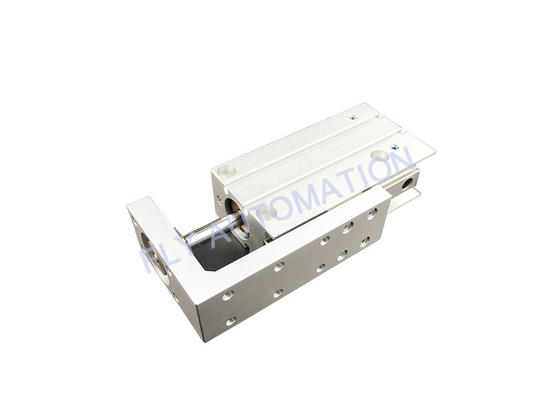

| Model Number: | MXH20-50 |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiation |

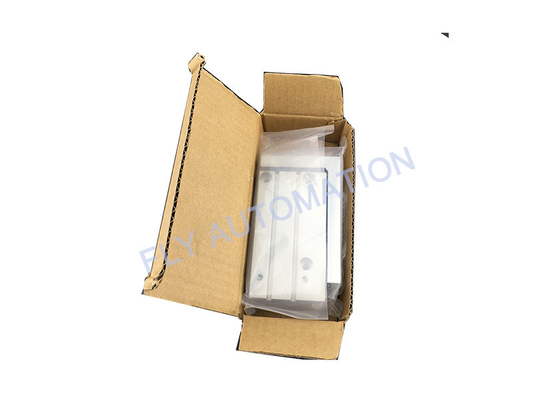

| Packaging Details: | Plastic bags, boxes, cartons, Pallets or As customer's requirement |
| Delivery Time: | 1-7 work days |
| Payment Terms: | Western Union, T/T, L/C, Paypal, Credit card |
| Supply Ability: | 1000 pieces per 10 working days |
| Fluid: | Double Acting | Piping Port Size: | M5 |
|---|---|---|---|
| Maximum Operating Pressure: | 0.7 MPA | Lubrication: | Non-lube |
| Cushion: | Rubber Bumper On Both Ends | Proof Pressure: | 1.05 MPA |
| High Light: | MXH20-50 Double Air Cylinder,Double Air Cylinder SMC,MXH20-50 SMC Cylinder Pneumatic |
||
| Specifications | ||||
| Bore size (mm) | 6 | 10 | 16 | 20 |
| Guide rail width (mm) | 5 | 7 | 9 | 12 |
| Fluid | Air | |||
| Action | Double acting | |||
| Piping port size | M5 | |||
| Minimum operating pressure | 0.15 MPa | 0.06 MPa | 0.05 MPa | |
| Maximum operating pressure | 0.7 MPa | |||
| Proof pressure | 1.05 MPa | |||
| Ambient and fluid temperature | Without auto switch: –10 to 70°C (No freezing) With auto switch: –10 to 60°C (No freezing) |
|||
| Piston speed | 50 to 500 mm/s | |||
| Allowable kinetic energy (J) | 0.0125 | 0.025 | 0.05 | 0.1 |
| Lubrication | Non-lube | |||
| Cushion | Rubber bumper on both ends | |||
| Stroke length tolerance | + 1.0 0 |
|||
| Theoretical Output (N) | ||||||
| Bore size (mm) |
Rod size (mm) |
Operating direction |
Piston area (mm2) |
Operating pressure (MPa) | ||
| 0.3 | 0.5 | 0.7 | ||||
| 6 | 3 | OUT | 28.3 | 8.49 | 14.2 | 19.8 |
| IN | 21.2 | 6.36 | 10.6 | 14.8 | ||
| 10 | 4 | OUT | 78.5 | 23.6 | 39.3 | 55 |
| IN | 66 | 19.8 | 33 | 46.2 | ||
| 16 | 6 | OUT | 201 | 60.3 | 101 | 141 |
| IN | 172 | 51.6 | 86 | 121 | ||
| 20 | 8 | OUT | 314 | 94.2 | 157 | 220 |
| IN | 264 | 79.2 | 132 | 185 | ||
| Standard Stroke | |
| Bore size (mm) | Standard stroke (mm) |
| 6, 10, 16, 20 | 5, 10, 15, 20, 25, 30, 40, 50, 60 |
| Weight (g) | Stroke (mm) | ||||||||
| Model | 5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 |
| MXH6 | 62 | 67 | 76 | 81 | 91 | 96 | 111 | 125 | 140 |
| MXH10 | 117 | 125 | 140 | 148 | 162 | 170 | 192 | 215 | 238 |
| MXH16 | 216 | 227 | 247 | 258 | 279 | 290 | 323 | 353 | 386 |
| MXH20 | 437 | 455 | 486 | 505 | 542 | 560 | 597 | 656 | 700 |
FAQ:
Q: Where is your factory ? Can we visit your factory?
A:Our factory is located in Ningbo City, Zhejiang Province,China, 17kms away from Ningbo Airport. We sincerely welcome customers to visit our company and factory.
Q: Could you add our logo on your products?
A: Yes,if your quantity more than 50pcs. we could add your logo on the products.
Q: How long is your delivery time?
A: Generally it is 1-2 days if the goods are in stock. or it will be 3-5 weeks if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ?
A: Yes, we could offer the sample for free charge, but do not pay the cost of express freight.
Q: What is your payment term and payment way?
A: Payment<=2000USD, 100% in advance.
Payment>=2000USD, 30% T/T in advance ,balance before shippment. Payment ways are : T/T, Western Union, Paypal, Alipay.
Q.What’s the shipping way?
A: For small packages, we will choose the door to door express, we cooperated with UPS,DHL,FEDEX,TNT more than 10 years,we gurantee the shipping cost that we offer to you will be the most favorable price among so many suppliers in China. We will send you the tracking number once we got it.
.
For big orders, By Air or By Sea through your shipping forwarder is acceptable, if you don't have forwarder in China, we will find the most cost-effective one for you.
Warranty
All item Comes with Basic 3 Months Sellers Warranty, if item defective in 3 Months, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Months, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
Delivery
1. If the products we have in stock, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNT will be normal ways. If you require use of a courier, we can do it.
Serves time
0:00 - 23:59
From Monday to Sunday
Contact Person: Jaren
Tel: 0086-15257858856
Fax: 86-152-57858856
