Place of Origin: | CHINA |
Brand Name: | FLY |
Certification: | CE |

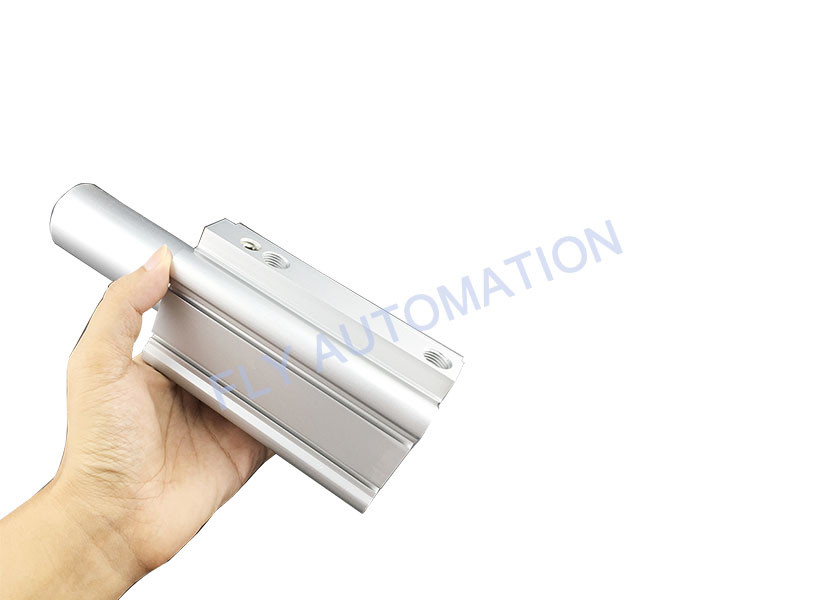

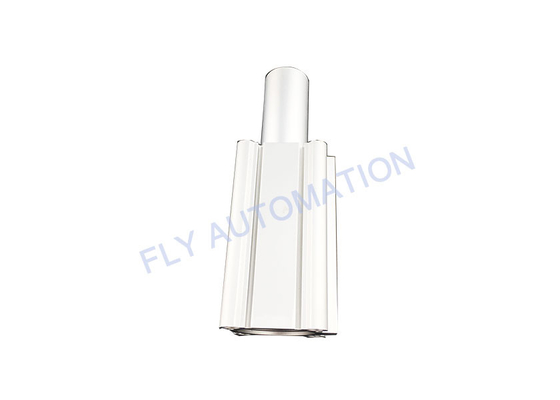

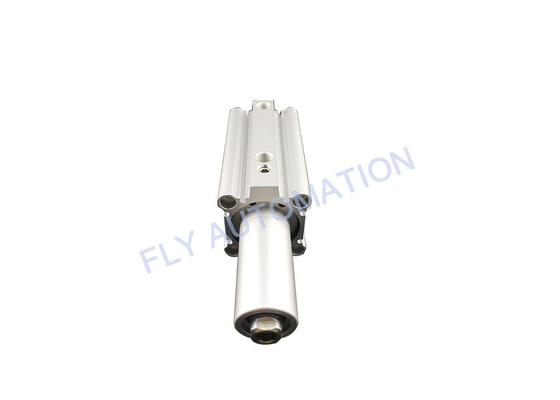

Model Number: | MKB50-50LZ |
Minimum Order Quantity: | 1 PCS |
---|---|
Price: | Negotiation |
Packaging Details: | Plastic bags, boxes, cartons, Pallets or As customer's requirement |
Delivery Time: | 1-7 work days |
Payment Terms: | Western Union, T/T, L/C, Paypal, Credit card |
Supply Ability: | 1000 pieces per 10 working days |
Action: | Double Acting | Fluid: | AIR |
---|---|---|---|
Proof Pressure: | 1.5MPA | Lubrication: | Not Required |
Cushion: | Rubber Bumper | Piston Speed: | 50 To 200 Mm/s |
High Light: | SMC Pneumatic Cylinder,MKB50-50LZ Small Pneumatic Cylinder,SMC Small Pneumatic Cylinder |
Specifications | ||||||||
Bore size (mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 |
Action | Double acting | |||||||
Rotary angle | 90° ±10° | |||||||
Rotary direction | Clockwise, Counterclockwise | |||||||
Rotary stroke (mm) | 7.5 | 9.5 | 15 | 19 | ||||
Clamp stroke (mm) | 10, 20, 30 | 10, 20, 30, 50 | ||||||
Theoretical clamp force (N) | 40 | 75 | 100 | 185 | 300 | 525 | 825 | 1400 |
Fluid | Air | |||||||
Proof pressure | 1.5 MPa | |||||||
Operating pressure range | 0.1 to 1 MPa | 0.1 to 0.6 MPa |
||||||
Ambient and fluid temperature | Without auto switch: –10 to 70°C (No freezing) With auto switch: –10 to 60°C (No freezing) |
|||||||
Lubrication | Non-lube | |||||||
Piping port size | M5 x 0.8 | Rc1/8, NPT1/8 G1/8 |
Rc1/4, NPT1/4 G1/4 |
|||||
Mounting | Through-hole/Both ends tapped common, Head flange | |||||||
Cushion | Rubber bumper | |||||||
Stroke length tolerance | +0.6 –0.4 |
|||||||
Piston speed Note 5) | 50 to 200 mm/s | |||||||
Non-rotating accuracy (Clamp part) | ±1.4° | ±1.2° | ±0.9° | ±0.7° |
Theoretical Output | |||||||
Bore size (mm) |
Rod size (mm) |
Operating direction |
Piston area (cm2) |
Operating pressure (MPa) | |||
0.3 | 0.5 | 0.7 | 1.0 | ||||
12 | 6 | R | 0.8 | 24 | 40 | 56 | 80 |
H | 1.1 | 33 | 55 | 77 | 110 | ||
16 | 8 | R | 1.5 | 45 | 75 | 105 | 150 |
H | 2 | 60 | 100 | 140 | 200 | ||
20 | 12 | R | 2 | 60.8 | 100 | 139 | 200 |
H | 3.1 | 90.2 | 149 | 208 | 298 | ||
25 | 12 | R | 3.8 | 112 | 185 | 258 | 370 |
H | 4.9 | 149 | 245 | 341 | 490 | ||
32 | 16 | R | 6 | 182 | 300 | 418 | 600 |
H | 8 | 243 | 400 | 557 | 800 | ||
40 | 16 | R | 10.6 | 319 | 525 | 731 | 1050 |
H | 12.6 | 380 | 625 | 870 | 1250 | ||
50 | 20 | R | 16.5 | 502 | 825 | 1149 | 1648 |
H | 19.6 | 596 | 980 | 1365 | 1961 | ||
63 | 20 | R | 28 | 851 | 1400 | 1950 | 2801 |
H | 31.2 | 948 | 1560 | 2172 | 3121 |
Mass/Through-hole Mounting | ||||||||
Clamp stock (mm) | Bore size (mm) | |||||||
12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | |
10 | 70 | 100 | 250 | 280 | 500 | 595 | - | - |
20 | 87 | 123 | 290 | 320 | 525 | 640 | 1100 | 1520 |
50 | - | - | - | - | - | - | 1350 | 1805 |
Caution
Clanp Arm Mounting
1. Use a clamp arm that is available as an option. To fabricate a clamp arm, make sure that the allowable bending moment and the inertial moment will be within the specified range.If a clamp arm that exceeds the specified value is installed, the internal mechanism in the cylinder could become damaged.
Ensuring Safety
1. If one side of the piston is pressurized by sup- plying air with the clamp arm attached, the tpiston will move vertically while the clamp arm rotates. This operation could be hazardous to personnel, as their hands or feet could get caught by the clamp arm, or could lead to equipment damage. Therefore, it is important to secure as a danger zone a cylindrical area wlth the length of the clamp arm as lts radlus, and the stroke plus 20 mm as its height.
Installation and Adjustment/Clamp Arm Removal and Reinstallation
1. During the removal or reinstallation of the clamp arm, make sure to use a wrench or a vise to secure the clamp arm before remov- ing or tightening the bolt.This is to prevent the bolt tightening torque from being applied to the piston rod, which could damage the cylinder's internal mechanism.
