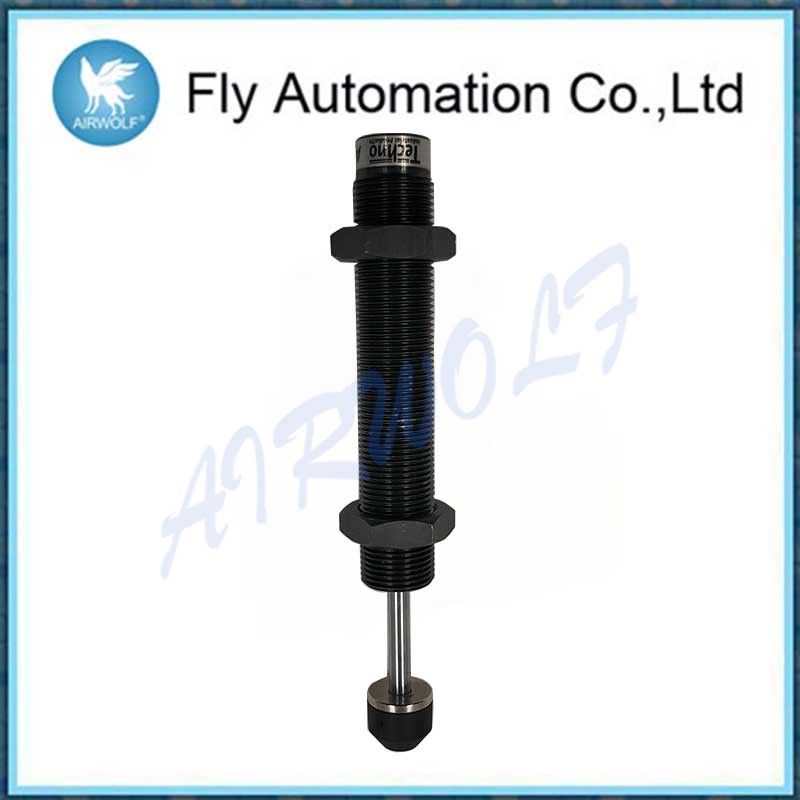

Middle lode Airtac type AC2030-2 shock absorber 30mm stroke hydraulic buffer
Description
The AC series Self-compensation shock absorber are designed with high hardness stainless steel shaft, the shock absorber has better impact and corrosion resistance, and it can work under adverse conditions. The compact structure leads to high max. absorbed energy, and the special oiling process leads to stable shock absorbing. The outer body of integrated structure is treated by QPQ, which has optimum corrosion and wear resistance and can withstand high pressure; it is easy to install and adjust for all threaded outer body which has good heat dissipation.
Ordering Code
Principle
When piston rod is impacted, it will drive piston to press oil in inner tube. Oil will be pressed out through orifice holes of inner tube. At the same time, the oil returns to inner tube through returning hole of inner tube.
After outside force vanishes, spring makes piston rod immediately return to its position. Oil will return to inner tube through check valve. Then shock absorber will return to be ready position waiting for next action.
Application
The oil pressure buffer is mainly used in cylinder, combined air pressure manipulator, lathe, robot, Conveyor Systems etc. Examples of Application: drill pree, platform drill hole, circular saw cutting, lathe turning tool cutting, pneumatic aiguille drill hole, slide carriage stable speed.
Feature
| Model |
Stroke (mm) |
Max. Impact Speed (m/s) |
| AC1410-2 |
10 |
2 |
| AC1420-2 |
20 |
2 |
| AC1425-2 |
25 |
2 |
| AC2020-2 |
20 |
2 |
| AC2030-2 |
30 |
2 |
| AC2050-2 |
50 |
2 |
| AC2525-2 |
25 |
2 |
| AC2550-2 |
50 |
2 |
| AC3660-2 |
60 |
2 |
Function
1. Eliminate the impact of non-mechanical motion such as vibration and collision damage.
2. Reduce noise and provide quiet working environment.
3. Accelerate the frequency of mechanical action and increase production capacity.
4. Extend mechanical life.
Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex, TNL will be normal ways, If you require use of a courier, we can do it.
4. Also we can send by your delivery acount if you want.
After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
