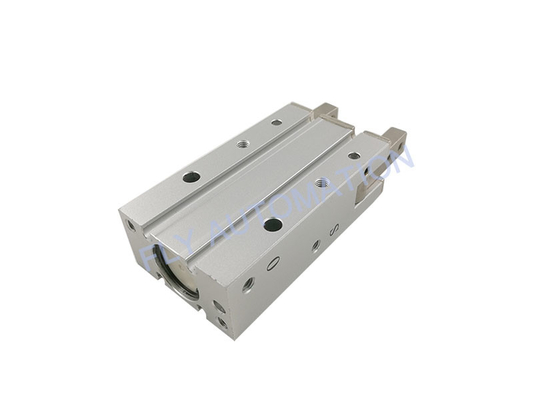

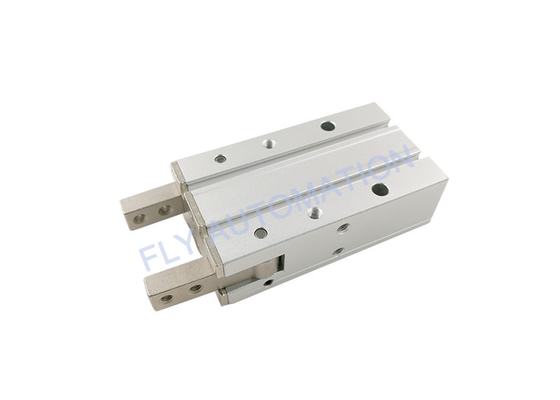

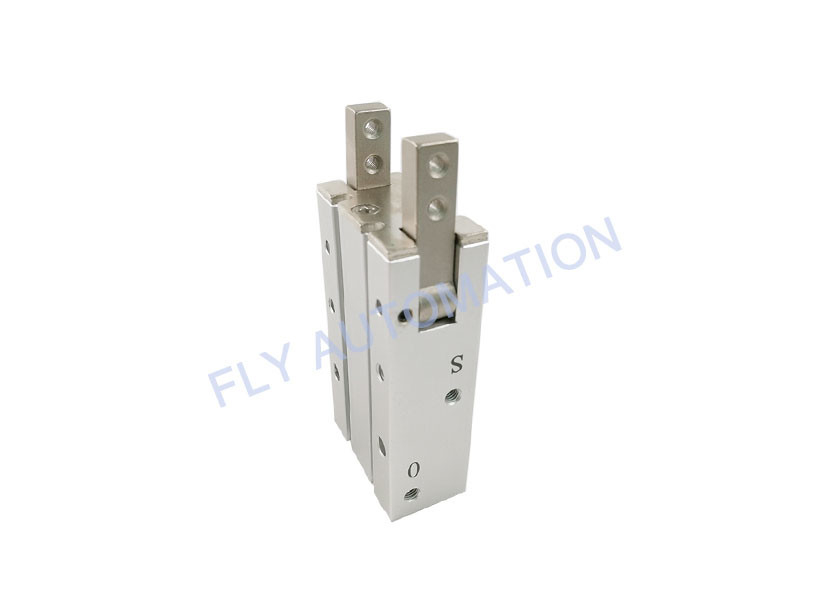

MHY2-20D 180° Angular Gripper Pneumatic Air Cylinders SMC Double Acting

MHY2-20D 180° Angular Gripper Pneumatic Air Cylinders SMC Double Acting

  • MHY2-20D 180° Angular Gripper Pneumatic Air Cylinders SMC Double Acting
  • MHY2-20D 180° Angular Gripper Pneumatic Air Cylinders SMC Double Acting
  • MHY2-20D 180° Angular Gripper Pneumatic Air Cylinders SMC Double Acting
  • MHY2-20D 180° Angular Gripper Pneumatic Air Cylinders SMC Double Acting
MHY2-20D 180° Angular Gripper Pneumatic Air Cylinders SMC Double Acting
Product Details:
Place of Origin: CHINA
Brand Name: FLY
Certification: CE
Model Number: MHY2-20D
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiation

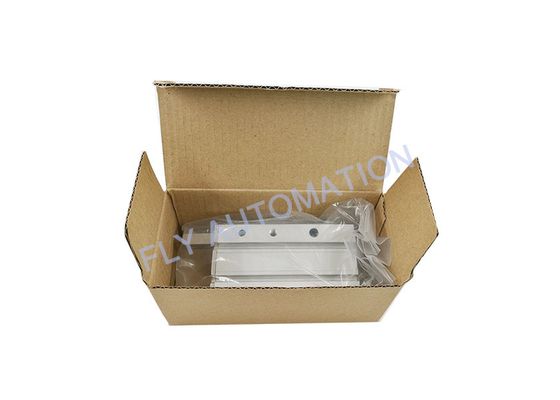

Packaging Details: Plastic bags, boxes, cartons, Pallets or As customer's requirement
Delivery Time: 1-7 work days
Payment Terms: Western Union, T/T, L/C, Paypal, Credit card
Supply Ability: 1000 pieces per 10 working days
Contact Now
Detailed Product Description
Fluid: AIR Operating Pressure: 0.1 To 0.6 MPA
Ambient And Fluid Temperature: -10 ~60 ℃ Repeatability: ±0.2mm
Lubrication: Not Required Action: Double Acting
High Light:

MHY2-20D Pneumatic Air Cylinders

,

180° Angular Gripper Pneumatic Air Cylinders

MHY2-20D 180° Angular Gripper Cylinder SMC Double Acting Pneumatic Air Cylinder



Specifications
Fluid Air
Operating pressure 0.1 to 0.6 Mpa
Ambient and fluid temperature -10 to 60 ℃
Repeatability ±0.2mm
Max.opreating frequency 60.c.p.m
Lubrication Not required
Auto switch(Option) Solid state auto switch (3-wire,2-wire)



Effective gripping force
(N-m)
Opening/Closing angle
( Both sides)
Mass
(g)
Opening
side
Closing
side
0.16 180º -3º 70
0.54 150
1.10 320
2.28 560



MHY2-20D 180° Angular Gripper Pneumatic Air Cylinders SMC Double Acting

MHY2-20D 180° Angular Gripper Pneumatic Air Cylinders SMC Double Acting

MHY2-20D 180° Angular Gripper Pneumatic Air Cylinders SMC Double Acting

Component Parts

No Description Materia Note
1 Body Aluminum alloy Hard anodized
2 Piston ø10: Stainless steel ø16 to 25: Aluminum alloy ø16 to 25: Chromated
3 Joint Stainless steel Heat treatment
4 Finger Stainless steel Heat treatment
5 Cap Resin
6 Ware ring Resin
7 Shaft Stainless steel Nitriding
8 Bushing A Sintered alloy steel
9 Bushing B Sintered alloy steel
10 End plate Stainless steel
11 Bumper Urethane rubber
12 Cylindrical roller High carbon chrome bearing steel
13 Joint roller Carbon steel Nitriding
14 Rubber magnet Synthetic rubber
15 C-shape snap ring Carbon steel arbon steel
16 Piston bolt Stainless steel
