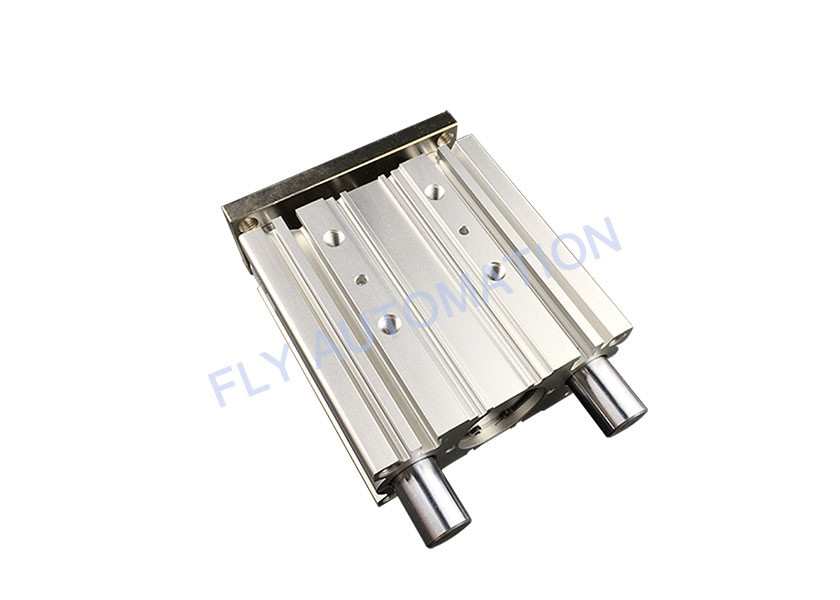

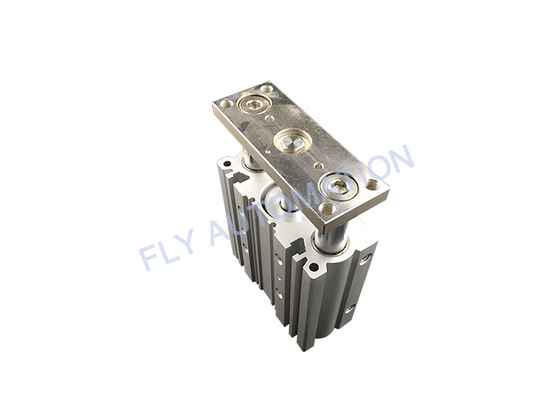

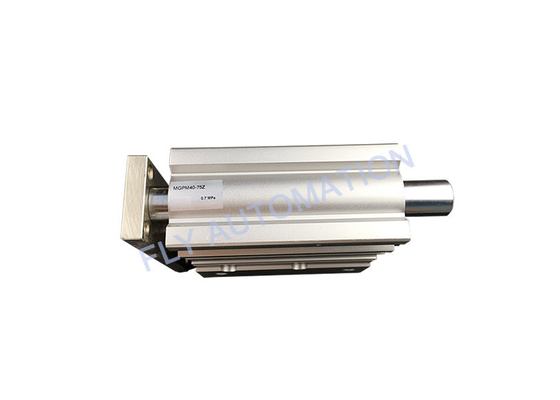

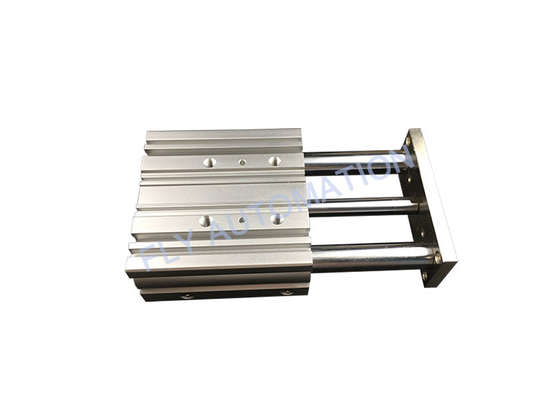

MGPM40-75Z Compact Guide Cylinder 1.0 MPa SMC MGP Series Air Cylinder
| Specifications |
| Action |
Double acting |
| Fluid |
Air |
| Proof pressure |
1.5MPa |
| Max. operating pressure |
1.0MPa |
| Minimum operating pressure |
ø12, ø16 |
0.12 MPa |
| ø20 to ø100 |
0.1 MPa |
| Ambient & fluid temperature |
-10 to 60℃(No freezing) |
| Piston speed |
ø12 to ø63 |
50 to 500 mm/s |
| ø80, ø100 |
50 to 400 mm/s |
| Cushion |
Rubber bumpers on both ends |
| Lubrication |
Non-lube |
| Stroke length tolerance |
+1.5 mm
0
|
| Standard Stroke |
| Bore size (mm) |
Standard stroke (mm) |
| 12, 16 |
10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250 |
| 20, 25 |
20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400 |
| 32 to 100 |
25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400 |
Mounting
Caution
1. Use cylinders within the piston speed range.
An orifi ce is set for this cylinder, but the piston speed may exceed the operating range if the speed controller is not used. If the cylinder is used outside the operating speed range, it may cause damage to the cylinder and shorten the service life. Adjust the speed by installing the speed controller and use the cylinder within the limited range.
2. Pay attention to the operating speed when the product is mounted vertically.
When using the product in the vertical direction, if the load factor is large, the operating speed can be faster than the control speed of the speed controller (i.e. quick extension). In such cases, it is recommended to use a dual speed controller.
3. Do not scratch or gouge the sliding portion of the piston rod and the guide rod.
Damaged seals etc. will result in leakage or malfunction.
4. Do not dent or scratch the mounting surface of the body and the plate.
The flatness of the mounting surface may not be maintained, which would cause an increase in sliding resistance.
5. Make sure that the cylinder mounting surface has a fl atness of 0.05 mm or less.
If the flatness of the workpieces and brackets mounted on the plate is not appropriate, sliding resistance may increase. If it is diffi cult to maintain a fl atness of 0.05 or less, put a thin shim ring (prepared by user) between the plate and workpiece mounting surface to prevent the sliding resistance from increasing.
Delivery
1. If the products we have in stock, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNT will be normal ways. If you require use of a courier, we can do it.
Serves time
0:00 - 23:59
From Monday to Sunday
After-sale Service
One year quality guarantee Policy
We will check the goods quality before shipment. If there are some unexpected problems happen, we hope to solve the problems with buyer through friendly in the following ways:
1, If it is quality problem, buyer can submit argue within 15days after receiving the goods, buyer must provide photos or video and other evidence to seller for identify.
2, Man-made damaged, buyers take full responsibility.
3, Product quality processing program:
1) The buyer return the products for bad quality reasons for one year (not included those damages coursed by shipping or Man-made damaged ). A 15% restocking fee is assessed for any products returned in "used" condition. And then we will send a new product to buyer and pay for the resend shipping cost.
2) If the goods (total price including shipping is less than 10USD) has quality problems, we will resend a new product in buyer next order; if buyer don't plan to make a new order in the near term, buyer can pay the resend shipping cost and ask to resend a new product. If there is an issue with the products, please contact us– we will solve it as soon as we get your email.
