| Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
 |
| Place of Origin: | China |
| Brand Name: | FESTO |

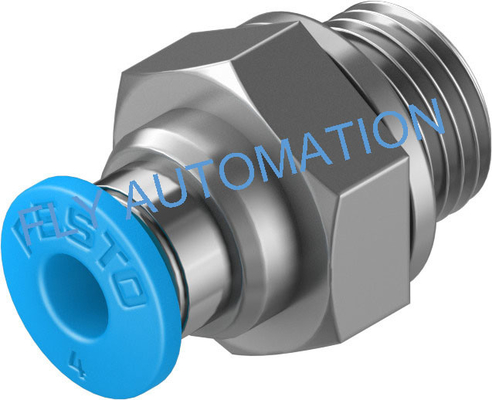

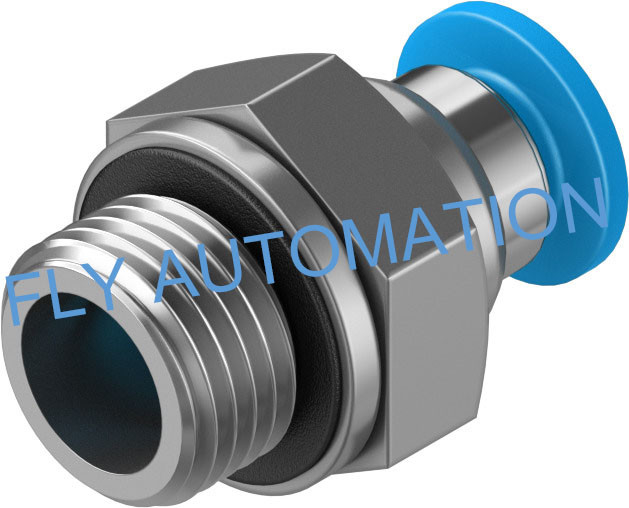

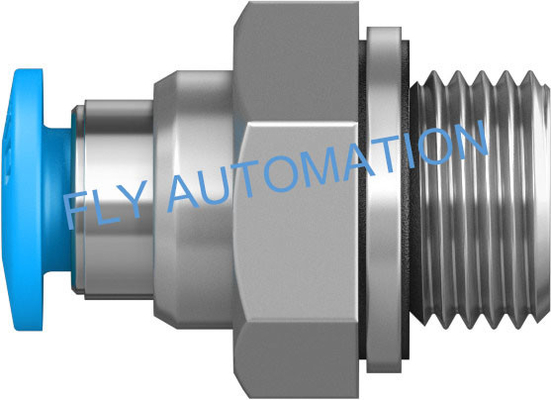

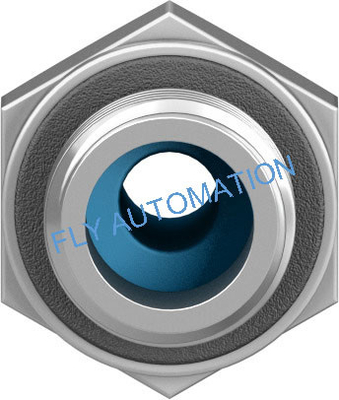

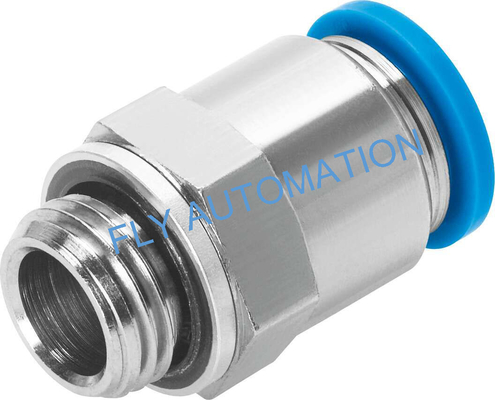

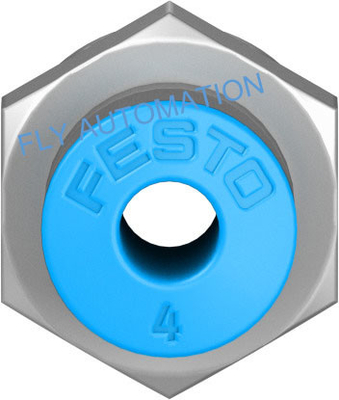

| Model Number: | QS-G1/8-4 |
| Minimum Order Quantity: | 10 PCS |
|---|---|
| Price: | EXW USD2-5 |
| Packaging Details: | plastic bag, carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 6000 pcs per month |
| Nominal Size: | 3 Mm | Order No: | 186095 |
|---|---|---|---|
| Brand: | FESTO | GTIN: | 4052568039141 |
| Specifications: | QS-G1/8-4 | Weight: | 9.1g |
| Port 1: | Male Thread G1/8 | Port 2: | For Tubing Outside Diameter Of 4 Mm |
| High Light: | QS-G1/8-4 Pneumatic Tube Fittings,Male Thread Push In Fitting,186095 Pneumatic Tube Fittings |
||
Nominal size:3 mm
Order no:186095
Brand:FESTO
GTIN: 4052568039141
Specifications:QS-G1/8-4
Weight:9.1g
Pneumatic connection, port 1:Male thread G1/8
Pneumatic connection, port 2:For tubing outside diameter of 4 mm
About product
1.Standard series.
2.Wide range of variants: wide selection for maximum flexibility in standard applications.
3.PBT and nickel-plated brass.
4.Operating media: compressed air, vacuum, (water).
5.Wide range of applications
6.With a variety of combinations of different models, it has a high flexibility in various standard applications Activity.
product detial as follow
| Feature | Value |
| Size | Standard |
| Nominal size | 3 mm |
| Type of seal on screw-in stud | Sealing ring |
| Mounting position | optional |
| Size of pack | 10 |
| Design | Push-pull principle |
| Operating pressure complete temperature range | -0.95 bar ... 6 bar |
| Temperature-dependent operating pressure | -0.95 bar ... 14 bar |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10 °C ... 80 °C |
| Nominal torque | 7 Nm |
| Tolerance for nominal tightening torque | ± 20% |
| Product weight | 9.1g |
| Pneumatic connection, port 1 | Male thread G1/8 |
| Pneumatic connection, port 2 | For tubing outside diameter of 4 mm |
| Colour of release ring | Blue |
| Note on materials | RoHS-compliant |
| Material housing | Brass Nickel-plated |
| Material release ring | POM |
| Material tubing seal | NBR |
| Material tubing clamp component | High-alloy stainless steel |
Another Specifications as follow
| Specifications | Order | GTIN | Weight | EXW Price |
| QS-G1/8-4 | 186095 | GTIN: 4052568039141 | 9.1g | USD2-5 |
| QS-G1/8-6 | 186096 | GTIN: 4052568039158 | 8.3g | USD2-5 |
| QS-G1/8-8 | 186098 | GTIN: 4052568014599 | 13g | USD2-5 |
| QS-G1/4-6 | 186097 | GTIN: 4052568039165 | 17g | USD2-5 |
| QS-G1/4-8 | 186099 | GTIN: 4052568014605 | 15g | USD2-5 |
| QS-G1/4-10 | 186101 | GTIN: 4052568004965 | 21g | USD2-5 |
| QS-G1/4-12 | 186350 | GTIN: 4052568041359 | 39g | USD2-5 |
| QS-G3/8-8 | 186100 | GTIN: 4052568039172 | 22g | USD2-5 |
| QS-G3/8-10 | 186102 | GTIN: 4052568004972 | 22g | USD2-5 |
| QS-G3/8-12 | 186103 | GTIN: 4052568039189 | 33g | USD2-5 |
| QS-G1/2-12 | 186104 | GTIN: 4052568014612 | 39g | USD2-5 |
| QS-G1/2-16 | 186105 | GTIN: 4052568014629 | 51g | USD2-5 |
Instructions
1.Easily select the right connector. Festo provides a reliable solution for every connection. The convenient quick plug connector system includes more than 1000 models of standard and functional connectors.
2.As the connecting accessories of the pneumatic transmission system, good quality and sealing are of great significance for reducing the risk of equipment maintenance and system shutdown and improving the reliability of the machine.
3.Festo is a world famous automation technology supplier. Its excellent product quality, excellent problem solving ability and perfect service are trusted by more than 300,000 industrial customers around the world. Festo's goal is to improve customers' productivity and competitiveness.
4.The air pipe PUN-H and quick connector QS are perfect combinations, which can be used for a variety of applications. Make sure that your system is working continuously, in good condition, and free from faults. The combination is resistant to hydrolysis and can be used in environments with high humidity.
Attention
1,Before you endorse the parcel, please do open the package, and check out whether the items are damaged during the shipping process.
If so, please do refuse to sign for the parcel, the courier will send back the package to our company. Otherwise we are not responsible for this...
2,Any order is welcome; we will give discounts and combined shipping costs for you if you order more or mix order. If you have any questions,
please feel free to contact us.
After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
There are many specifications of connectors, price and delivery time. Welcome to inquire.
