Magnetically Coupled Pneumatic Air Cylinders Rodless Cy1s Series -10℃ - 60℃

Product Details:

Place of Origin:	CHINA
Brand Name:	SMC
Certification:	CE
Model Number:	CDY1S25H-150 CDY1S40H-200

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time:	within 1-10 working days after payment
Payment Terms:	T/T
Supply Ability:	1000 pcs /day

Contact Now

Detailed Product Description

Name:

Cylinder

Model:

CDY1S25H-150 CDY1S40H-200

Rotation:

Aluminium Alloy

Ambient And Fluid Temperature:

-10℃~60℃ (No Freezing)

Highlight:

pneumatic actuator cylinder

smc pneumatic cylinder

Magnetically coupled rodless CY1S Series Aluminum alloy CDY1S25H-150 CDY1S40H-200 cylinder

Warning
1. Be aware of the space between the plates and the slide block.Take sufficient care to avoid getting your hands or fingerscaught when the cylinder is operated.
2. Do not apply a load to a cylinder which is greater than the allowable value stated in the ModelSelection pages.

Mounting And Caution
1. Avoid operation with the external slider fixed to the mounting surface.The cylinder should be operated with the plates fixed to themounting surface.
2. Perform mounting so that the external slider will operate through the entire stroke at the minimum operating pressure.If the mounting surface is not flat, the guides will be warped,increasing the minimum operating pressure and causingpremature wear of the bearings. Therefore, mounting shouldbe performed so that the extemal slider will operate throughthe entire stroke at the minimum operating pressure. Amounting surface with a high degree of flatness is desirable,but in cases where this is not possible, adjust with shims, etc.

Typical Applications
Printing (Tension Control)

Semiconductor (spot welding machine, chip grinding)

Automation Control

Robot

Model

Type	Bearing type	Model	Bore size (mm)	Auto switch model	Adjustment type
Slider type	Slide bearing	CY1S	6, 10, 15, 20, 25, 32, 40	D-A7/A8 D-F7/J7	With adjusting boltWith shock absorbe

Specifications

Fluid	Air
Proof pressure	1.05 MPa
Max. operating pressure	0.7 MPa
Min. operating pressure	0.18 MPa
Ambient and fluid temperature	-10℃~60℃
Piston speed	50 to 400 mm/s
Cushion	Rubber bumper on both ends
Lubrication	Non-lube
Stroke length tolerance	0 to 250st
Mounting orientation	Free

Standard Stroke

Bore Size (mm)	Standard strok(mm)	Maximum manufacyurable stroke(mm)
6	50,100,150,200	300
10	50,100,150,200,250,300	500
15	50,100,150,200,250,300,350,400,450,500	750
20	50,100,150,200,250,300,350,400,450,500 600,700,800	1000
25		1500
32		1500
40	50,100,150,200,250,300,350,400,450,500 600,700,800,900,1000	1500

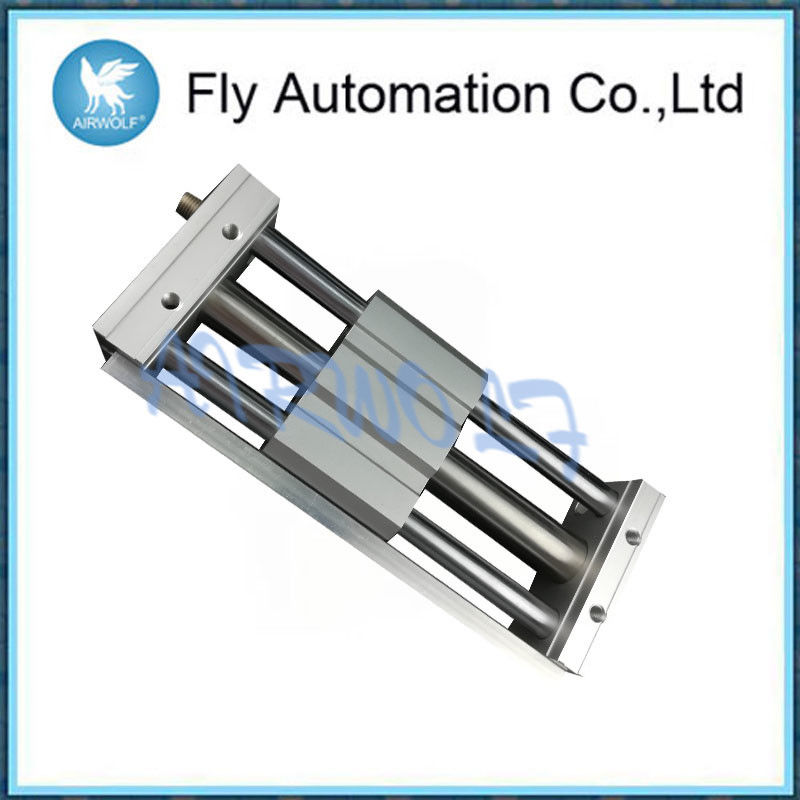

Magnetically Coupled Pneumatic Air Cylinders Rodless Cy1s Series -10℃ - 60℃
