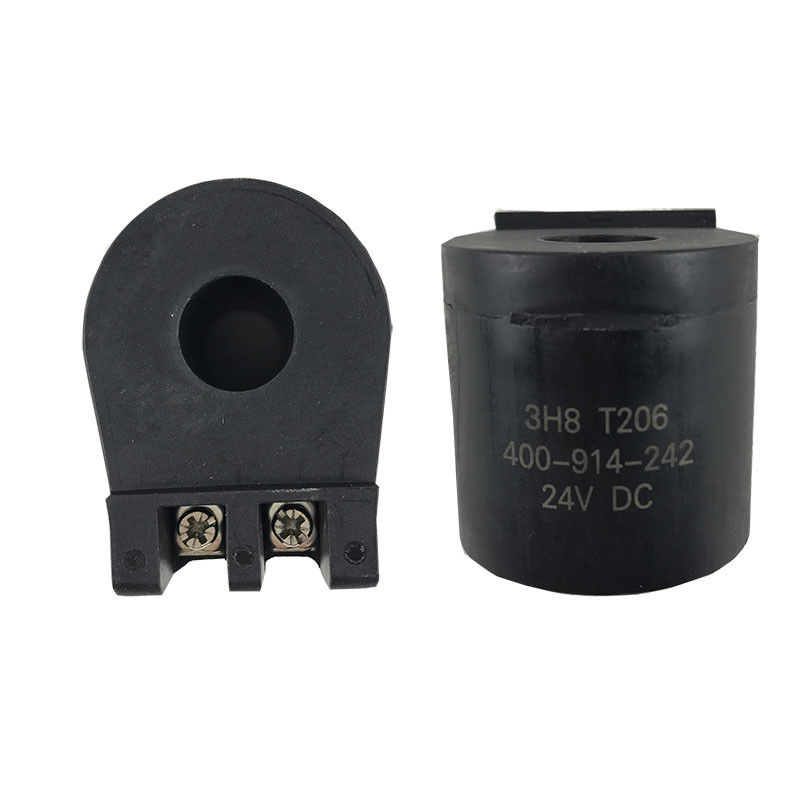

Magnetic Electromagnetic Induction Coil Explosion Proof Magnetic Valve For Coal Chemical Industry

The explosion-proof coil is widely used in coal chemical industry, petrochemical industry, rubber industry, papermaking industry, pharmaceutical industry and other pipelines as the medium of shunt and confluence or flow direction switching device.


Beehive style

If the plane of the coil is not parallel to the rotating plane, but intersects at a certain angle, the coil is called honeycomb coil. The number of times that the conductor bends back and forth in one revolution is often called the number of turns. The advantages of the honeycomb winding method are small volume, small distributed capacitance and large inductance. The honeycomb coil is wound by the honeycomb winding machine. The more the folding point is, the smaller the distributed capacitance is.
The volume of honeycomb coil is small, the potential capacitance is small, the inductance is large, and the Q value is high, so the tuning coil, oscillation coil and high frequency choke coil of many radios are wound in this way, the effect is better than other ways. In the factory, this kind of coil is usually made by honeycomb car.
