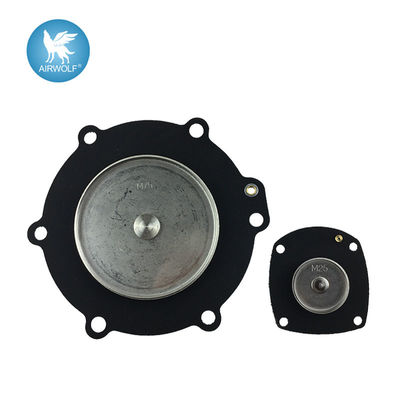

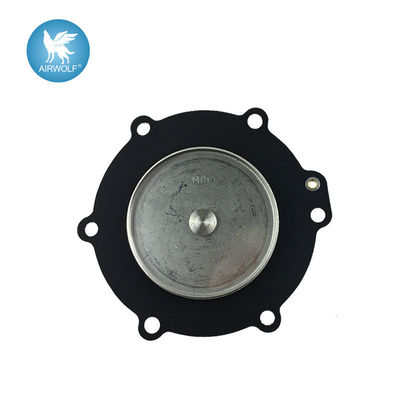

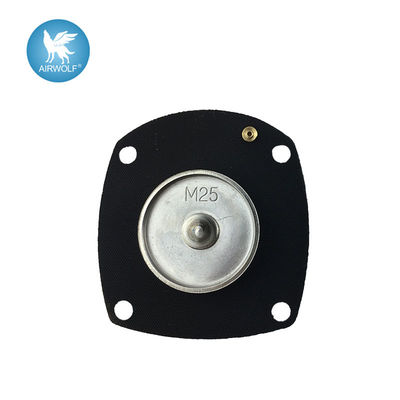

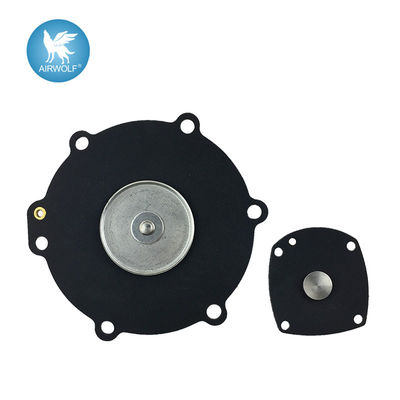

M75 M25 Diaphragm Repair Kit For Turbo Pulse Solenoid Valve

M75 M25 Diaphragm Repair Kit For Turbo Pulse Solenoid Valve

  • M75 M25 Diaphragm Repair Kit For Turbo Pulse Solenoid Valve
  • M75 M25 Diaphragm Repair Kit For Turbo Pulse Solenoid Valve
  • M75 M25 Diaphragm Repair Kit For Turbo Pulse Solenoid Valve
  • M75 M25 Diaphragm Repair Kit For Turbo Pulse Solenoid Valve
  • M75 M25 Diaphragm Repair Kit For Turbo Pulse Solenoid Valve
  • M75 M25 Diaphragm Repair Kit For Turbo Pulse Solenoid Valve
M75 M25 Diaphragm Repair Kit For Turbo Pulse Solenoid Valve
Product Details:
Place of Origin: China
Brand Name: Turbo or OEM
Certification: CE, ISO9001
Model Number: M75,M25 with spring
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time: within 1-30 working days after payment
Payment Terms: T/T in advance,Western Union,Paypal,Credit card
Supply Ability: 1000 pcs
Contact Now
Detailed Product Description
Model: M75 Make: Turbo, OEM
Material: NBR, SS304 Temperature Range: STD:-40℃ To 60℃, Fluororubber:-30℃ To 200℃
High Light:

M25 Diaphragm Repair Kit

,

M75 Diaphragm Repair Kit

,

Pulse Solenoid Valve Diaphragm Kit

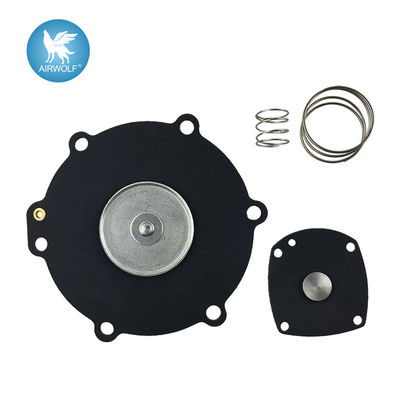

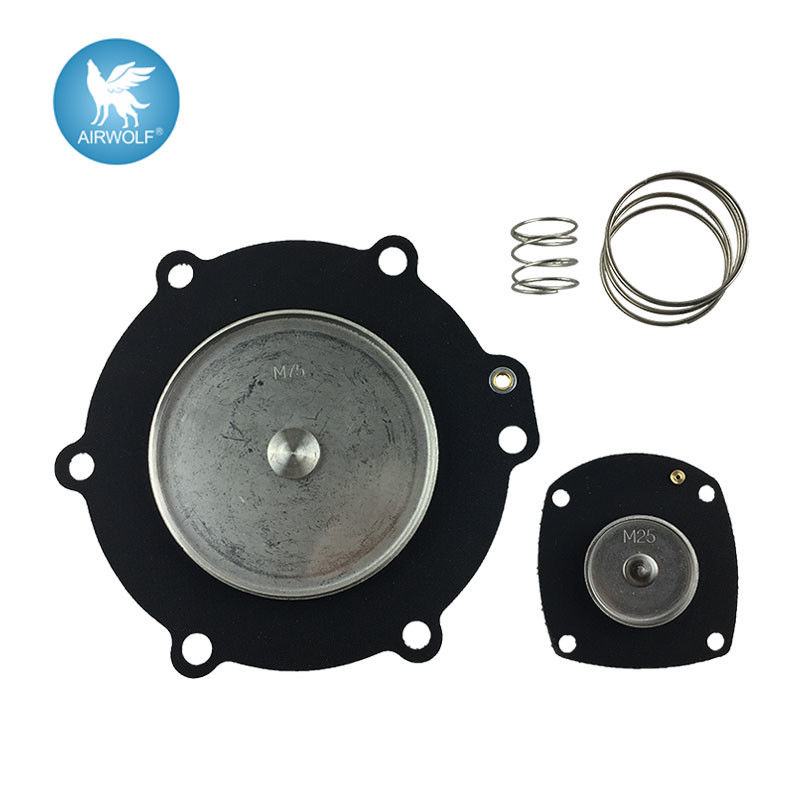

M75 M25 Diaphragm Repair Kits For Turbo pulse solenoid valve With SS spring

The diaphragms are repair kits for the Turbo pusle valves: FP65,  FM65 , SQP75-IN, SQM75-IN, SQP100-IN, SQM100-IN



Technical Parameter
Model: M75 M25
Working-pressure: 0.35--0.85MPa
Ambient Temperature: -5 ~55℃ (fluororubber:-20~232℃)
Relative Humidity: < 85 %
Diaphragm Life: Over One Million cycles
Connection Port: G3"



Ordering Code Fitted Valve Code Valve port
size
Material
M20,M25 FP20 ,FM20, FP25 ,
FM25 ,DP20, DM20,
DP25, DM25, EP20,
EM20, EP25, EM25,
SQP20, SQM20, SQP25,
SQM25, FDP20, FDM20,
FDP25, FDM25,
3/4", 1" Nitrile/Buna
M40 and M25 FP40, FM40 , DP40,
DM40 , EP40, EM40
1 1/2" Nitrile/Buna
M50 and M25 FP55, FM55 , SQP50,
SQM50, SQP60,SQM60
2" Nitrile/Buna
M75 and M25 FP65, FM65 , SQP75-IN,
SQM75-IN, SQP100-IN,
SQM100-IN
3" Nitrile/Buna



M75 M25 Diaphragm Repair Kit For Turbo Pulse Solenoid ValveM75 M25 Diaphragm Repair Kit For Turbo Pulse Solenoid Valve

Description

It's a normal closed double diaphragm dust removal pulse valve. These valves, used for cleaning filter elements in air filtration systems, are specifically designed for flat surfaces like square header tanks and flanged tank. Like traditional model, with threaded and coupling connection, activating divided into two types:
Integrated: Electronic control type
Remote: Air control type
A full range of accessory items are available including pilots, coils, diaphragm, spring.

Advantages:
1. Small resistance, good circulation, expanding the scope of use of gas pressure.
2. Super Long Life.

Materials:
Valve body: Aluminium Alloy
Pilot: Brass
Coil: Plastic
Seats & Seals: TPE

Turbo has a complete range of pulse valves for dust collector filters able to meet all customers technical requirement.
Turbo pulse valves are design , with a flexible and long life diaphragm for a fast opening and closing operation.



The installment introduction:
1. First, Confirm the pulse valve in good condition and then installed
2. Pulse valve will be installed directly the outer wall of flange of gas manifold. The spray pipe across the gas manifold. According to the drawing and manual, the pulse valve matching appropriate spray pipe and installation. To avoid the valve install in the air manifold bottom. If the pulse valve matched trachea and connector, the connector will be used for sealing purpose only. It can not as structural support components. It can not rely on the straight connector fixed spray torch and package. The spray pipe and air manifold must be fixed independent.
3. To tighten the hard nut, the maximum torque of 20 N*m.Tighten the trachea, torsion of 20 N*m.
4. The connection control wire needs connect of every electric control valve seat. Pay attention to the line adown to prevent rain waterproof. Or through the joint and nylon pipe, it will connect the pulse valve and electromagnetic assembly boxes of nylon pipe connection.
5. To ensure that provide compressed air clean and dry. The air manifold system provides moderate pressure and check for leaks installation. ( it can brush on soap and water, check whether the interface is bubble). Pressure was carried out on the air bag inflated (pressure of the valve is around 0.03 ~ 0. 86 mpa), recommend for air pressure 0.8 mpa maximum
6. Testing the pulse valve blowing, listening all the pilot valve whether it is normal operation and whether the pulse blowing sound is clear.



Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.

Competitive Advantage



Our product features Our Services Guarantee:
1) Competitive price 1) Prompt respond (Reply with 24 hours)
2) Good quality 2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging 3) Registration support.
4) Produce according to Customers’ instruction 4) Photos/videos are available during production.
5) None delay shipment 5) Loading inspection, and send loading photos before shipment.



After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.


Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.



FAQ

1. When your company establish?
YIKANG AUTOMATION Was established in 2010, we have been working in agrochemical field for about 26 years, we have a professional production of process, committed to providing customers with the most satisfactory service.


2. Are you a trader or manufacturer? Do you have factory?
We are a solenoid valve manufacturer, we have the ability of mass production . we have our own developing and designing team, which ensure our own technological and specific products for customers.

3. Where’s your factory located? Can we visit your factory?
Our company is in Xikou town,Fenghua city,Zhejiang Province, China,Which is near by Ningbo city,
Customers will be always welcomed to visit our company and our factories.Please contact us your schedule,we will arrange to pick up you and visit our factory.

4. How do you make the quality guarantee?
We have our own quality control center, we have advanced equipments for the inspections. We can guarantee every product will be tested after production.

5. Can you support the specific productions?
We can design and develop the products of customer's requirement, if you have the specific products, please send us a sample, we will develop it for you.

6. What's the transportation service?
Usually, we will be according your address, choose the fastest and cheapest way, the DHL,TNT,Fedex or China post express all can support.
