Place of Origin: | China |
Brand Name: | FESTO |

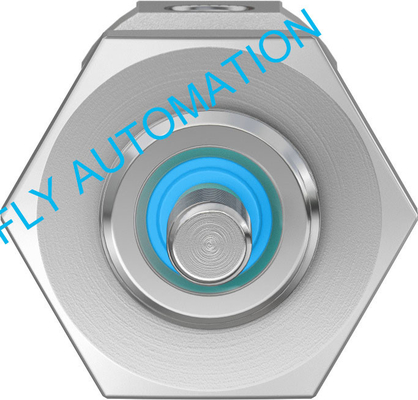

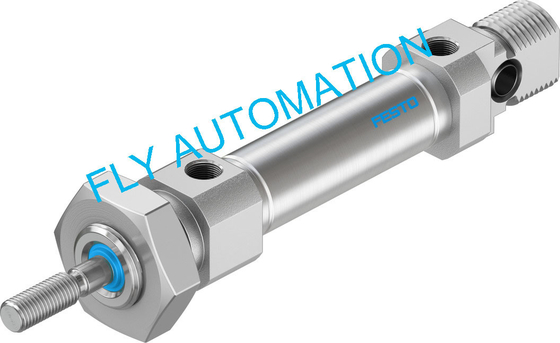

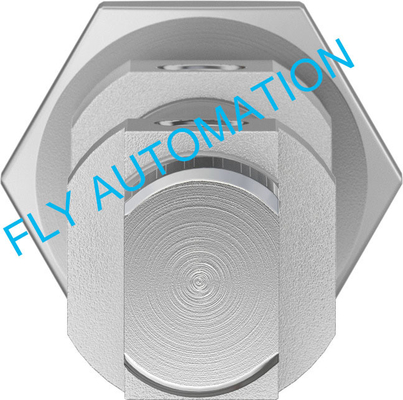

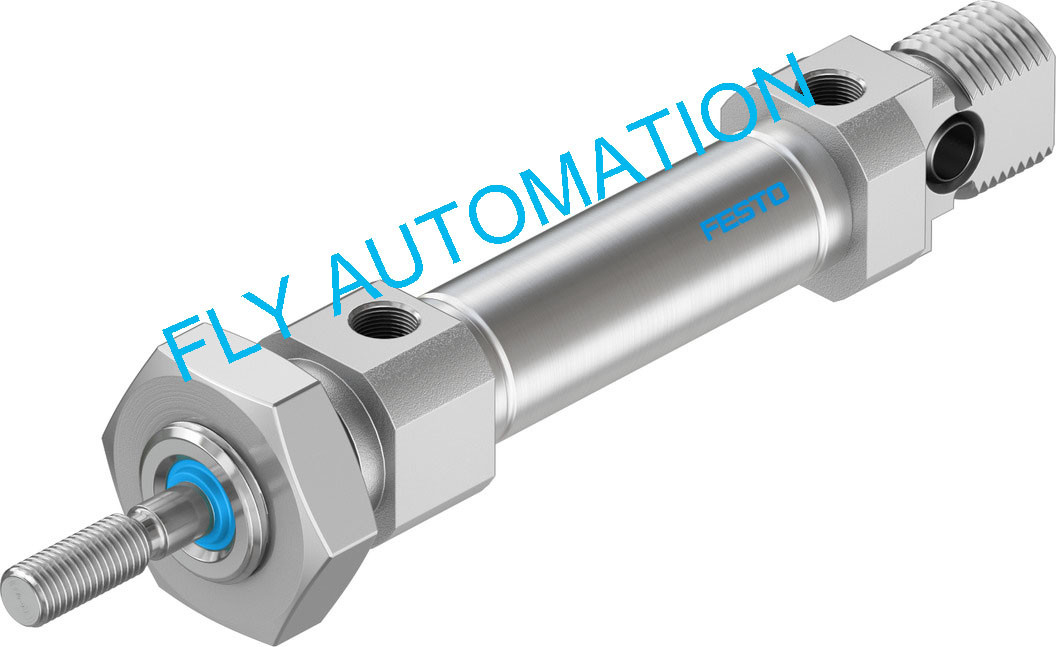

Model Number: | DSNU-10-10-P-A |
Minimum Order Quantity: | 1pc |
---|---|
Price: | EXW USD20-25 |
Packaging Details: | plastic bag, carton,OPP bag |
Delivery Time: | 7-10 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 100 pcs per month |
Type: | DSNU-10-10-P-A | Part No: | 19183 |
---|---|---|---|
GTIN: | 4052568003029 | Brand: | FESTO |
Stroke: | 10 Mm | Piston Rod Thread: | M4 |
High Light: | M4 Pneumatic Air Cylinders,10mm Compact Cylinder,Single Acting Pneumatic Cylinder |
About product
1.Very durable cylinder based on ISO 6432 with self-adjusting end-position cushioning and extensive accessories.
2.Wide range of variants for customised applications.
3.Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes.
4.For position sensing.
5.Good running performance and long service life.
6.Piston rod with fmale thread.
Technical Data
Size | 7 |
Stroke | 5 mm |
Cushioning | Self-adjusting |
Mounting position | optional |
Position detection | Without |
Symbol | 00991497 |
Max. impact speed | 3 m/s |
Reset time at room temperature | 0.2 s |
Reset time at min. ambient temperature1 | 1s |
Mode of operation | Single-acting Pushing |
Corrosion resistance class CRC | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | -10°C-80°C |
Cushioning length | 5 mm |
Max. stop force | 300 N |
Max. energy consumption per stroke | 2 J |
Max. energy consumption per hour | 12000 J |
Max. residual energy | 0.01 J |
Reset force | 1.2 N |
Product weight | 17 g |
Type of mounting | Via lock nut |
Note on materials | RoHS-compliant |
Material seals | NBR |
Material housing | High-alloy steel |
Material piston rod | High-alloy steel |
Another stroke as follow
Type | Order no | GTIN | Price |
DSNU-10-10-P-A | 19183 | 4052568003029 | USD20-25 |
DSNU-10-15-P-A | 1908251 | 4052568108328 | USD20-25 |
DSNU-10-20-P-A | 1908252 | 4052568108335 | USD20-25 |
DSNU-10-25-P-A | 19184 | 4052568003036 | USD20-25 |
DSNU-10-30-P-A | 1908253 | 4052568108342 | USD20-25 |
DSNU-10-40-P-A | 19185 | 4052568003043 | USD20-25 |
DSNU-10-50-P-A | 19186 | 4052568003050 | USD20-25 |
DSNU-10-60-P-A | 1908254 | 4052568108359 | USD20-25 |
DSNU-10-80-P-A | 19187 | 4052568009403 | USD20-25 |
DSNU-10-100-P-A | 19188 | 4052568066956 | USD20-25 |
Advantage
1.FESTO's profile cylinder and pull rod cylinder are standard cylinders conforming to ISO15552 With self-adjusting throttle terminal position buffer.
2.The debugging time is saved, and the buffer can best adapt to load and speed changes.
3.It has the same installation interface and the same technical data,The installation method of the cylinder sensor is different.
4.The cylinder sensor is firmly inserted into the groove of the material pipe.
P cushioning
There are so many type ,please call me immediately!
