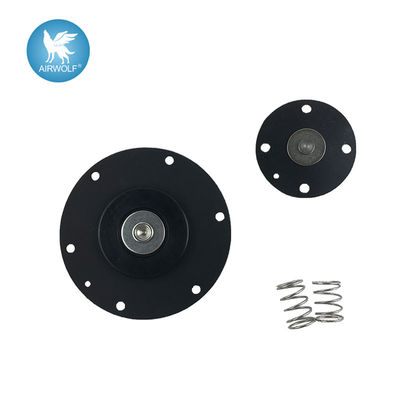

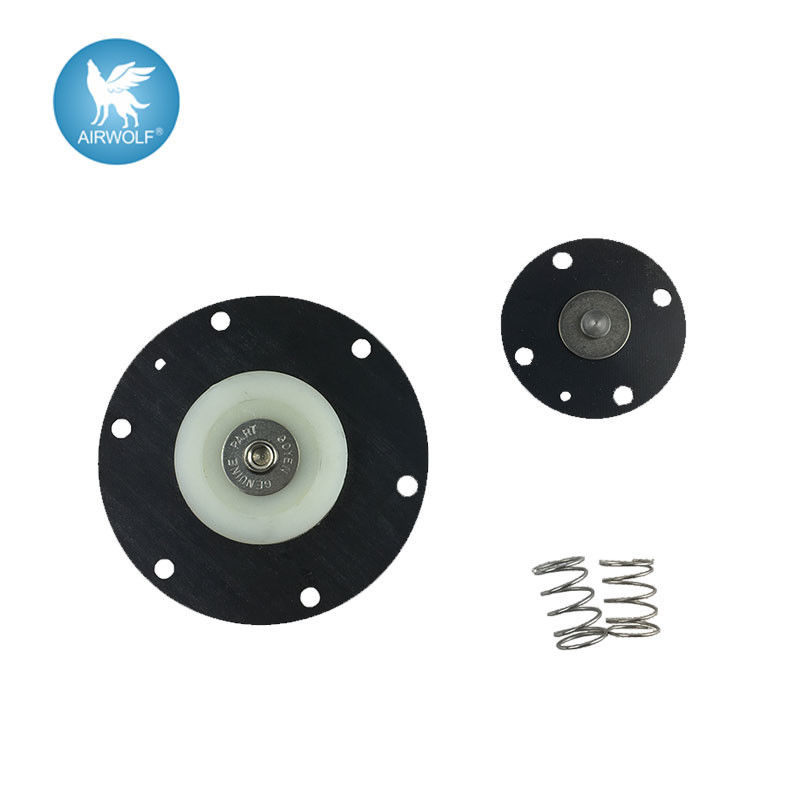

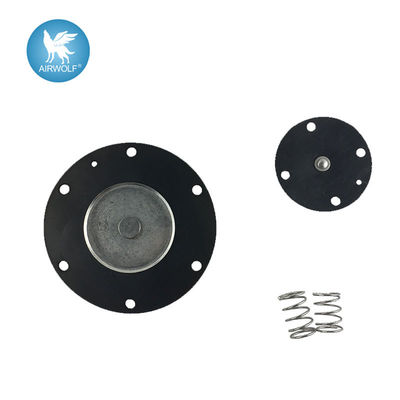

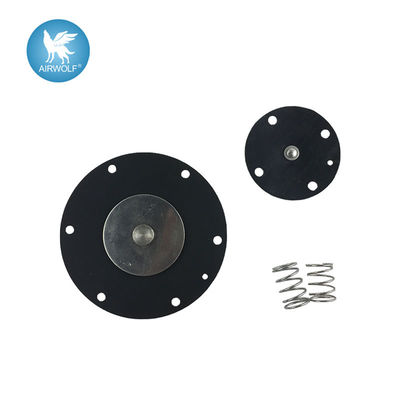

K4007 FKM CA40DD CA40MM CA40T fluororubber Diaphragm Seal

K4007 FKM CA40DD CA40MM CA40T pulse solenoid valve diaphragm seals kit

Ordering Code: K4007 (M1156)

Material: FKM

FKM material diaphragm working temperature: -20~200°C

K4007 is used for CA40T CA40DD CA40MM RCA40T RCA40DD RCA40MM type pulse valve

Quick Details :

Welcome cooperate with new and old customers future!

Installation

For your safety do not pressurise system until all valves and pipes are fully secured. Do not attempt to remove a fitted valve while system is under pressure.
1. Prepare supply and blowtube pipes* to suit valve type and specification. Avoid installing valves underneath the tank.
2. Ensure tank and pipes are free from dirt, rust or other particulate.
3. Ensure supply air is clean and dry.
4. Mount valves to inlet pipes (or flanges, tighten bolts to 10Nm) and blowtube to valves, ensuring no excess thread sealant can enter the valve itself. Ensure blowtube is fully inserted into the valve outlet.
5. Tanks and pipes must be independently restrained from FS and DD valves.
6. Connect RCAC pilot port to remote pilot valve, or install MIP/3DS screw in pilot valve.
7. Apply moderate pressure to system and check for installation leaks.
8. Fully pressurise system.
9. Test fire and listen for proper actuation and crisp pulse noise.
Valve is not a structural component. Do not rely on valve to retain tanks or pipe. Refer to Camlock product specifications for installation details.
