| Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
 |
| Place of Origin: | China |
| Brand Name: | FESTO |

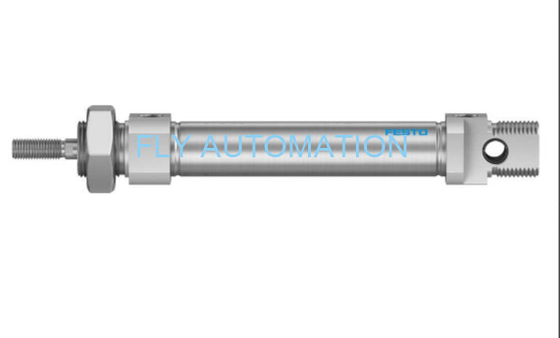

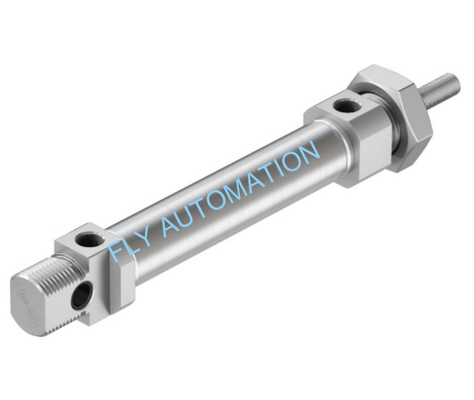

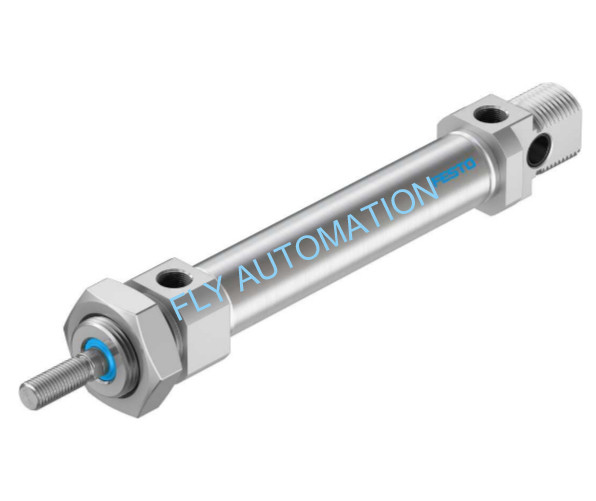

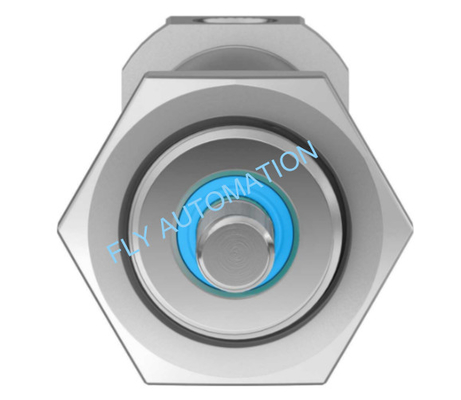

| Model Number: | DSNU-20-70-PPS-A |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD40-50 |
| Packaging Details: | plastic bag, carton，OPP bag |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 100 pcs per month |
| Brand: | FESTO | Type: | DSNU-20-70-PPS-A |
|---|---|---|---|
| Part No: | 1908303 | GTIN: | 4052568108830 |
| Material Seals: | NBR TPE-U(PU) | Material Piston Rod: | High-alloy Stainless Steel |
| High Light: | 1908303 Pneumatic Air Cylinders,Alloy Stainless Steel Pneumatic Air Cylinder,Cushioning PPS Compact Cylinder |
||
About product
Cushioning types:Cushioning PPS.
Mode of operation:The drive has self-adjusting end-position cushioning.
Application:Small to medium loads,Low to medium speeds,Medium impact energies.
Advantages:No adjustment required,Saves time,Powerful.
Technical Data
| Stroke | 70mm |
| Piston diameter | 20 mm |
| Piston rod thread | M8 |
| Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | optional |
| Conforms to standard | CETOP RP 52 P ISO 6432 |
| Piston-rod end | Male thread |
| Variants | Piston rod at one end |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -20°C-80°C |
| Cushioning length | 15 mm |
| Basic weight for 0 mm stroke | 186.8g |
| Additional weight per 10 mm stroke | 7.2 g |
| Type of mounting | With accessories |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy Colourless anodised |
| Material seals | NBR TPE-U(PU) |
| Material piston rod | High-alloy stainless steel |
| Material cylinder barrel | High-alloy stainless steel |
Another stroke as follow
| Type | Order no | GTIN | Price |
| DSNU-20-10-PPS-A | 1908297 | 4052568108779 | USD40-50 |
| DSNU-20-15-PPS-A | 1908298 | 4052568108786 | USD40-50 |
| DSNU-20-20-PPS-A | 1908299 | 4052568108793 | USD40-50 |
| DSNU-20-25-PPS-A | 559271 | 4052568097226 | USD40-50 |
| DSNU-20-30-PPS-A | 1908300 | 4052568108809 | USD40-50 |
| DSNU-20-35-PPS-A | 1908301 | 4052568108816 | USD40-50 |
| DSNU-20-40-PPS-A | 559272 | 4052568097233 | USD40-50 |
| DSNU-20-50-PPS-A | 559273 | 4052568097240 | USD40-50 |
| DSNU-20-60-PPS-A | 1908302 | 4052568108823 | USD40-50 |
| DSNU-20-70-PPS-A | 1908303 | 4052568108830 | USD40-50 |
| DSNU-20-80-PPS-A | 559274 | 4052568097257 | USD40-50 |
| DSNU-20-100-PPS-A | 559275 | 4052568097264 | USD40-50 |
| DSNU-20-125-PPS-A | 559276 | 4052568097271 | USD40-50 |
| DSNU-20-150-PPS-A | 1908304 | 4052568108847 | USD40-50 |
| DSNU-20-160-PPS-A | 559277 | 4052568097288 | USD40-50 |
| DSNU-20-200-PPS-A | 559278 | 4052568097295 | USD40-50 |
| DSNU-20-250-PPS-A | 559279 | 4052568205577 | USD40-50 |
| DSNU-20-300-PPS-A | 559280 | 4052568205584 | USD40-50 |
| DSNU-20-320-PPS-A | 559281 | 4052568205591 | USD40-50 |
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNT will be normal ways. If you require use of a courier, we can do it.
There are so many kinds. Hurry to call me!
