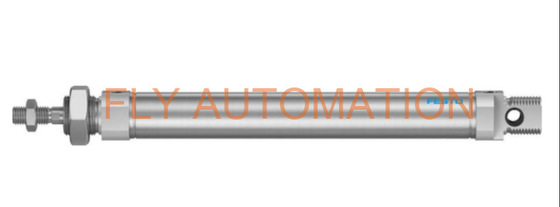

ISO DSNU-25-160-PPV-A Pneumatic Air Cylinders 19250 GTIN4052568003470

ISO DSNU-25-160-PPV-A Pneumatic Air Cylinders 19250 GTIN4052568003470

  • ISO DSNU-25-160-PPV-A Pneumatic Air Cylinders 19250 GTIN4052568003470
  • ISO DSNU-25-160-PPV-A Pneumatic Air Cylinders 19250 GTIN4052568003470
  • ISO DSNU-25-160-PPV-A Pneumatic Air Cylinders 19250 GTIN4052568003470
ISO DSNU-25-160-PPV-A Pneumatic Air Cylinders 19250 GTIN4052568003470
Product Details:
Place of Origin: China
Brand Name: FESTO
Model Number: DSNU-25-160-PPV-A
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: EXW USD40-50
Packaging Details: plastic bag, carton，OPP bag
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100 pcs per month
Contact Now
Detailed Product Description
Part No: 19250 Brand: FESTO
Type: DSNU-25-160-PPV-A GTIN: 4052568003470
Pneumatic Connection: G1/8 Material Cover: Wrought Aluminium Alloy Colourless Anodised
Highlight:

Pneumatic Air Cylinders 19250

,

Aluminium Alloy Pneumatic Air Cylinders

,

G1/8 Double Acting Pneumatic Cylinder

FESTO ISO cylinder DSNU-25-160-PPV-A 19250 GTIN4052568003470 Pneumatic Air Cylinders

About product

1.A variety of cylinder mounting accessories are available and flexible.

2.The front and rear end covers of the cylinder have a buffering adjustment function, which makes the cylinder piston run steadily at both ends without a sense of impact.

3.Suitable for various applications.

4.The common points of all round cylinders are excellent working performance, long service life and quick and convenient installation.



Technical Data

Stroke 160 mm
Piston diameter 25 mm
Piston rod thread M10x1.25
Cushioning Pneumatic cushioning, adjustable at both ends
Mounting position optional
Conforms to standard CETOP RP 52 P ISO 6432
Piston-rod end Male thread
Design Piston Piston rod Cylinder barrel
Position detection Via proximity switch
Symbol 991235
Variants Piston rod at one end
Mode of operation Double-acting
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Cleanroom class Class 6 according to ISO 14644-1
Ambient temperature -20°C-80°C
Cushioning length 17 mm
Basic weight for 0 mm stroke 238 g
Additional weight per 10 mm stroke 11 g
Type of mounting With accessories
Pneumatic connection G1/8
Note on materials RoHS-compliant
Material cover Wrought aluminium alloy Colourless anodised
Material seals NBR TPE-U(PU)
Material piston rod High-alloy stainless steel
Material cylinder barrel High-alloy stainless steel



Another stroke as follow

Type Order no GTIN Price
DSNU-25-10-PPV-A 1908312 4052568249137 USD40-50
DSNU-25-15-PPV-A 1908313 4052568249144 USD40-50
DSNU-25-20-PPV-A 1908314
4052568249151
 USD40-50
DSNU-25-25-PPV-A 33975 4052568009762 USD40-50
DSNU-25-30-PPV-A 1908315 4052568249168 USD40-50
DSNU-25-35-PPV-A 1908316 4052568249175 USD40-50
DSNU-25-40-PPV-A 19245 4052568003425 USD40-50
DSNU-25-50-PPV-A 19246 4052568003432 USD40-50
DSNU-25-60-PPV-A 1908317 4052568249182 USD40-50
DSNU-25-70-PPV-A 1908318 4052568249199 USD40-50
DSNU-25-80-PPV-A 19247 4052568003449 USD40-50
DSNU-25-100-PPV-A 19248 4052568003456 USD40-50
DSNU-25-125-PPV-A 19249 4052568003463 USD40-50
DSNU-25-150-PPV-A 1908319 4052568249205 USD40-50
DSNU-25-160-PPV-A 19250 4052568003470 USD40-50
DSNU-25-200-PPV-A 19251 4052568003487 USD40-50
DSNU-25-250-PPV-A 19252 4052568003494 USD40-50
DSNU-25-300-PPV-A 19253 4052568003500 USD40-50
DSNU-25-320-PPV-A 34721 4052568010072 USD40-50


Attention

1,Before you endorse the parcel, please do open the package, and check out whether the items are damaged during the shipping process.

If so, please do refuse to sign for the parcel, the courier will send back the package to our company. Otherwise we are not responsible.

2,Any order is welcome; we will give discounts and combined shipping costs for you if you order more or mix order. If you have any questions, please feel free to contact us.



The specifications are complete. I have everything you want​,please call me immediately!
