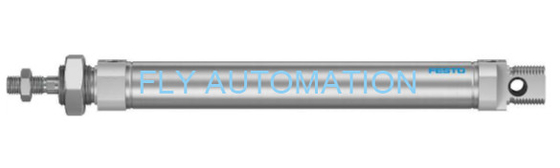

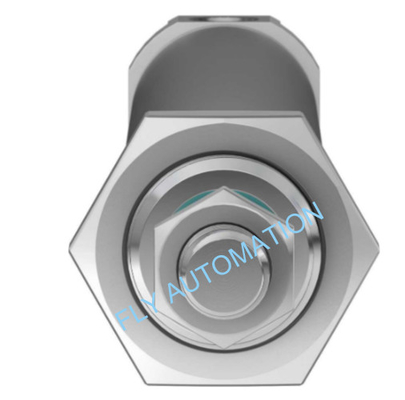

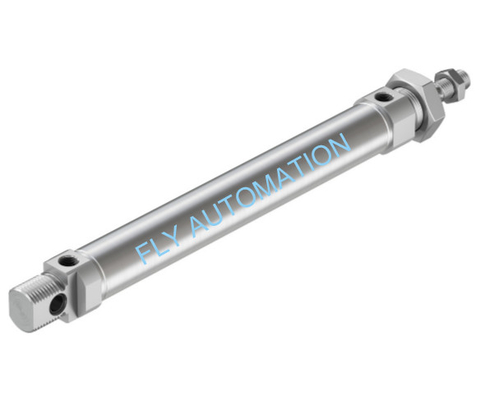

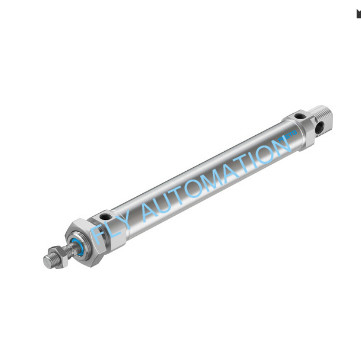

ISO DSNU-25-160-PPS-A 17mm Pneumatic Air Cylinders 559288 GTIN4052568205645

ISO DSNU-25-160-PPS-A 17mm Pneumatic Air Cylinders 559288 GTIN4052568205645

  • ISO DSNU-25-160-PPS-A 17mm Pneumatic Air Cylinders 559288 GTIN4052568205645
  • ISO DSNU-25-160-PPS-A 17mm Pneumatic Air Cylinders 559288 GTIN4052568205645
  • ISO DSNU-25-160-PPS-A 17mm Pneumatic Air Cylinders 559288 GTIN4052568205645
  • ISO DSNU-25-160-PPS-A 17mm Pneumatic Air Cylinders 559288 GTIN4052568205645
ISO DSNU-25-160-PPS-A 17mm Pneumatic Air Cylinders 559288 GTIN4052568205645
Product Details:
Place of Origin: China
Brand Name: FESTO
Model Number: DSNU-25-160-PPS-A
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: EXW USD40-50
Packaging Details: plastic bag, carton，OPP bag
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100 pcs per month
Contact Now
Detailed Product Description
Brand: FESTO Type: DSNU-25-160-PPS-A
Part No: 559288 GTIN: 4052568205645
Cushioning Length: 17mm Type Of Mounting: With Accessories
Highlight:

17mm Pneumatic Air Cylinders

,

Self Adjusting Pneumatic Air Cylinders

,

Male Thread Compact Air Cylinder

FESTO ISO cylinder DSNU-25-160-PPS-A 559288 GTIN4052568205645 Pneumatic Air Cylinders

About product

Self adjusting buffer PPS saves assembly time.

Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes.

Wide range of variants for customised applications.

Good running performance and long service life.



Technical Data

Stroke 160 mm
Piston diameter 25 mm
Piston rod thread M10x1.25
Cushioning Self-adjusting pneumatic end-position cushioning
Mounting position optional
Conforms to standard CETOP RP 52 P ISO 6432
Piston-rod end Male thread
Variants Piston rod at one end
Mode of operation Double-acting
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Cleanroom class Class 6 according to ISO 14644-1
Ambient temperature -20°C-80°C
Cushioning length 17mm
Basic weight for 0 mm stroke 238g
Additional weight per 10 mm stroke 11g
Type of mounting With accessories
Pneumatic connection G1/8
Note on materials RoHS-compliant
Material cover Wrought aluminium alloy Colourless anodised
Material seals NBR TPE-U(PU)
Material piston rod High-alloy stainless steel
Material cylinder barrel High-alloy stainless steel


Another stroke as follow

Type Order no GTIN Price
DSNU-25-10-PPS-A 1908320 4052568108922 USD40-50
DSNU-25-15-PPS-A 1908321 4052568108939 USD40-50
DSNU-25-20-PPS-A 1908322 4052568108946 USD40-50
DSNU-25-25-PPS-A 559282 4052568097301 USD40-50
DSNU-25-30-PPS-A 1908323 4052568108953 USD40-50
DSNU-25-35-PPS-A 1908324 4052568108960 USD40-50
DSNU-25-40-PPS-A 559283 4052568097318 USD40-50
DSNU-25-50-PPS-A 559284 4052568205607 USD40-50
DSNU-25-60-PPS-A 1908325 4052568249212 USD40-50
DSNU-25-70-PPS-A 1908326 4052568249229 USD40-50
DSNU-25-80-PPS-A 559285 4052568205614 USD40-50
DSNU-25-100-PPS-A 559286 4052568205621 USD40-50
DSNU-25-125-PPS-A 559287 4052568205638 USD40-50
DSNU-25-150-PPS-A 1908327 4052568249236 USD40-50
DSNU-25-160-PPS-A 559288 4052568205645 USD40-50
DSNU-25-200-PPS-A 559289 4052568205652 USD40-50
DSNU-25-250-PPS-A 559290 4052568205669 USD40-50
DSNU-25-300-PPS-A 559291 4052568205676 USD40-50
DSNU-25-320-PPS-A 559292 4052568205683 USD40-50



Competitive Advantage
Our product features: Our Services Guarantee:
1) Competitive price 1) Prompt respond (Reply with 24 hours)
2) Good quality 2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging, 3) Registration support.
4) Produce according to Customers’ instruction 4) Photos/videos are available during production.
5) None delay shipment
5) Loading inspection, and send loading photos before shipment.



There are so many kinds. Hurry to call me!
