| Place of Origin: | China |
| Brand Name: | FESTO |
| Model Number: | CRSMEO-4-K-LED-24 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD50-60 |

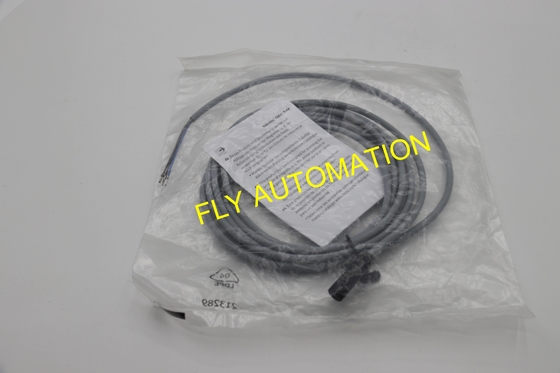

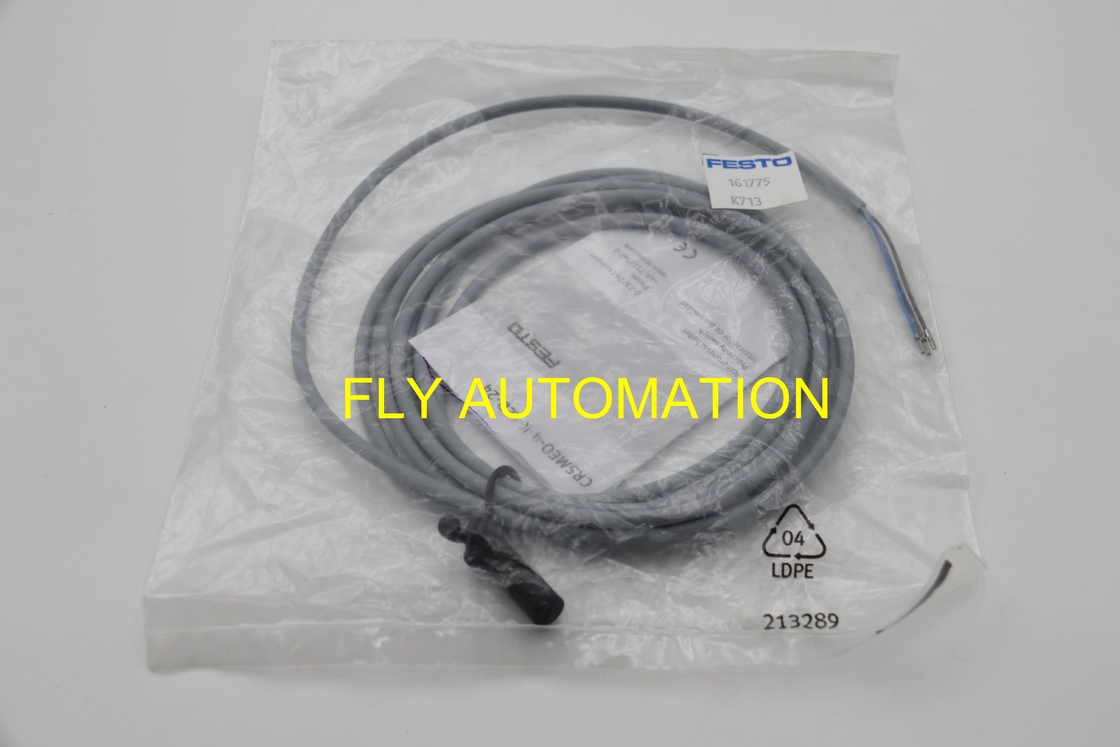

| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 7-10working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500 pcs per month |

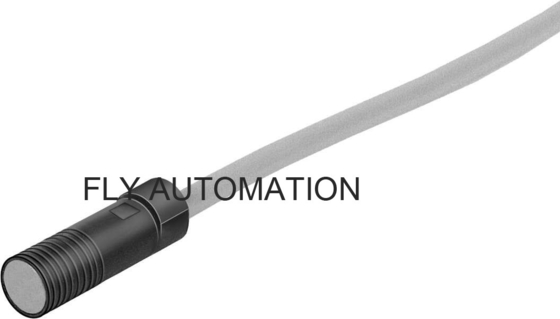

| Type: | CRSMEO-4-K-LED-24 | Brand: | FESTO |
|---|---|---|---|
| Part No: | 161775 | Ambient Temperature: | -20°C-60°C |
| Switching Status Indication: | Yellow LED | Degree Of Protection: | IP67 |
| High Light: | IP67 Festo Proximity Sensor,161775 Festo Proximity Sensor,CRSMEO-4-K-LED-24 |
||
About product
Cable designation:Round
Symbol:'00991145
Note on materials: RoHS-compliant
Material housing:PP
Cable sheath colour:grey
Housing colour:Black
Technical Data
| Cable designation | Round |
| Symbol | 00991145 |
| Approval | RCM trademark |
| Note on materials | RoHS-compliant |
| Measured variable | Position |
| Measuring principle | Magnetic reed |
| Ambient temperature | -20°C-60°C |
| Repetition accuracy | 0.2 mm |
| Switching output | Contacting, bipolar |
| Switching element function | N/O contact |
| Max. output current | 500 mA |
| Connection outlet orientation | In-line |
| Cable length | 2.5 m |
| Cable sheath colour | grey |
| Material cable sheath | TPE-O |
| Type of mounting | With accessories |
| Product weight | 70 g |
| Housing colour | Black |
| Material housing | PP |
| Switching status indication | Yellow LED |
| Degree of protection | IP67 |
| LABS (PWIS) conformity | VDMA24364-B2-L |
There are many models . Please contact me!
