| Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
 |
| Place of Origin: | China |
| Brand Name: | FESTO |
| Model Number: | MA-40-10-1/8-EN |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD20-30 |
| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 7-10working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 pcs per month |
| Type: | MA-40-10-1/8-EN | Part No: | 162835 |
|---|---|---|---|
| Brand: | FESTO | Nominal Size Of Pressure Gauge: | 40 |
| Degree Of Protection: | IP43 | Weight: | 60 G |
| High Light: | IP43 Pressure Gauge,Brass Double Scale Bar Pressure Gauge,40mm Pressure Indicator |
||
About product
1.Designs based on DIN EN 837-1, available with red-green range.
2.Pneumatic connection via R, G or metric thread, push-in connector.
3.Display units bar, psi, MPa.
Technical Data
| Indicating range | 0 bar ... 10 bar |
| Indicating range | 0 psi ... 145 psi |
| Symbol | 00991463 |
| Conforms to standard | EN 837-1 |
| Nominal size of pressure gauge | 40 |
| Design | Bourdon tube pressure gauge |
| Type of mounting | In-line installation |
| Operating medium | Inert gases Neutral fluids |
| Operating pressure | 0 MPa ... 1 MPa |
| Operating pressure | 0 bar ... 10 bar |
| Operating pressure | 0 psi ... 145 psi |
| Alternating load factor | 0.66 |
| Measurement accuracy class | 2.5 |
| Degree of protection | IP43 |
| Media temperature | -20°C-60°C |
| Ambient temperature | -20°C-60°C |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Note on materials | RoHS-compliant |
| Position of connection | Centred, rear side |
| Pneumatic connection | R1/8 |
| Material in contact with the medium | Brass |
| Material screw-in stud | Brass |
| Material housing | PBT |
| Material screen | PS |
| Housing colour | Black |
| Product weight | 60 g |
| Note on operating and pilot medium | No acetylene No oxygen |

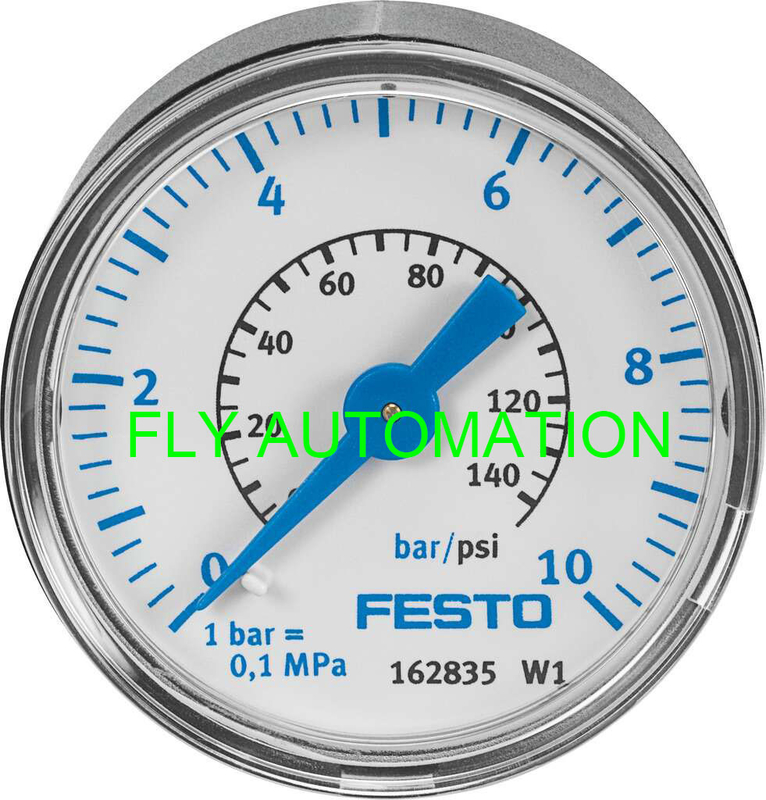

| Scale | Double scale Bar (outside scale) psi (inner scale) |
Another size as below
| TYPE | PART NO |
| MA-40-10-1/8-EN | 162835 |
| MA-40-16-1/8-EN-DPA | 529046 |
| MA-40-25-1/8-EN | 526167 |
| MA-40-6-R1/4-EN | 187078 |
| MA-40-10-R1/4-EN | 187079 |
| MA-40-16-R1/4-EN | 187080 |
| MA-40-6-G1/4-EN | 183899 |
| MA-40-10-G1/4-EN | 183900 |
| MA-40-16-G1/4-EN | 183901 |
| MA-40-25-G1/4-EN | 183902 |
| MA-50-2.5-1/4-EN | 162837 |
| MA-50-10-1/4-EN | 162838 |
| MA-50-16-1/4-EN | 162839 |
| MA-63-1-1/4-EN | 162844 |

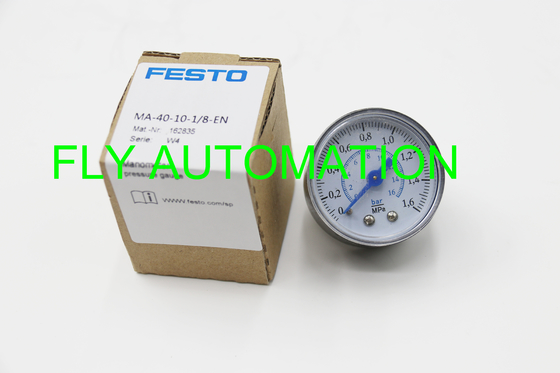

Package picture
