| Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
 |
| Place of Origin: | China |
| Brand Name: | BURKERT |
| Certification: | ISO Standand |
| Model Number: | 5404-02 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic bags, boxes, cartons, Pallets or As customer's requirement |
| Delivery Time: | 7-10 working Days |
| Payment Terms: | T/T, Western Union, MoneyGram Paypal |
| Supply Ability: | 1000 PCS Per Week |
| Pressure: | 0.1～5.0MPa | Fluid Temperature: | -5～180℃ |
|---|---|---|---|
| Type: | Normally Closed | Use Fluid: | Air, Water, Oil |
| Body Material: | Brass | Voltage: | AC220V DC12V DC24V |
| High Light: | DC24V High Temperature Solenoid Valve,High Pressure Solenoid Valve 12v,50 Bar Pneumatic Solenoid Valves |
||
High Pressure Solenoid Valve
We have various models. No matter what model you need, please feel free to contact me.
If you have any questions about the price, you can contact me at any time.
5404-02 1/4"
5404-04 1/2"
5404-06 3/4"
5404-08 1"

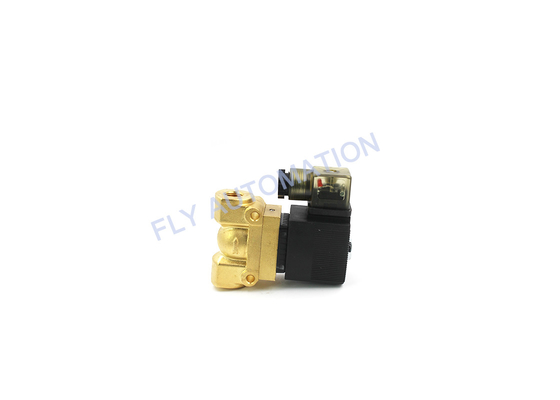

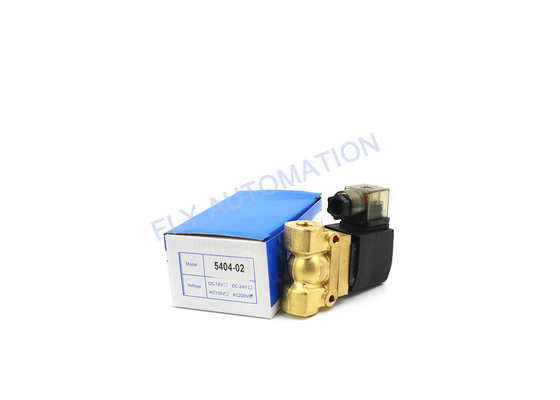

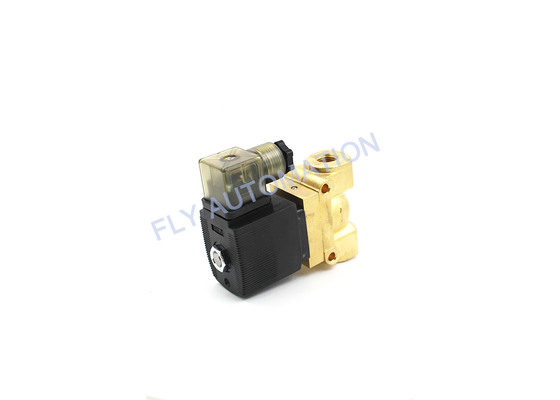

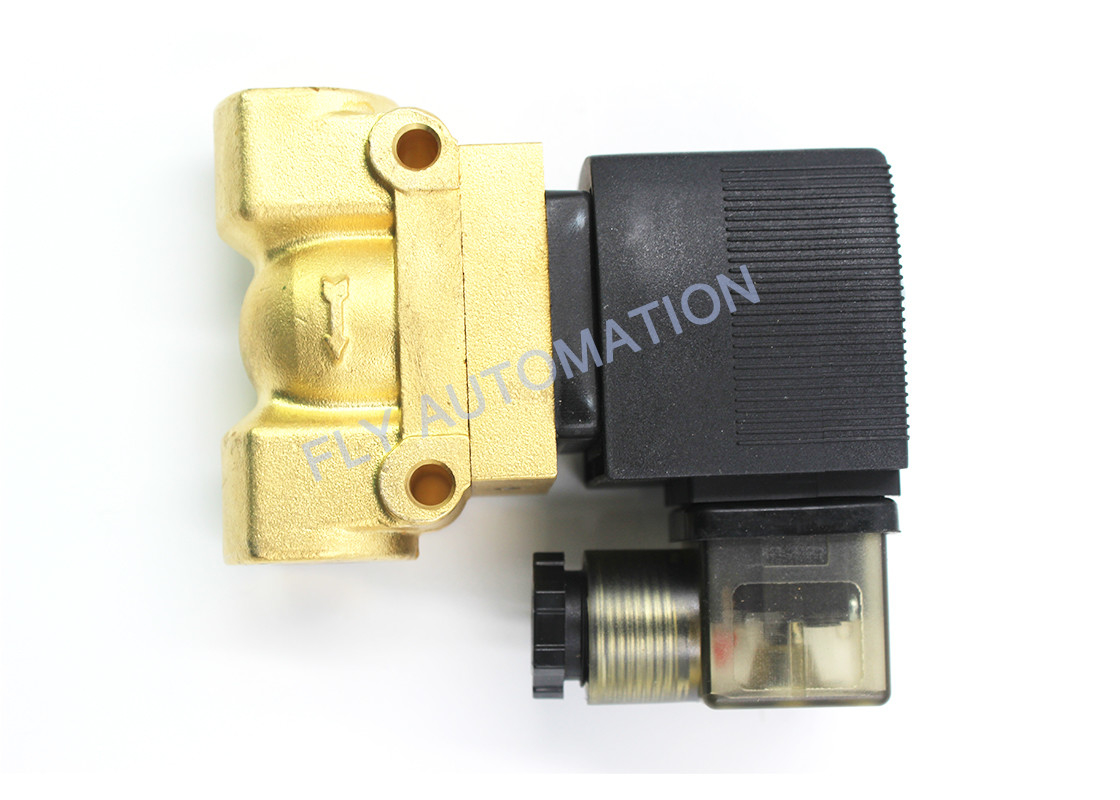

5404-02 High Pressure High Temperature Solenoid Valve AC220 DC24V DC12V 50 Bar
Specification
| Pattern: | Two-port two-position | |||||
| Principium: | pilot type | |||||
| Control mode: | normally close | |||||
| Valve body: | brass | |||||
| Diaphragm material: | PTFE: <180°C | |||||
| Working pressure: | 1~50bar | |||||
| Max pressure: | 50bar | |||||
| Voltage: | AC220V DC12V DC24V | |||||
| Medium: | air ,water, hot water , oil ect. | |||||
| Application: | high pressure high temperature large-flow normally air water control system | |||||
Body material: brass
Use fluid: air, water, oil
Type: Normally closed
Voltage: AC220V, DC24V, DC12V
Pressure: 0.1～5.0MPa
Fluid temperature: -5～180℃
Product features: large flow hole diameter high pressure 5MPA, 50KG
solenoid valve
The medium temperature can reach 180℃
Working pressure can reach 5MPa(50kg)
Suitable for various fluid media such as water, gas, acetylene,
liquefied gas, etc., with a kinematic viscosity<=1mm2/s
Coil: Fully coated with thermosetting plastic
IP65 protection system, low temperature rise
Piston structure starts smoothly and has high reliability
Contact Person: Jaren
Tel: 0086-15257858856
Fax: 86-152-57858856
