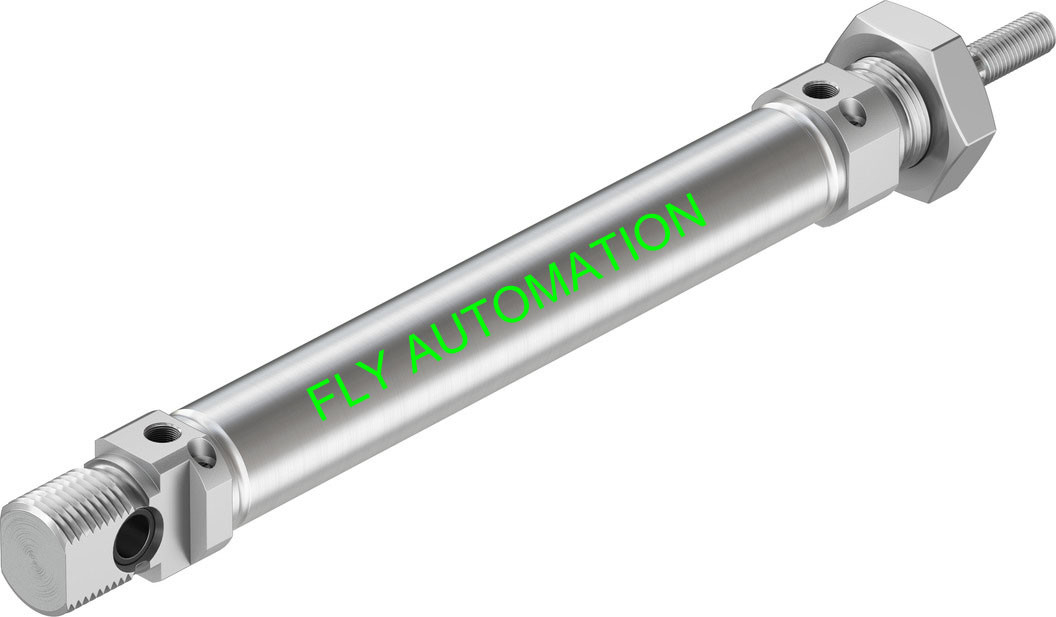

High Alloy Stainless Steel Pneumatic Air Cylinders DSNU-16-80-PPV-A GTIN4052568003302

High Alloy Stainless Steel Pneumatic Air Cylinders DSNU-16-80-PPV-A GTIN4052568003302

  • High Alloy Stainless Steel Pneumatic Air Cylinders DSNU-16-80-PPV-A GTIN4052568003302
  • High Alloy Stainless Steel Pneumatic Air Cylinders DSNU-16-80-PPV-A GTIN4052568003302
  • High Alloy Stainless Steel Pneumatic Air Cylinders DSNU-16-80-PPV-A GTIN4052568003302
High Alloy Stainless Steel Pneumatic Air Cylinders DSNU-16-80-PPV-A GTIN4052568003302
Product Details:
Place of Origin: China
Brand Name: FESTO
Model Number: DSNU-16-80-PPV-A
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: EXW USD25-35
Packaging Details: plastic bag, carton，OPP bag
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100 pcs per month
Contact Now
Detailed Product Description
Brand: FESTO Type: DSNU-16-80-PPV-A
Part No: 19231 GTIN: 4052568003302
Cushioning Length: 12 Mm Material Piston Rod: High-alloy Stainless Steel
Highlight:

Alloy Stainless Steel Compact Cylinder

,

12mm Pneumatic Air Cylinders

,

M5 Double Acting Pneumatic Cylinder

FESTO ISO cylinder DSNU-16-80-PPV-A 19231 GTIN4052568003302 Pneumatic Air Cylinders

About product

1.Wide range of variants for customised applications.

2.Good running performance and long service life.

3.Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes.



Technical Data

Stroke 80 mm
Piston diameter 16 mm
Piston rod thread M6
Cushioning Pneumatic cushioning, adjustable at both ends
Mounting position optional
Conforms to standard CETOP RP 52 P ISO 6432
Piston-rod end Male thread
Design Piston Piston rod Cylinder barrel
Position detection Via proximity switch
Symbol 00991235
Variants Piston rod at one end
Mode of operation Double-acting
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Cleanroom class Class 6 according to ISO 14644-1
Ambient temperature -20°C-80°C
Cushioning length 12 mm
Basic weight for 0 mm stroke 89.9 g
Additional weight per 10 mm stroke 4.6 g
Type of mounting With accessories
Pneumatic connection M5
Note on materials RoHS-compliant
Material cover Wrought aluminium alloy Colourless anodised
Material seals NBR TPE-U(PU)
Material piston rod High-alloy stainless steel
Material cylinder barrel High-alloy stainless steel



Other stroke as Below

Type Order no GTIN Price
DSNU-16-10-PPV-A 1908266 4052568108472 USD25-35
DSNU-16-15-PPV-A 1908267 4052568108489 USD25-35
DSNU-16-20-PPV-A 1908268 4052568108496 USD25-35
DSNU-16-25-PPV-A 33973 4052568067809 USD25-35
DSNU-16-30-PPV-A 1908269 4052568108502 USD25-35
DSNU-16-35-PPV-A 1908270 4052568108519 USD25-35
DSNU-16-40-PPV-A 19229 4052568067090 USD25-35
DSNU-16-50-PPV-A 19230 4052568003296 USD25-35
DSNU-16-60-PPV-A 1908271 4052568108526 USD25-35
DSNU-16-70-PPV-A 1908272 4052568108533 USD25-35
DSNU-16-80-PPV-A 19231 4052568003302 USD25-35
DSNU-16-100-PPV-A 19232 4052568003319 USD25-35
DSNU-16-125-PPV-A 19233 4052568003326 USD25-35
DSNU-16-150-PPV-A 1908273 4052568108540 USD25-35
DSNU-16-160-PPV-A 19234 4052568003333 USD25-35
DSNU-16-200-PPV-A 19235 4052568067106 USD25-35



Product detail

Cushioning types Cushioning PPV
Mode of operation The drive has adjustable end-position cushioning
Application Medium to high loads
High speeds
High impact energies
Advantages Very powerful



Cushioning PPV



High Alloy Stainless Steel Pneumatic Air Cylinders DSNU-16-80-PPV-A GTIN4052568003302







There are so many type ,please call me immediately!
