| Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
 |
| Place of Origin: | China |
| Brand Name: | FESTO |

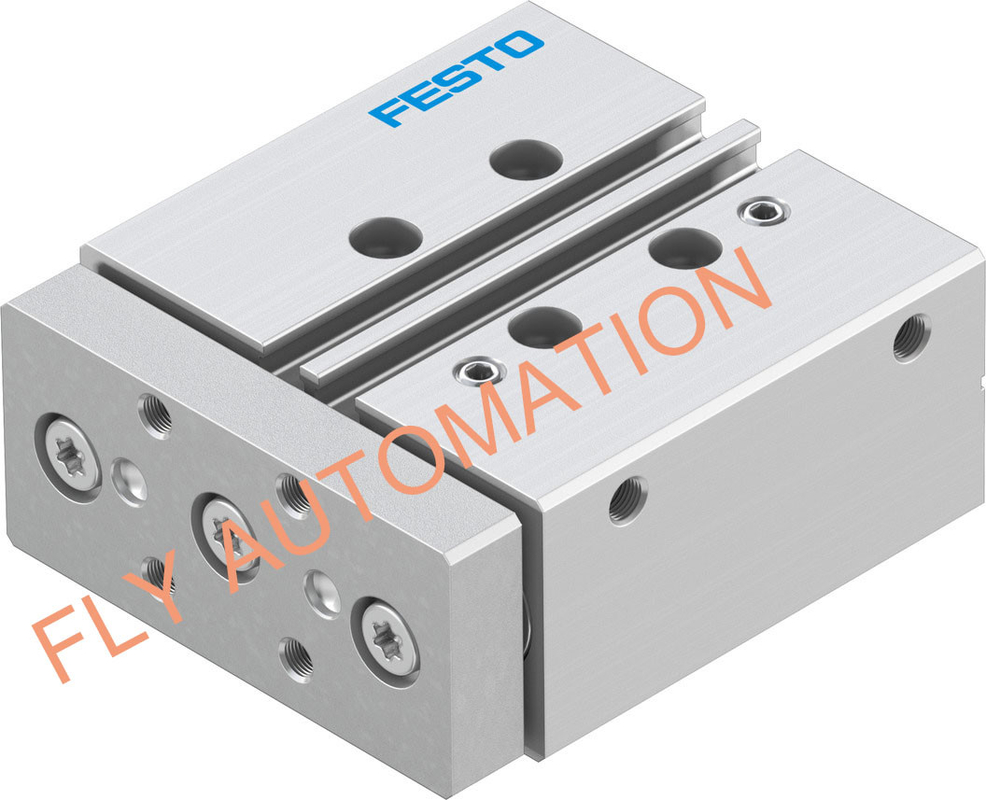

| Model Number: | DFM-16-25-P-A-GF |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD60-80 |
| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 10-15working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 100 pcs per month |
| Type: | DFM-16-25-P-A-GF | Part No: | 170834 |
|---|---|---|---|
| Brand: | FESTO | GTIN: | 4052568139629 |
| Max. Speed: | 0.8 M/s | Material Piston Rod: | High-alloy Stainless Steel |
| High Light: | Guided Drive DFM-16-25-P-A-GF,170834 Pneumatic Air Cylinders,0.8m/s Double Acting Pneumatic Cylinder |
||
About Product
1.The guided drive is perfectly suited to clamping components for reliable further processing.
2.The guided drive effortlessly transports and lifts loads of over 200 kg, powerfully and dynamically.
3.Loads of up to 150 kg are stopped reliably and safely, making the guided drive a resilient and sturdy stopper cylinder.
Technical Data
| Stroke | 25 mm |
| Piston diameter | 16 mm |
| Operating mode, drive unit | Yoke |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Guide | Plain-bearing guide |
| Design | Guidance |
| Position detection | Via proximity switch |
| Symbol | 00991737 |
| Max. speed | 0.8 m/s |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C-80°C |
| Product weight | 534 g |
| Pneumatic connection | M5 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy |
| Material seals | NBR |
| Material housing | Wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel |
Other size as follow
| Type | Order no | Weight(g) | Price |
| DFM-16-10-P-A-GF | 170832 | 444 | USD60-80 |
| DFM-16-20-P-A-GF | 170833 | 507 | USD60-80 |
| DFM-16-25-P-A-GF | 170834 | 534 | USD60-80 |
| DFM-16-30-P-A-GF | 170835 | 565 | USD60-80 |
| DFM-16-40-P-A-GF | 170836 | 710 | USD60-80 |
| DFM-16-50-P-A-GF | 170837 | 772 | USD60-80 |
| DFM-16-80-P-A-GF | 170838 | 960 | USD60-80 |
| DFM-16-100-P-A-GF | 170839 | 1081 | USD60-80 |
Peripherals overview
A wide range of products with excellent prices. Please hurry to me!
Contact Person: Jaren
Tel: 0086-15257858856
Fax: 86-152-57858856
