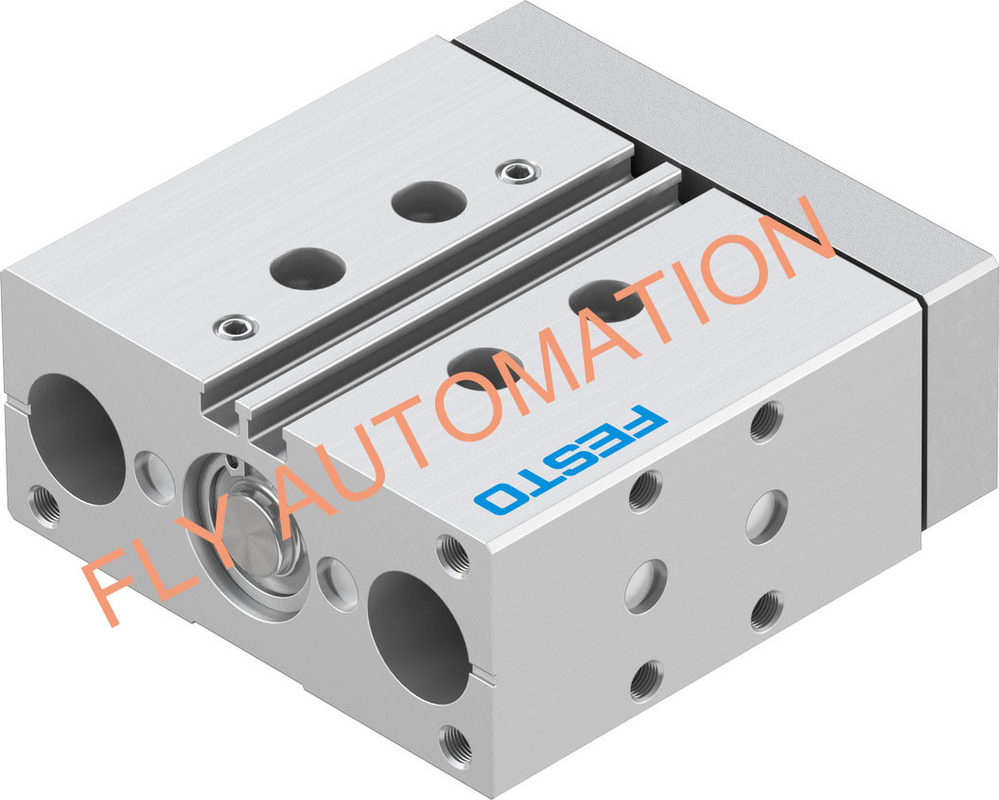

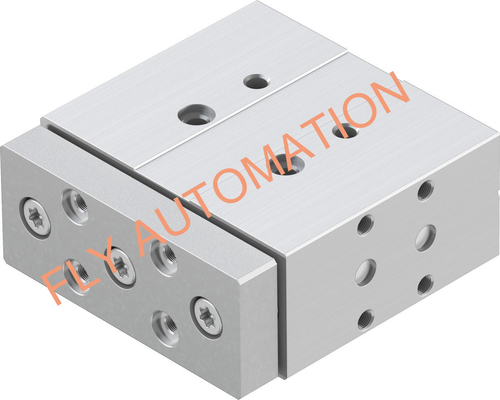

Guided Drive DFM-20-30-P-A-GF Pneumatic Air Cylinders 170842 GTIN4052568139674

Guided Drive DFM-20-30-P-A-GF Pneumatic Air Cylinders 170842 GTIN4052568139674

  • Guided Drive DFM-20-30-P-A-GF Pneumatic Air Cylinders 170842 GTIN4052568139674
  • Guided Drive DFM-20-30-P-A-GF Pneumatic Air Cylinders 170842 GTIN4052568139674
Guided Drive DFM-20-30-P-A-GF Pneumatic Air Cylinders 170842 GTIN4052568139674
Product Details:
Place of Origin: China
Brand Name: FESTO
Model Number: DFM-20-30-P-A-GF
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: EXW USD80-100
Packaging Details: Plastic bag, Carton
Delivery Time: 10-15working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 50 pcs per month
Contact Now
Detailed Product Description
Part No: 170842 Type: DFM-20-30-P-A-GF
Brand: FESTO GTIN: 4052568139674
Ambient Temperature: -20°C-80°C Product Weight: 850 G
High Light:

170842 Pneumatic Air Cylinders

,

DFM-20-30-P-A-GF Guided Drive

,

M5 Pneumatic Air Cylinders

FESTO Guided drive DFM-20-30-P-A-GF 170842 GTIN4052568139674 Pneumatic Air Cylinders

About Product

1.High rigidity,Maintenance-free.

2.Elastic cushioning rings/plates at both ends.

3.Excellent protection against torsion, high resistance to torques and transverse loads.



Technical Data

Stroke 30 mm
Piston diameter 20 mm
Operating mode, drive unit Yoke
Cushioning Elastic cushioning rings/plates at both ends
Mounting position optional
Guide Plain-bearing guide
Design Guidance
Position detection Via proximity switch
Symbol 00991737
Max. speed 0.8 m/s
Mode of operation Double-acting
Corrosion resistance class CRC 1 - Low corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Ambient temperature -20°C-80°C
Product weight 850 g
Pneumatic connection M5
Note on materials RoHS-compliant
Material cover Wrought aluminium alloy
Material seals NBR
Material housing Wrought aluminium alloy
Material piston rod High-alloy stainless steel



Other size as follow

Type Order no Weight(g) Price
DFM-20-20-P-A-GF 170840 769 USD80-100
DFM-20-25-P-A-GF 170841 806 USD80-100
DFM-20-30-P-A-GF 170842 850 USD80-100
DFM-20-40-P-A-GF 170843 1070 USD80-100
DFM-20-50-P-A-GF 170844 1158 USD80-100
DFM-20-80-P-A-GF 170845 1422 USD80-100
DFM-20-100-P-A-GF 170846 1592 USD80-100



Use as a stopper cylinder

Guided Drive DFM-20-30-P-A-GF Pneumatic Air Cylinders 170842 GTIN4052568139674
