| Place of Origin: | China |
| Brand Name: | FESTO |
| Model Number: | VUWS-L25-M52-M-G14 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD100-120 |
| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 300 pcs per month |
| Model: | VUWS-L25-M52-M-G14 | Order No: | 575515 |
|---|---|---|---|
| Brand: | FESTO | Type Of Actuation: | Pneumatic |
| Design: | Piston Gate Valve | Type Of Reset: | Mechanical Spring |
| High Light: | 575515 Pneumatic Solenoid Valves,Mechanical Spring Solenoid Air Valve,G1/4 Air Operated Solenoid Valve |
||
About product
1.Universal valve, sturdy and durable.
2.Pneumatically actuated.
3.Can be used as individual valves or manifold valves VTUS.
4.A reliable, robust valve with a long service life.
5.Wide range of valve functions.
Technical Data

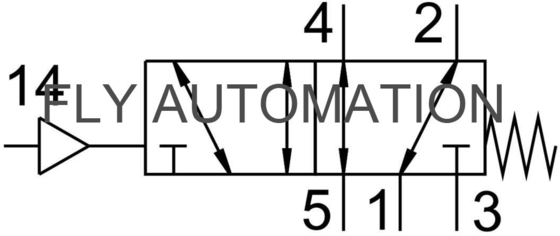

| Valve function | 5/2-way, monostable |
| Type of actuation | Pneumatic |
| Valve size | 26.5 mm |
| Standard nominal flow rate | 1300 l/min |
| pneumatic working port | G1/4 |
| Design | Piston gate valve |
| Type of reset | Mechanical spring |
| Approval | c UL us - Recognized (OL) |
| Nominal size | 6.9 mm |
| Exhaust-air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | optional |
| Manual override | None |
| Type of piloting | Direct |
| Pilot air supply | Internal |
| Flow direction | Reversible |
| Switching time off | 42 ms |
| Switching time on | 10 ms |
| Media temperature | -10°C-60°C |
| Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -10°C-60°C |
| Product weight | 330 g |
| Breather connection | Not ducted |
| Pilot air port 14 | M5 |
| Pneumatic connection, port 1 | G1/4 |
| Pneumatic connection, port 2 | G1/4 |
| Pneumatic connection, port 3 | G1/4 |
| Pneumatic connection, port 4 | G1/4 |
| Pneumatic connection, port 5 | G1/4 |
| Note on materials | RoHS-compliant |
| Material seals | HNBR NBR |
| Material housing | Die-cast aluminium Painted |
| Material piston slide | Wrought aluminium alloy |
| Material screws | Galvanised steel |
| Type | Order no | Price |
| VUWS-L25-M52-A-G14 | 575507 | USD100-120 |
| VUWS-L25-M52-E-G14 | 575508 | USD100-120 |
| VUWS-L25-M52-M-G14 | 575515 | USD100-120 |
| VUWS-L25-B52-G14 | 575522 | USD100-120 |
| VUWS-L25-P53C-M-G14 | 575529 | USD100-120 |
| VUWS-L25-P53E-M-G14 | 575543 | USD100-120 |
| VUWS-L25-P53U-M-G14 | 575536 | USD100-120 |
Wall mounting
There are so many products, welcome to enquire!
