| Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
 |
| Place of Origin: | China |
| Brand Name: | FESTO |

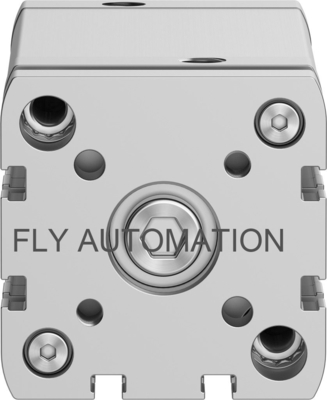

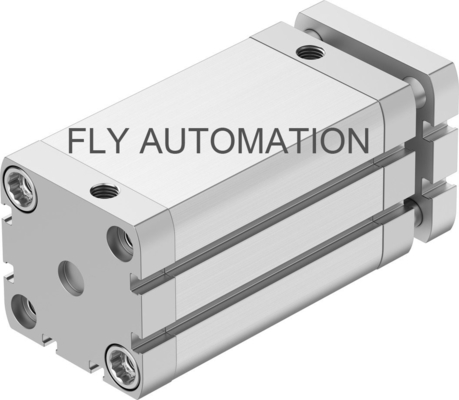

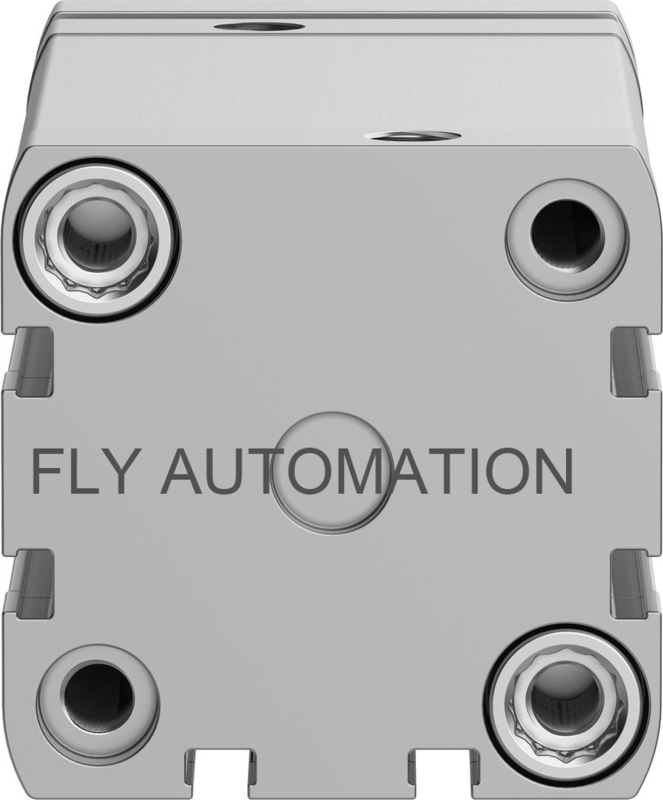

| Model Number: | ADNGF-50-80-P-A |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD70-90 |
| Packaging Details: | Plastic bag, Carton，OPP bag |
| Delivery Time: | 10-15working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 80 pcs per month |
| Part No: | 554267 | Type: | ADNGF-50-80-P-A |
|---|---|---|---|
| Brand: | FESTO | GTIN: | 4052568198923 |
| Based On Standard: | ISO 21287 | Material Piston Rod: | High-alloy Steel |
| High Light: | Elastic Cushioning Pneumatic Air Cylinders,ISO 21287 Compact Cylinders,Pneumatic Air Cylinders 554267 |
||
Advantage
1.Long service life.
2.Space saving.
3.Complete range.
4.Guaranteed quality.
Technical Data
| Stroke | 80 mm |
| Piston diameter | 50 mm |
| Based on standard | ISO 21287 |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Design | Piston Piston rod Profile barrel |
| Position detection | Via proximity switch |
| Protection against torque/guide | Guide rod with yoke |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C-80°C |
| Basic weight for 0 mm stroke | 687 g |
| Additional weight per 10 mm stroke | 64 g |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant |
| Material cover | Aluminium Anodised |
| Material seals | TPE-U(PUR) |
| Material piston rod | High-alloy steel |
| Material cylinder barrel | Wrought aluminium alloy Smooth anodised |
Other size as below
| Type | Order no | Weight(g) | Price |
| ADNGF-50-5-P-A | 554258 | 719 | USD70-90 |
| ADNGF-50-10-P-A | 554259 | 751 | USD70-90 |
| ADNGF-50-15-P-A | 554260 | 783 | USD70-90 |
| ADNGF-50-20-P-A | 554261 | 815 | USD70-90 |
| ADNGF-50-25-P-A | 554262 | 847 | USD70-90 |
| ADNGF-50-30-P-A | 554263 | 879 | USD70-90 |
| ADNGF-50-40-P-A | 554264 | 943 | USD70-90 |
| ADNGF-50-50-P-A | 554265 | 1007 | USD70-90 |
| ADNGF-50-60-P-A | 554266 | 1071 | USD70-90 |
| ADNGF-50-80-P-A | 554267 | 1199 | USD70-90 |
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNT will be normal ways. If you require use of a courier, we can do it.
Weight [g]
FESTO, the world's leading automation technology supplier, is committed to promoting the development of industrial automation.
A wide range of products with excellent prices. Please hurry to me!
