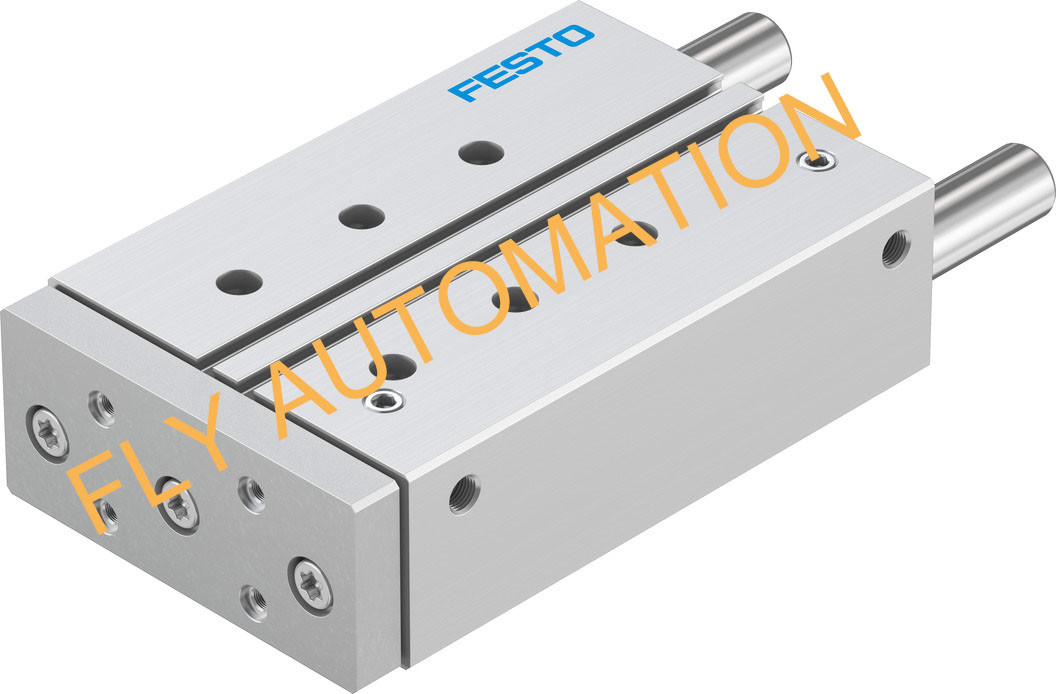

GTIN4052568139780 Pneumatic Air Cylinders Guided Drive DFM-40-125-P-A-GF 170868

GTIN4052568139780 Pneumatic Air Cylinders Guided Drive DFM-40-125-P-A-GF 170868

  • GTIN4052568139780 Pneumatic Air Cylinders Guided Drive DFM-40-125-P-A-GF 170868
  • GTIN4052568139780 Pneumatic Air Cylinders Guided Drive DFM-40-125-P-A-GF 170868
GTIN4052568139780 Pneumatic Air Cylinders Guided Drive DFM-40-125-P-A-GF 170868
Product Details:
Place of Origin: China
Brand Name: FESTO
Model Number: DFM-40-125-P-A-GF
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: EXW USD150-200
Packaging Details: Plastic bag, Carton
Delivery Time: 7-10working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 50 pcs per month
Contact Now
Detailed Product Description
Type: DFM-40-125-P-A-GF Part No: 170868
Brand: FESTO GTIN: 4052568139780
Product Weight: 4123 G Material Seals: NBR
Highlight:

G1/8 Cylinder Guided Drive

,

170868 Pneumatic Air Cylinders

,

NBR Seals Guided Drive

FESTO Guided drive DFM-40-125-P-A-GF 170868 GTIN4052568139780 Pneumatic Air Cylinders

About Product

1.Elastic cushioning rings/plates at both ends.

2.Sturdy and precise.

3.The guided drive effortlessly transports and lifts loads of over 200 kg, powerfully and dynamically.

4.Simple operation and long service life.

5.Wide variety and excellent quality.



Technical Data

Stroke 125 mm
Piston diameter 40 mm
Operating mode, drive unit Yoke
Cushioning Elastic cushioning rings/plates at both ends
Mounting position optional
Guide Plain-bearing guide
Design Guidance
Position detection Via proximity switch
Symbol 00991737
Max. speed 0.8 m/s
Mode of operation Double-acting
Corrosion resistance class CRC 1 - Low corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Ambient temperature -20°C-80°C
Product weight 4123 g
Pneumatic connection G1/8
Note on materials RoHS-compliant
Material cover Wrought aluminium alloy
Material seals NBR
Material housing Wrought aluminium alloy
Material piston rod High-alloy stainless steel



Other size as follow

Type Order no Weight(g) Price
DFM-40-25-P-A-GF 170864 2217 USD150-200
DFM-40-50-P-A-GF 170865 2655 USD150-200
DFM-40-80-P-A-GF 170866 3261 USD150-200
DFM-40-100-P-A-GF 170867 3595 USD150-200
DFM-40-125-P-A-GF 170868 4123 USD150-200
DFM-40-160-P-A-GF 170869 4736 USD150-200
DFM-40-200-P-A-GF 170870 5437 USD150-200



Attention

1,Before you endorse the parcel, please do open the package, and check out whether the items are damaged during the shipping process.
If so, please do refuse to sign for the parcel, the courier will send back the package to our company. Otherwise we are not responsible for this...
2,Any order is welcome; we will give discounts and combined shipping costs for you if you order more or mix order. If you have any questions,
please feel free to contact us.



Use as a lifting cylinder

GTIN4052568139780 Pneumatic Air Cylinders Guided Drive DFM-40-125-P-A-GF 170868

A wide range of products with excellent prices. Please hurry to me!
