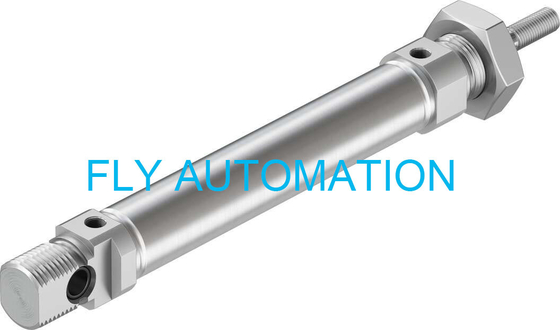

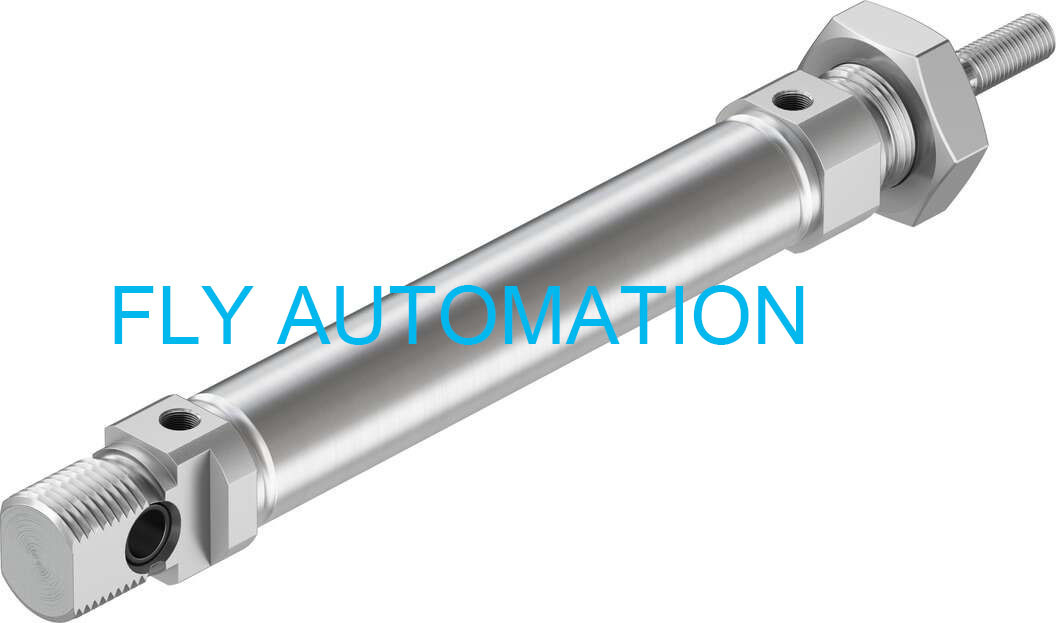

GTIN4052568108441 1908263 16mm Pneumatic Air Cylinders DSNU-16-60-P-A ISO

GTIN4052568108441 1908263 16mm Pneumatic Air Cylinders DSNU-16-60-P-A ISO

  • GTIN4052568108441 1908263 16mm Pneumatic Air Cylinders DSNU-16-60-P-A ISO
  • GTIN4052568108441 1908263 16mm Pneumatic Air Cylinders DSNU-16-60-P-A ISO
GTIN4052568108441 1908263 16mm Pneumatic Air Cylinders DSNU-16-60-P-A ISO
Product Details:
Place of Origin: China
Brand Name: FESTO
Model Number: DSNU-16-60-P-A
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: EXW USD25-30
Packaging Details: plastic bag, carton，OPP bag
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100 pcs per month
Contact Now
Detailed Product Description
Part No: 1908263 Type: DSNU-16-60-P-A
Brand: FESTO GTIN: 4052568108441
Material Piston Rod: High-alloy Stainless Steel Piston Diameter: 16 Mm
Highlight:

16mm Pneumatic Air Cylinders

,

1908263 Compact Air Cylinder

,

Male Thread Air Cylinder

FESTO ISO cylinder DSNU-16-60-P-A 1908263 GTIN4052568108441 Pneumatic Air Cylinders

About product

1.A variety of cylinder mounting accessories are available and flexible.

2.It is fully equipped, such as the trunnion on the end cover, to deal with various emergencies.

3.Simple, fast, space saving and tamper proof.

4.Long service life.

5.Easy to install in narrow space.



Technical Data

Stroke 60 mm
Piston diameter 16 mm
Piston rod thread M6
Cushioning rings/plates at both ends
Mounting position optional
Conforms to standard CETOP RP 52 P ISO 6432
Piston-rod end Male thread
Design Piston Piston rod Cylinder barrel
Position detection Via proximity switch
Symbol 00991217
Variants Piston rod at one end
Mode of operation Double-acting
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Cleanroom class Class 6 according to ISO 14644-1
Ambient temperature -20°C-80°C
Impact energy in end positions 0.15 J
Basic weight for 0 mm stroke 89.9 g
Additional weight per 10 mm stroke 4.6 g
Type of mounting With accessories
Pneumatic connection M5
Note on materials RoHS-compliant
Material cover Wrought aluminium alloy Colourless anodised
Material seals NBR TPE-U(PU)
Material piston rod High-alloy stainless steel
Material cylinder barrel High-alloy stainless steel


Other stroke as Below

Type Order no GTIN Price
DSNU-16-10-P-A 19198 4052568003104 USD25-30
DSNU-16-15-P-A 1908259 4052568108403 USD25-30
DSNU-16-20-P-A 1908260 4052568108410 USD25-30
DSNU-16-25-P-A 19199 4052568003111 USD25-30
DSNU-16-30-P-A 1908261 4052568108427 USD25-30
DSNU-16-35-P-A 1908262 4052568108434 USD25-30
DSNU-16-40-P-A 19200 4052568067007 USD25-30
DSNU-16-50-P-A 19201 4052568003128 USD25-30
DSNU-16-60-P-A 1908263 4052568108441 USD25-30
DSNU-16-70-P-A 1908264 4052568108458 USD25-30
DSNU-16-80-P-A 19202 4052568067014 USD25-30
DSNU-16-100-P-A 19203 4052568003135 USD25-30
DSNU-16-125-P-A 19204 4052568003142 USD25-30
DSNU-16-150-P-A 1908265 4052568108465 USD25-30
DSNU-16-160-P-A 19205 4052568067021 USD25-30
DSNU-16-200-P-A 19206 4052568003159 USD25-30



Max. transverse load Fq as a function of projection l

GTIN4052568108441 1908263 16mm Pneumatic Air Cylinders DSNU-16-60-P-A ISO







FESTO's profile cylinder and pull rod cylinder are standard cylinders conforming to ISO15552 With self-adjusting throttle terminal position buffer.



There are so many type ,please call me immediately!
