| Place of Origin: | China |
| Brand Name: | FESTO |

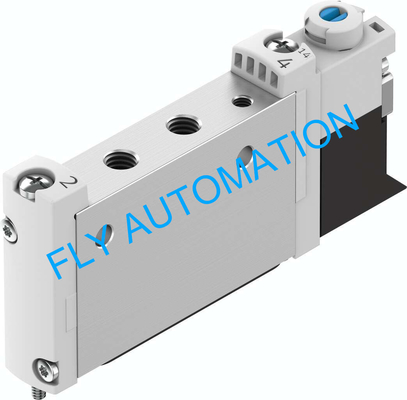

| Model Number: | VUVG-L10-M52-RT-M5-1P3 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD50-60 |
| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 100 pcs per month |
| Model: | VUVG-L10-M52-RT-M5-1P3 | Order No: | 566457 |
|---|---|---|---|
| Brand: | FESTO | Valve Function: | 5/2-way, Monostable |
| Type Of Actuation: | Electric | Product Weight: | 45 G |
| High Light: | Aluminium Alloy Air Operated Solenoid Valve,M5 Pneumatic Solenoid Valves,Monostable Electric Solenoid Air Valve |
||
About product
1.Pneumatic/mechanical spring return.
2.Internal pilot air supply.
3.Wrought aluminium alloy.
4.Expected high Festo quality.
5.Wide range of valve functions.
Technical Data
| Valve function | 5/2-way, monostable |
| Type of actuation | Electric |
| Valve size | 10 mm |
| Standard nominal flow rate | 220 l/min |
| pneumatic working port | M5 |
| Operating voltage | 24V DC |
| Design | Piston gate valve |
| Type of reset | Mechanical spring Pneumatic spring |
| Approval | RCM trademark c UL us - Recognized (OL) |
| Degree of protection | IP40 IP65 With plug socket |
| Nominal size | 3.2 mm |
| Exhaust-air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | optional |
| Manual override | Detenting Non-detenting Covered |
| Type of piloting | Pilot actuated |
| Pilot air supply | Internal |
| Symbol | 00992233 |
| lap | Positive overlap |
| Suitability for vacuum | no |
| Switching time off | 17 ms |
| Switching time on | 7 ms |
| Duty cycle | 100% |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -5°C-60°C |
| Ambient temperature | -5°C-60°C |
| Product weight | 45 g |
| Electrical connection | Via electrical sub-base |
| Type of mounting | Either: On manifold rail With through-hole |
| Pneumatic connection, port 1 | M5 |
| Pneumatic connection, port 2 | M5 |
| Pneumatic connection, port 3 | M5 |
| Pneumatic connection, port 4 | M5 |
| Pneumatic connection, port 5 | M5 |
| Note on materials | RoHS-compliant |
| Material seals | HNBR NBR |
| Material housing | Wrought aluminium alloy |
Another size as below
| Type | Order no | Price |
| VUVG-L10-T32C-AT-M5-1P3 | 566454 | USD50-60 |
| VUVG-L10-T32U-AT-M5-1P3 | 566455 | USD50-60 |
| VUVG-L10-T32H-AT-M5-1P3 | 566456 | USD50-60 |
| VUVG-L10-T32C-MT-M5-1P3 | 574348 | USD50-60 |
| VUVG-L10-T32U-MT-M5-1P3 | 574349 | USD50-60 |
| VUVG-L10-T32H-MT-M5-1P3 | 574350 | USD50-60 |
| VUVG-L10-T32C-AZT-M5-1P3 | 566463 | USD50-60 |
| VUVG-L10-T32U-AZT-M5-1P3 | 566464 | USD50-60 |
| VUVG-L10-T32H-AZT-M5-1P3 | 566465 | USD50-60 |
| VUVG-L10-T32C-MZT-M5-1P3 | 574352 | USD50-60 |
| VUVG-L10-T32U-MZT-M5-1P3 | 574353 | USD50-60 |
| VUVG-L10-T32H-MZT-M5-1P3 | 574354 | USD50-60 |
| VUVG-L10-M52-RT-M5-1P3 | 566457 | USD50-60 |
| VUVG-L10-M52-MT-M5-1P3 | 574351 | USD50-60 |
| VUVG-L10-M52-RZT-M5-1P3 | 566466 | USD50-60 |
| VUVG-L10-M52-RZT-M5-1P3 | 574355 | USD50-60 |
There are so many products, welcome to enquire!
