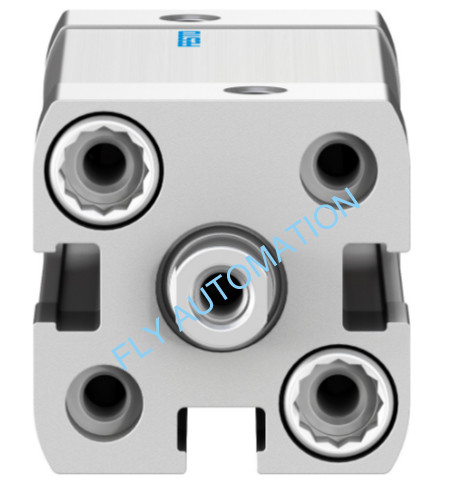

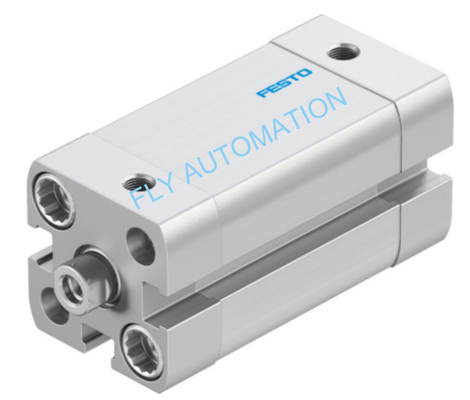

GTIN4052568087364 Pneumatic Compact Air Cylinders ADN-16-25-I-P-A 536230

GTIN4052568087364 Pneumatic Compact Air Cylinders ADN-16-25-I-P-A 536230

  • GTIN4052568087364 Pneumatic Compact Air Cylinders ADN-16-25-I-P-A 536230
  • GTIN4052568087364 Pneumatic Compact Air Cylinders ADN-16-25-I-P-A 536230
GTIN4052568087364 Pneumatic Compact Air Cylinders ADN-16-25-I-P-A 536230
Product Details:
Place of Origin: China
Brand Name: FESTO
Model Number: ADN-16-25-I-P-A
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: EXW USD25-35
Packaging Details: plastic bag, carton，OPP bag
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100 pcs per month
Contact Now
Detailed Product Description
Brand: FESTO Part No: 536230
Type: ADN-16-25-I-P-A GTIN: 4052568087364
Piston Rod Thread: M4 Variants: Piston Rod At One End
Highlight:

25mm Pneumatic Air Cylinders

,

536230 Compact Air Cylinder

,

Female Thread Compact Cylinder

FESTO Compact cylinder ADN-16-25-I-P-A 536230 GTIN4052568087364 Pneumatic Air Cylinders

About product

1.The compact cylinder series ADN/ AEN comply with the standard ISO 21287 .

2.The ADN/AEN is characterised by its compact design and broad area of application thanks to the large number of variants.
3.The variants can be configured according to individual needs thanks to the modular product system.



Technical Data

Stroke 25 mm
Piston diameter 16 mm
Piston rod thread M4
Cushioning Elastic cushioning rings/plates at both ends
Mounting position optional
Conforms to standard ISO 21287
Piston-rod end Female thread
Position detection Via proximity switch
Symbol 00991217
Variants Piston rod at one end
Mode of operation Double-acting
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Ambient temperature -20°C-80°C
Basic weight for 0 mm stroke 79 g
Additional weight per 10 mm stroke 14 g
Pneumatic connection M5
Note on materials RoHS-compliant
Material cover Aluminium Anodised
Material seals TPE-U(PUR)
Material piston rod High-alloy steel
Material cylinder barrel Wrought aluminium alloy Smooth anodised



Another stroke as follow

Type Order no GTIN Price
ADN-16-5-I-P-A 536226 4052568087326 USD25-35
ADN-16-10-I-P-A 536227 4052568087333 USD25-35
ADN-16-15-I-P-A 536228 4052568087340 USD25-35
ADN-16-20-I-P-A 536229 4052568087357 USD25-35
ADN-16-25-I-P-A 536230 4052568087364 USD25-35
ADN-16-30-I-P-A 536231 4052568087371 USD25-35
ADN-16-40-I-P-A 536232 4052568087388 USD25-35
ADN-16-50-I-P-A 536341 4052568087845 USD25-35



Attention

1,Before you endorse the parcel, please do open the package, and check out whether the items are damaged during the shipping process.
If so, please do refuse to sign for the parcel, the courier will send back the package to our company. Otherwise we are not responsible for this...
2,Any order is welcome; we will give discounts and combined shipping costs for you if you order more or mix order. If you have any questions,
please feel free to contact us.



There are so many kinds. Hurry to call me!
