| Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
 |
| Place of Origin: | China |
| Brand Name: | FESTO |

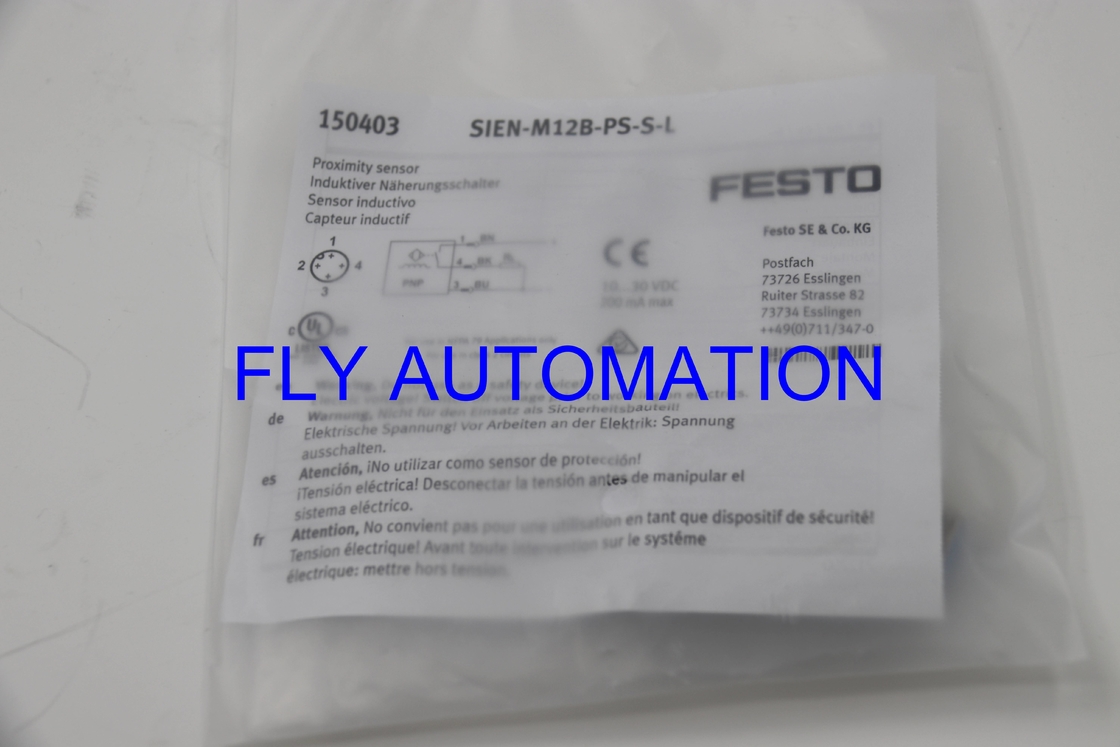

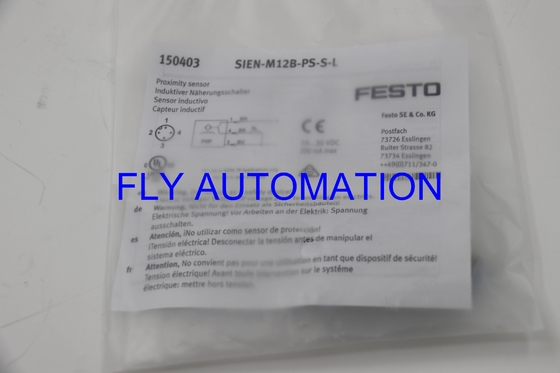

| Model Number: | SIEN-M12B-PS-S-L |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD50-60 |
| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 7-10working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500 pcs per month |
| Type: | SIEN-M12B-PS-S-L | Part No: | 150403 |
|---|---|---|---|
| Brand: | FESTO | Weight: | 30 G |
| Mounting Type: | Flush | Switching Status Indication: | Yellow LED |
| High Light: | Festo Proximity Sensor 150403,Pneumatic System Proximity Sensor,150403 Pneumatic System Components |
||
About product
Corrosion resistance class CRC 2 to Festo standard FN 940070
Moderate corrosion stress. Indoor applications in which condensation can occur. External visible parts with primarily decorative surface requirements which are in direct contact with a normal industrial environment.
Complete specifications, convenient and fast selection
Technical Data
| Conforms to standard | EN 60947-5-2 |
| Symbol | 00991701 |
| Approval | RCM trademark c UL us listed (OL) |
| CE mark (see declaration of conformity) | To EU EMC Directive |
| Rated operating distance | 2 mm |
| Assured operating distance | 1.62 mm |
| Ambient temperature | -25°C-70°C |
| Switching output | PNP |
| Short circuit current rating | Pulsed |
| Operational voltage range DC | 10 V ... 30 V |
| Reverse polarity protection | For all electrical connections |
| Electrical connection | 3-pin M12x1 Plugs |
| Size | M12x1 |
| Type of mounting | Via lock nut |
| Mounting type | Flush |
| Product weight | 30 g |
| Material housing | Brass PBTP Nickel-plated |
| Switching status indication | Yellow LED |
| Ambient temperature with moving cable | -5°C-70°C |
| Degree of protection | IP65 IP67 |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Additional information for sensor selection | with standard sensing distance |
| Electrical output | PNP |
| Selection of sensor design | Standard |
Dimensions – M12
