| Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
 |
| Place of Origin: | China |
| Brand Name: | FESTO |

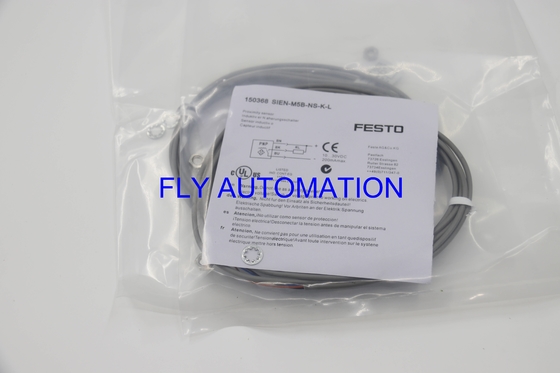

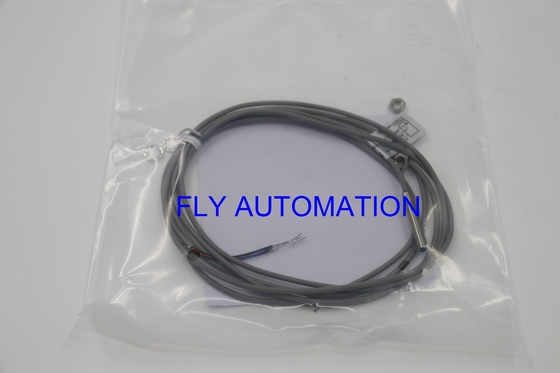

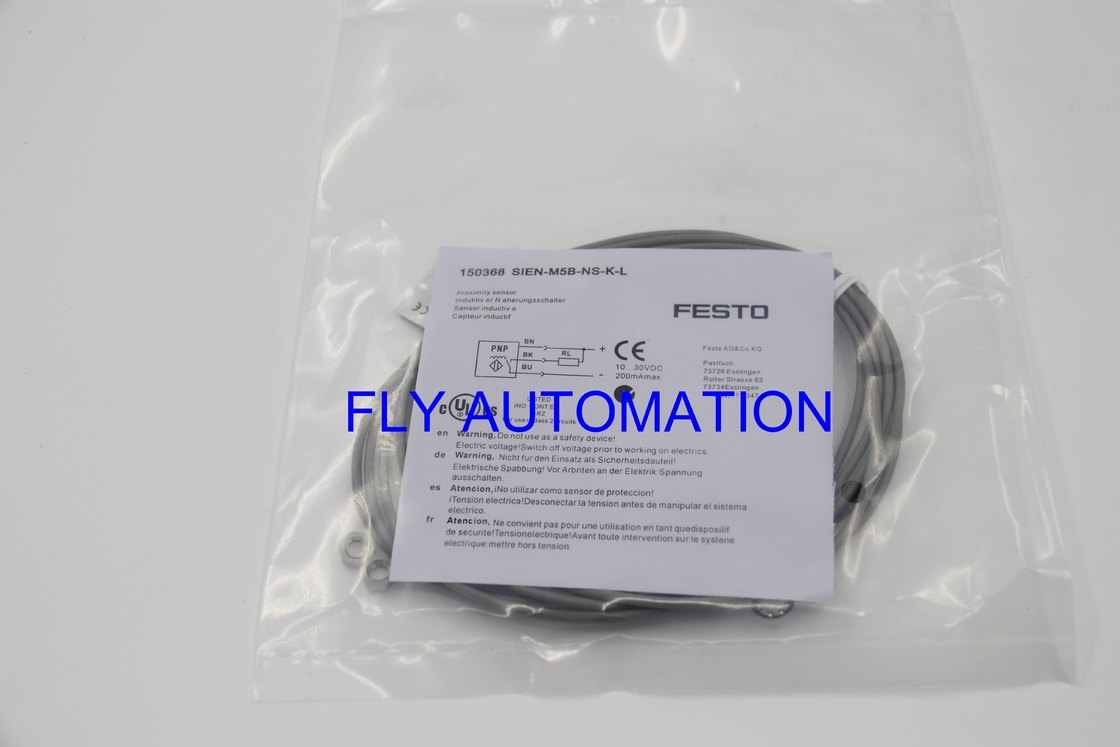

| Model Number: | SIEN-M5B-NS-K-L |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD50-60 |
| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 7-10working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500 pcs per month |
| Type: | SIEN-M5B-NS-K-L | Part No: | 150368 |
|---|---|---|---|
| Brand: | FESTO | Weight: | 35 G |
| Conforms To Standard: | EN 60947-5-2 | Switching Output: | NPN |
| High Light: | Pneumatic System Components SIEN-M5B-NS-K-L,150368 Festo Proximity Sensor,Festo Pneumatic Proximity Sensor |
||
About product
1.Round design.
2.Active surface.
3.Switching output:NPN.
4.Switching element function:N/O contact.
5.Standard switching distance.
Technical Data
| Conforms to standard | EN 60947-5-2 |
| Symbol | 00991704 |
| Approval | RCM trademark c UL us listed (OL) |
| CE mark (see declaration of conformity) | To EU EMC Directive |
| Note on materials | RoHS-compliant |
| Rated operating distance | 0.8 mm |
| Ambient temperature | -25°C-70°C |
| Repetition accuracy with constant conditions | 0.01 mm |
| Switching output | NPN |
| Switching element function | N/O contact |
| Max. switching frequency | 5000 Hz |
| Max. output current | 200 mA |
| Short circuit current rating | Pulsed |
| Reverse polarity protection | For all electrical connections |
| Electrical connection | 3-wire Cable |
| Cable length | 2.5 m |
| Material cable sheath | TPE-U(PUR) |
| Size | M5x0.5 |
| Tightening torque | 1.5 Nm |
| Mounting type | Flush |
| Product weight | 33.6 g |
| Material housing | PA High-alloy stainless steel |
| Switching status indication | Yellow LED |
| Ambient temperature with moving cable | -5°C-70°C |
| Degree of protection | IP67 |
| Immunity to surge | 1 kV |
| Corrosion resistance class CRC | 4 - Very high corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Pollution degree | 3 |
| Additional information for sensor selection | with standard sensing distance |
| Electrical output | NPN |
| Selection of sensor design | Standard |
There are many models . Please hurry to me!
