| Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
 |
| Place of Origin: | China |
| Brand Name: | FESTO |
| Model Number: | QS-10-8 |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | EXW USD1-2 |
| Packaging Details: | plastic bag, carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 8000 pcs per week |
| Specifications: | QS-10-8 | Order No: | 153039 |
|---|---|---|---|
| Brand: | FESTO | Product Weight: | 14 G |
| Colour Of Release Ring: | Blue | Material Housing: | PBT |
| High Light: | PBT Pneumatic Tube Push In Connector,153039 Push In Connector,Pneumatic Tube Fittings QS-10-8 |
||
About product
1.Color:Blue
2.Note on operating and pilot medium:Lubricated operation possible
3.Note on materials: RoHS-compliant
4.Material tubing clamp component:High-alloy stainless steel
5.Material release ring:POM
Product Technical Data
| Size | Standard |
| Nominal size | 6.5 mm |
| Mounting position | optional |
| Design | Push-pull principle |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Product weight | 14 g |
| Pneumatic connection, port 1 | For tubing outer diameter of 10 mm |
| Pneumatic connection, port 2 | For tubing outside diameter of 8 mm |
| Colour of release ring | Blue |
| Note on materials | RoHS-compliant |
| Material housing | PBT |
| Material release ring | POM |
| Material tubing seal | NBR |
| Material tubing clamp component | High-alloy stainless steel |

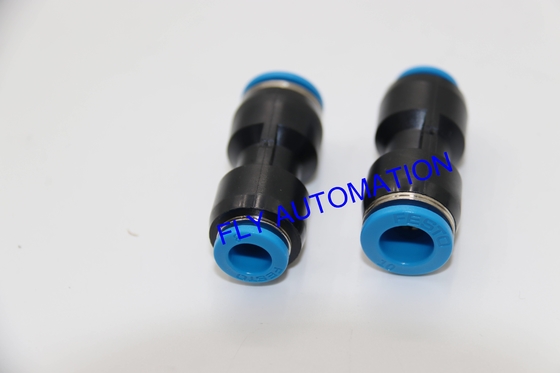

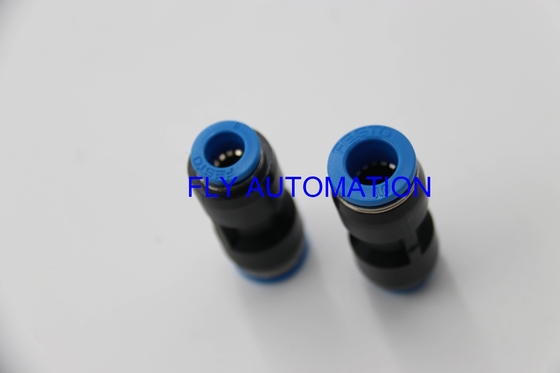

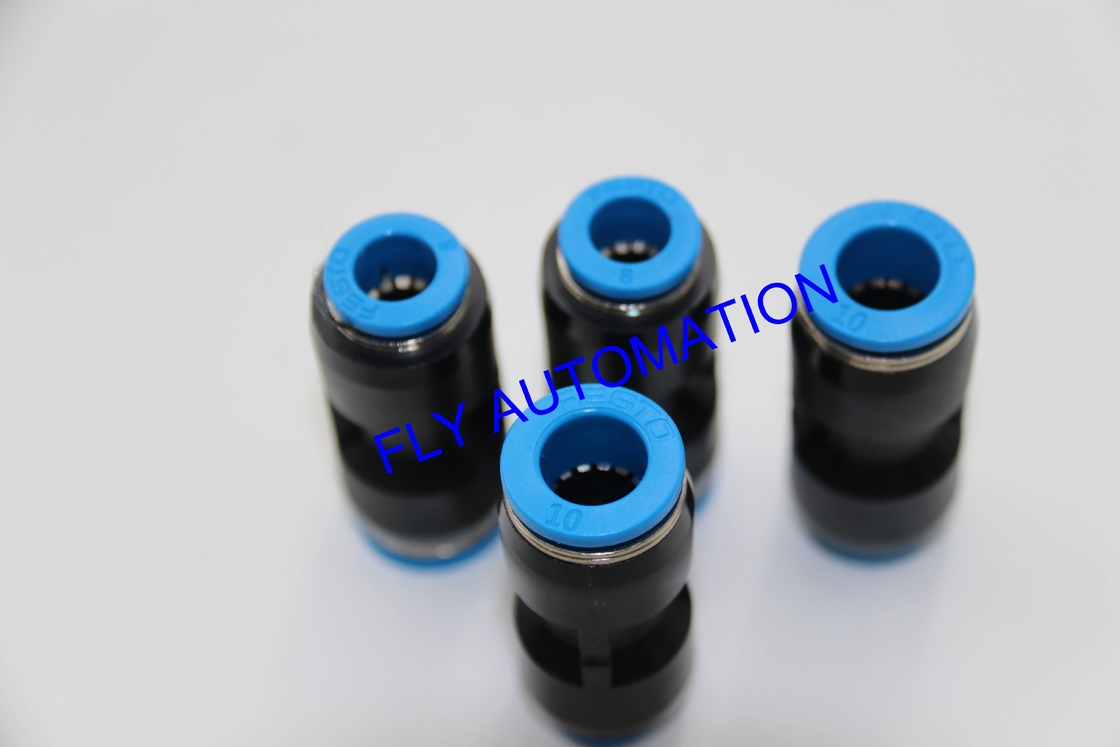

Package product pictures
There are so many models, best price and fast delivery time. Welcome to enquiry and contact with me.Wait for you!
Contact Person: Jaren
Tel: 0086-15257858856
Fax: 86-152-57858856
