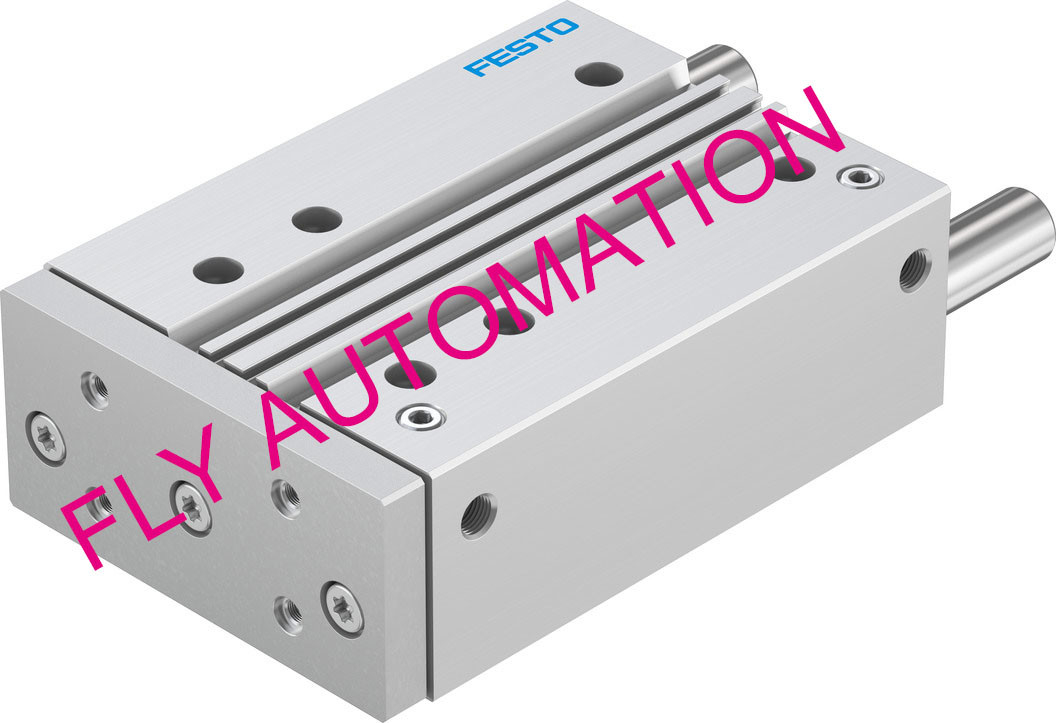

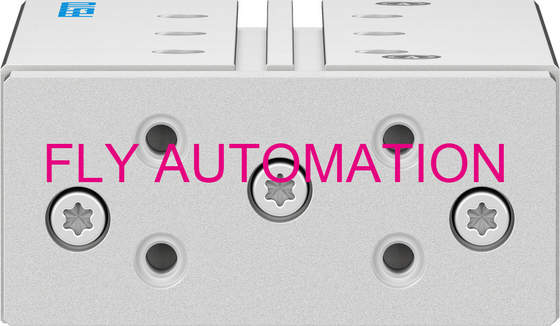

GTIN4052568013370 Pneumatic Air Cylinders Guided Drive DFM-63-160-P-A-GF 170883

GTIN4052568013370 Pneumatic Air Cylinders Guided Drive DFM-63-160-P-A-GF 170883

  • GTIN4052568013370 Pneumatic Air Cylinders Guided Drive DFM-63-160-P-A-GF 170883
  • GTIN4052568013370 Pneumatic Air Cylinders Guided Drive DFM-63-160-P-A-GF 170883
GTIN4052568013370 Pneumatic Air Cylinders Guided Drive DFM-63-160-P-A-GF 170883
Product Details:
Place of Origin: China
Brand Name: FESTO
Model Number: DFM-63-160-P-A-GF
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: EXW USD400-450
Packaging Details: Plastic bag, Carton
Delivery Time: 10-15 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 50 pcs per month
Contact Now
Detailed Product Description
Part No: 170883 Brand: FESTO
Type: DFM-63-160-P-A-GF GTIN: 4052568013370
Product Weight: 8906 G Pneumatic Connection: G1/4
Highlight:

170883 Pneumatic Air Cylinders

,

Elastic Cushioning Rings Guided Drive

,

G1/4 Pneumatic Air Cylinders

FESTO Guided drive DFM-63-160-P-A-GF 170883 GTIN4052568013370 Pneumatic Air Cylinders



About Product

1.High rigidity thanks to large-diameter guide rods and four plain-bearing bushes.

2.Simple, fast, space saving and tamper proof.

3.Simple installation.

4.A variety of cylinder mounting accessories are available and flexible.

5.The materials used and the precise manufacturing process make the DFM series durable.



Technical Data

Stroke 160 mm
Piston diameter 63 mm
Operating mode, drive unit Yoke
Cushioning Elastic cushioning rings/plates at both ends
Mounting position optional
Guide Plain-bearing guide
Design Guidance
Position detection Via proximity switch
Symbol 00991737
Max. speed 0.6 m/s
Mode of operation Double-acting
Corrosion resistance class CRC 1 - Low corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Ambient temperature -20°C-80°C
Product weight 8906 g
Pneumatic connection G1/4
Note on materials RoHS-compliant
Material cover Wrought aluminium alloy
Material seals NBR
Material housing Wrought aluminium alloy
Material piston rod High-alloy stainless steel



Another size as below

Type Order no Weight(g) Price
DFM-63-25-P-A-GF 170878 4470 USD400-450
DFM-63-50-P-A-GF 170879 5243 USD400-450
DFM-63-80-P-A-GF 170880 6287 USD400-450
DFM-63-100-P-A-GF 170881 6904 USD400-450
DFM-63-125-P-A-GF 170882 7824 USD400-450
DFM-63-160-P-A-GF 170883 8906 USD400-450
DFM-63-200-P-A-GF 170884 10142 USD400-450



Basic drive with strokes of up to 200 mm

GTIN4052568013370 Pneumatic Air Cylinders Guided Drive DFM-63-160-P-A-GF 170883

With the Festo Core Range, we have selected the most important products and functions from our broad product catalogue, and added the quickest delivery.The Core Range off ers you the best value for your automation tasks.



A wide range of products with excellent prices. Please hurry to me!
