| Place of Origin: | China |
| Brand Name: | FESTO |

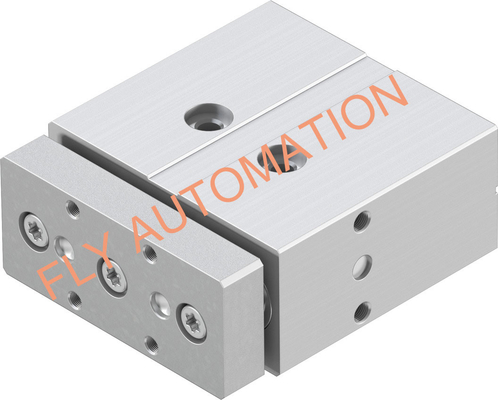

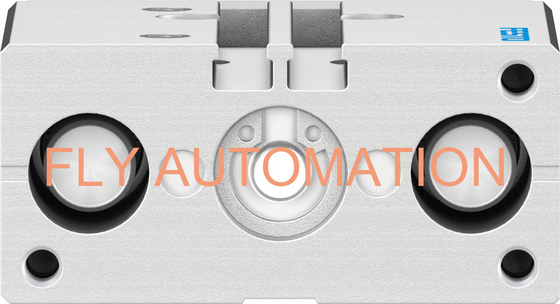

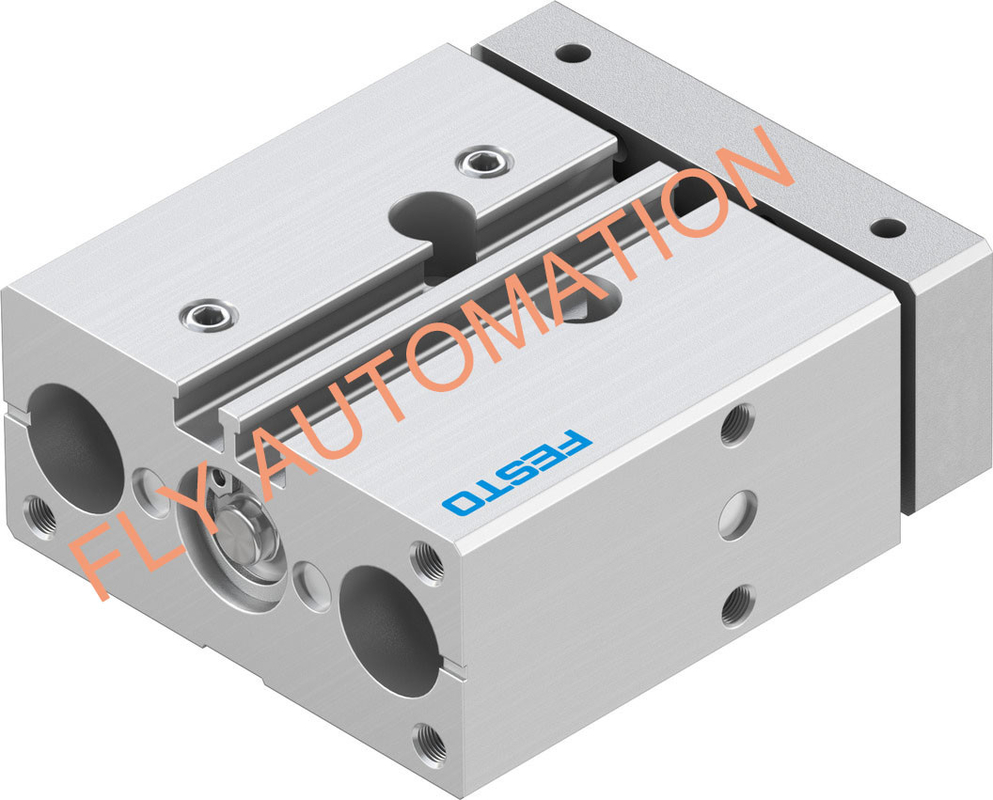

| Model Number: | DFM-12-20-P-A-GF |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD50-60 |
| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 10-15working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 100 pcs per month |
| Type: | DFM-12-20-P-A-GF | Part No: | 170825 |
|---|---|---|---|
| Brand: | FESTO | GTIN: | 4052568013103 |
| Product Weight: | 392 G | Pneumatic Connection: | M5 |
| High Light: | Guided Compact Pneumatic Cylinder,Guided Drive DFM-12-20-P-A-GF,Guided Drive 170825 |
||
Advantage
1.High rigidity.
2.Maintenance-free.
3.Easy to operate.
4.Long service life.
5.durable.
Technical Data
| Stroke | 20 mm |
| Piston diameter | 12 mm |
| Operating mode, drive unit | Yoke |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Guide | Plain-bearing guide |
| Design | Guidance |
| Position detection | Via proximity switch |
| Symbol | 00991737 |
| Max. speed | 0.8 m/s |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C-80°C |
| Product weight | 392 g |
| Pneumatic connection | M5 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy |
| Material seals | NBR |
| Material housing | Wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel |
Other size as follow
| Type | Order no | Weight(g) | Price |
| DFM-12-10-P-A-GF | 170824 | 344 | USD50-60 |
| DFM-12-20-P-A-GF | 170825 | 392 | USD50-60 |
| DFM-12-25-P-A-GF | 170826 | 411 | USD50-60 |
| DFM-12-30-P-A-GF | 170827 | 435 | USD50-60 |
| DFM-12-40-P-A-GF | 170828 | 497 | USD50-60 |
| DFM-12-50-P-A-GF | 170829 | 544 | USD50-60 |
| DFM-12-80-P-A-GF | 170830 | 688 | USD50-60 |
| DFM-12-100-P-A-GF | 170831 | 779 | USD50-60 |
Mounting options
A wide range of products with excellent prices. Please hurry to me!
