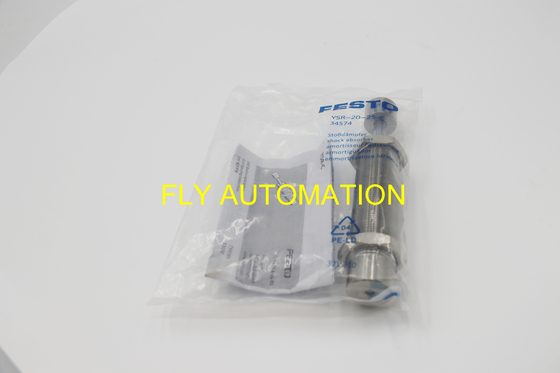

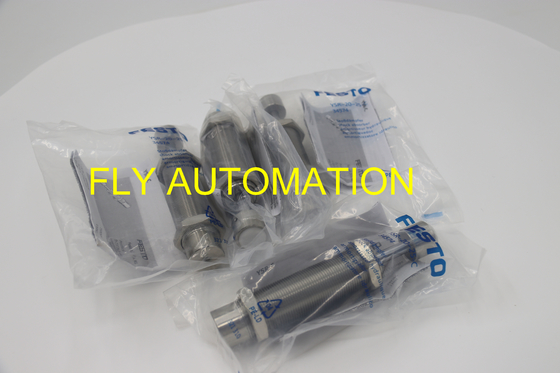

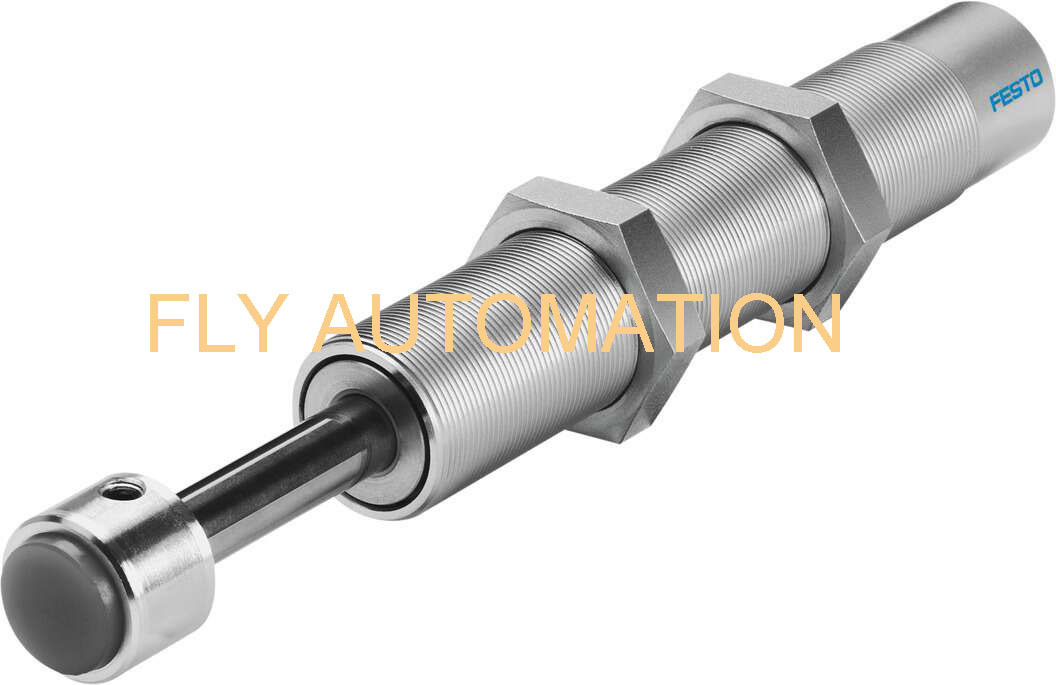

Galvanised Steel Shock Absorber Pneumatic Air Cylinders YSR-20-25-C 34574

Galvanised Steel Shock Absorber Pneumatic Air Cylinders YSR-20-25-C 34574

  • Galvanised Steel Shock Absorber Pneumatic Air Cylinders YSR-20-25-C 34574
  • Galvanised Steel Shock Absorber Pneumatic Air Cylinders YSR-20-25-C 34574
  • Galvanised Steel Shock Absorber Pneumatic Air Cylinders YSR-20-25-C 34574
Galvanised Steel Shock Absorber Pneumatic Air Cylinders YSR-20-25-C 34574
Product Details:
Place of Origin: China
Brand Name: FESTO
Model Number: YSR-20-25-C
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD80-90
Packaging Details: Plastic bag, Carton
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100 pcs per week
Contact Now
Detailed Product Description
Part No: 34574 Type: YSR-20-25-C
GTIN: 4052568010058 Stroke: 25 Mm
Max. Impact Speed: 3 M/s Material Seals: NBR
Highlight:

Galvanised Steel Shock Absorber

,

Pneumatic Air Cylinders Shock Absorber

,

34574 Air Shock Absorber

FESTO Shock absorber YSR-20-25-C 34574 GTIN4052568010058 Pneumatic Air Cylinders

Features

1.Universal, self-adjusting screw-in hydraulic shock absorber.

2.With path-controlled flow control function on a short stroke.

3.Hydraulic shock absorber with path-controlled flow control function.

4.Short cushioning stroke.

5.Suitable for rotary drives.

6.The best partner of the cylinder.

7.Precision machining,compact structure.



Technical Data

Size 20
Stroke 25 mm
Cushioning Self-adjusting
Mounting position optional
Position detection Without
Symbol 00991497
Max. impact speed 3 m/s
Reset time at room temperature 0.3 s
Reset time at min. ambient temperature 1 s
Mode of operation Single-acting Pushing
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B2-L
Ambient temperature -10°C-80°C
Cushioning length 25 mm
Max. stop force 3000 N
Max. energy consumption per stroke 60 J
Max. energy consumption per hour 92000 J
Max. residual energy 0.32 J
Reset force 10 N
Product weight 318 g
Type of mounting Via lock nut
Note on materials RoHS-compliant
Material seals NBR
Material housing Galvanised steel
Material piston rod High-alloy steel


Other type as follow

Type Order no GTIN Weihght Price
YSR-4-4-C 540060 4052568178376 5 USD40-50
YSR-5-5-C 158981 4052568071462 8 USD30-40
YSR-7-5-C 160272 4052568012205 16 USD30-40
YSR-8-8-C 34571 4052568010027 32 USD30-40
YSR-10-10-C 191199 4052568150518 51 USD80-90
YSR-12-12-C 34572 4052568010034 74 USD40-50
YSR-16-20-C 34573 4052568010041 185 USD80-90
YSR-20-25-C 34574 4052568010058 318 USD80-90
YSR-25-40-C 160273 4052568128296 600 USD120-130
YSR-32-60-C 160274 4052568128302 1220 USD180-200



Data sheet

Dimensions

Galvanised Steel Shock Absorber Pneumatic Air Cylinders YSR-20-25-C 34574



Galvanised Steel Shock Absorber Pneumatic Air Cylinders YSR-20-25-C 34574
Festo is a world leader in automation technology and a global market leader in technology education and further education. We combine industry and education to help customers around the world improve their productivity.



The specifications are complete. I have everything you want,please call me immediately!
