| Place of Origin: | China |
| Brand Name: | FESTO |
| Model Number: | FRC-3/4-D-5M-MAXI-A |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD250-300 |
| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 7-10working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 300 pcs per month |

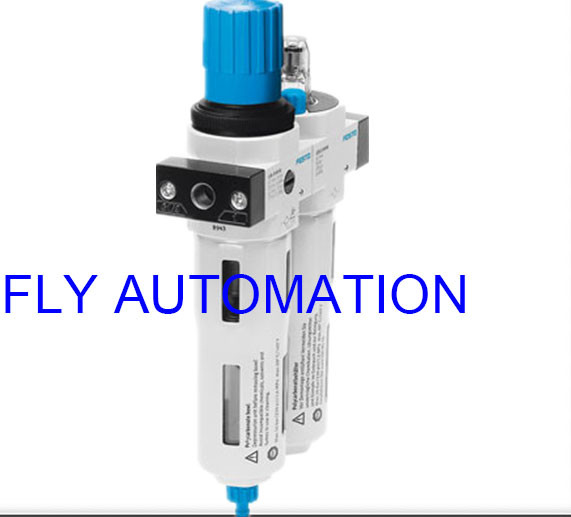

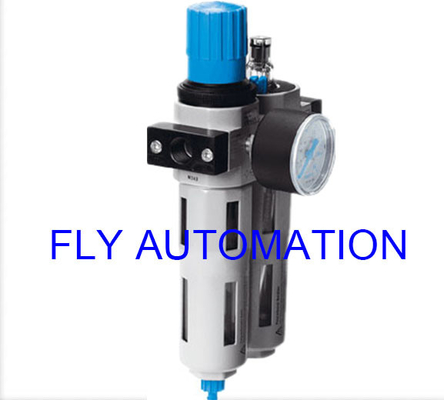

| Part No: | 162784 | Type: | FRC-3/4-D-5M-MAXI-A |
|---|---|---|---|
| Brand: | FESTO | Weight: | 2390 G |
| Pneumatic Connection, Port 1: | G3/4 | Pneumatic Connection, Port 2: | G3/4 |
| High Light: | 162784 Pneumatic System Components,G3/4 Pneumatic Service Unit,PC Festo Air Service Unit |
||
About product
1.Lockable rotary knob.
2.Two pressure regulation ranges: 0.5°... 7 bar and 0.5 ... 12 bar.
3.Two pressure gauge connections for different installation options.
4.Choice of manual, semi-automatic or fully automatic condensate drain.
Technical Data
| Size | Maxi |
| Series | D |
| Actuator lock | Rotary knob with detent |
| Condensate drain | Fully automatic |
| Max. condensate volume | 80 ml |
| Bowl guard | Metal bowl guard |
| Symbol | 00991599 |
| Operating pressure | 2 bar ... 12 bar |
| Pressure regulation range | 0.5 bar ... 12 bar |
| Max. pressure hysteresis | 0.4 bar |
| Standard nominal flow rate | 7000 l/min |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:9:-] Inert gases |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Air purity class at output | Compressed air to ISO 8573-1:2010 [6:8:-] Inert gases |
| Media temperature | -10°C-60°C |
| Ambient temperature | -10°C-60°C |
| Product weight | 2390 g |
| Type of mounting | In-line installation With accessories |
| Pneumatic connection, port 1 | G3/4 |
| Pneumatic connection, port 2 | G3/4 |
| Note on materials | RoHS-compliant |
| Material housing | Die-cast zinc |
| Material bowl | PC |
