Diaphragm itself operating temperature range and pressure range depends on the types of plastic , fabric and structure. The diaphragm can be operated at -50 to 100 ° C , 0.4 ~ 0.8MPa conditions ; fluorine rubber and silicone rubber diaphragm 232 can work in -80 degrees Celsius . Epichlorohydrin rubber diaphragm can work under pressure 0.4 ~ 0.8MPa , air tightness, anti-aging , longevity and engine overhaul life equal.
Produce Structure
Tract: Valve’s crust and close over is made of aluminum alloy that’s formed by pressing die, good appearance, heavy intensity, no gas leak. Structure of connection of two back pressing air of interval channel of valve is reasonable. this design make “ubmerged-type” true due to opening and closing face of valve locate in air pocket. Air from pocket can come in blowing cannulation straightly. It accord request with low air pressure and big quantity of blowing.
Electromagnetically operated valve: Control pulse valve by remoting. With trube base coil and DIN electrical outlet, conwiniet inner setting or outer setting, waterproof and dustproof for protect. Upto JB/t5916-91 standard.
Membrane patch: Adopt dish-type, and big moving. Valve can be opened in 0.08-0.1 second. You can choice synthetic rubber membrane patch made of import materials in frigid climate. Membrane patch can be longest used when working temperature is from -40℃ to -55℃.
1, Technical Paremeter
1Acclimation:
1) Temperature: -10~+55℃;
2) Working Medium: clean air
2Humidity: less than 85%
3Blowing Supplier Pressure: it’s better 0.2~0.3Mpa,or0.3~0.6Mpa.
4Blowing Tolerance: when blowing supplier pressure is 0.25Mpa and blowing time is 0.1 second.
Photo Show

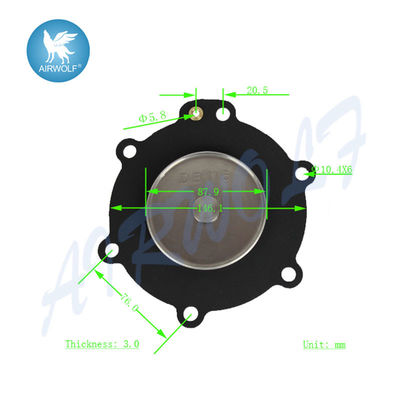

Drawings size:
Features
The 200 series is a range of diaphragm valve suitable for dust collector applications, in particular for reverse pulse jet filter cleaning of filter bags, cartridges, envelope filter, ceramic filters and sintered metal fibre filters, The 200 series valve has the inlet port at 90° to the outlet port. The 200 series range comprises 7 models, from 3/4" to 3", all with threaded femal gas connections. The 1 1/2" model is available in the single ans double diaphragm versions, while the 2", 2 1/2" and 3" are all double diaphragm valves. The special design assures an extremely fast opening time, high flow rates and easy installations. The valves are constructed in die-cast aluminium and have an anodised pretection treatment which protect them from corrosive and environmental agents, Bolts and screws are in stainless steel. The 200 series is available in the following versions:
VNP, with integrated pilot
VEM, with remote pneumatic connection
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.
Competitive Advantage
| Our product features |
Our Services Guarantee: |
| 1) Competitive price |
1) Prompt respond (Reply with 24 hours) |
| 2) Good quality |
2) Free Samples (Customer pay for the delivery cost) |
| 3) Professional Packaging |
3) Registration support. |
| 4) Produce according to Customers’ instruction |
4) Photos/videos are available during production. |
| 5) None delay shipment |
5) Loading inspection, and send loading photos before shipment. |
FAQ
1. When your company establish?
FLY AUTOMATION Was established in 2010, we have been working in agrochemical field for about 26 years, we have a professional production of process, committed to providing customers with the most satisfactory service.
2. Are you a trader or manufacturer? Do you have factory?
We are a solenoid valve manufacturer, we have the ability of mass production . we have our own developing and designing team, which ensure our own technological and specific products for customers.
3. Where’s your factory located? Can we visit your factory?
Our company is in Xikou town,Fenghua city,Zhejiang Province, China,Which is near by Ningbo city,
Customers will be always welcomed to visit our company and our factories.Please contact us your schedule,we will arrange to pick up you and visit our factory.
4. How do you make the quality guarantee?
We have our own quality control center, we have advanced equipments for the inspections. We can guarantee every product will be tested after production.
5. Can you support the specific productions?
We can design and develop the products of customer's requirement, if you have the specific products, please send us a sample, we will develop it for you.
6. What's the transportation service?
Usually, we will be according your address, choose the fastest and cheapest way, the DHL,TNT,Fedex or China post express all can support.
