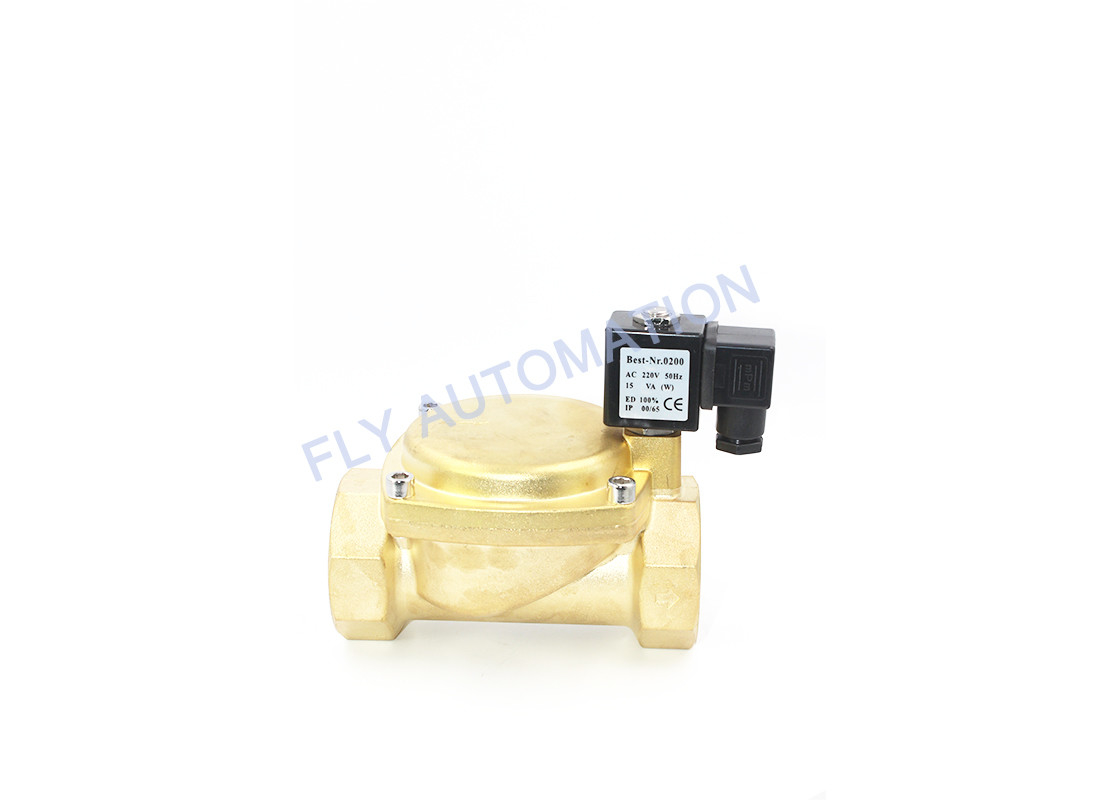

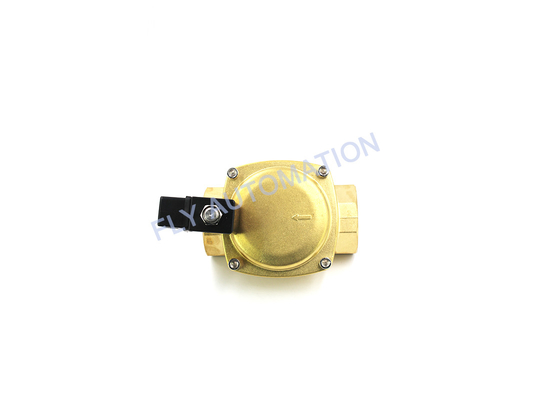

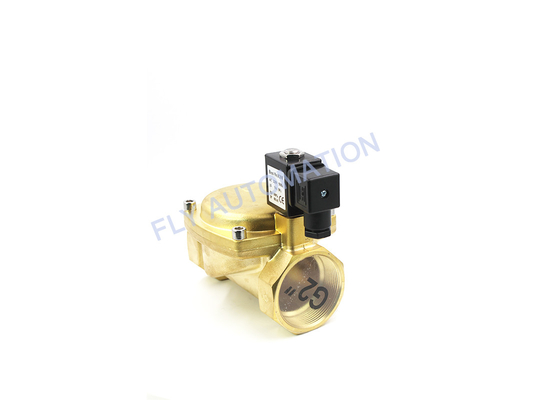

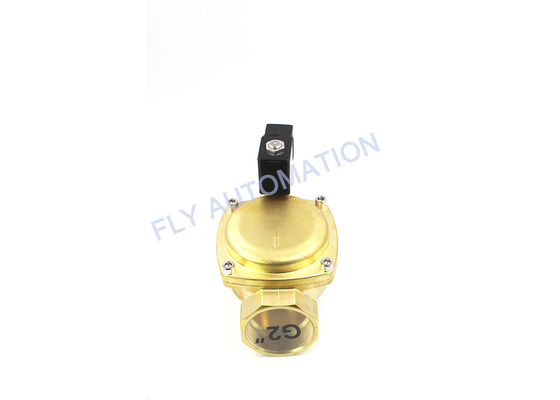

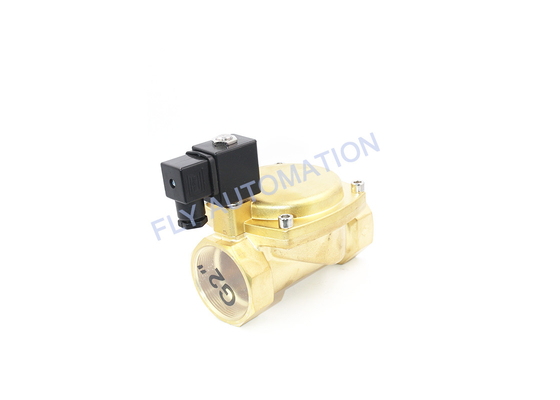

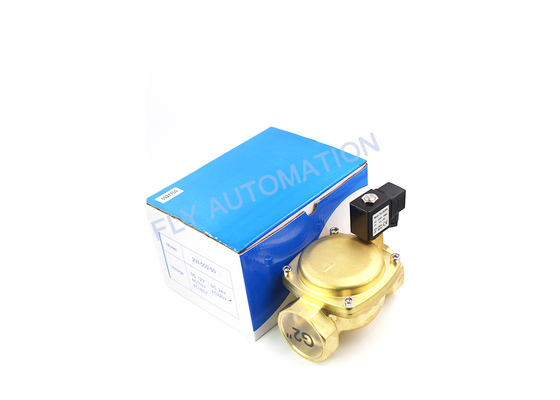

G2'' 0927700 AC220V Smc Pneumatic Solenoid Valve

G2'' 0927700 AC220V Smc Pneumatic Solenoid Valve

  • G2'' 0927700 AC220V Smc Pneumatic Solenoid Valve
  • G2'' 0927700 AC220V Smc Pneumatic Solenoid Valve
  • G2'' 0927700 AC220V Smc Pneumatic Solenoid Valve
  • G2'' 0927700 AC220V Smc Pneumatic Solenoid Valve
  • G2'' 0927700 AC220V Smc Pneumatic Solenoid Valve
  • G2'' 0927700 AC220V Smc Pneumatic Solenoid Valve
G2'' 0927700 AC220V Smc Pneumatic Solenoid Valve
Product Details:
Place of Origin: China
Brand Name: TECHNO
Certification: ISO Standand
Model Number: 0927700
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: Plastic bags, boxes, cartons, Pallets or As customer's requirement
Delivery Time: 7 working Days
Payment Terms: T/T, Western Union, MoneyGram Paypal
Supply Ability: 50 PCS Per Week
Contact Now
Detailed Product Description
Pipe Size: 2'' Thread: BSP
Media: Water, Gas, Oil Voltage: DC24 12V AC110V 220V
Materail: Brass L: 150mm
W: 110mm H: 146mm
Highlight:

G2'' Smc Pneumatic Solenoid Valve

,

0927700 Smc Pneumatic Solenoid Valve

,

AC220V Smc Pneumatic Solenoid Valve

G2'' 0927700 2/2 Way Brass Diaphragm Control Electric Valve Normally Closed Large SizeAC220V







Products description:

2 inch size normally closed pilot acting brass water air 220v solenoid valve

1. Port size ZG 2", Female thread

2. Valve body material: Brass

3. Fit for water, air.

4.Fluid pressure: 1~16bar

5. Function type: Normally closed, 2/2 way

Model VP-0927500 VP-0927600 VP-0927700
Port size ZG 1-1/4” ZG 1-1/2” ZG 2”
Orifice size (mm) 32 40 50
Fluid pressure 1~16bar
Operating Temperature NBR diaphragm: -5~80C; EPDM/Viton: -5~120C
Standard thread BSPT=ZG; also have NPT and G thread.
Standard Diaphragm

NBR; also can offer EPDM and Viton

220v solenoid valve
Voltage Please leave the information of voltage when you place the order



MODEL 0927000 0927200 0927300 0927400 0927500 0927600 0927700
PORT SIZE G1/4'' G1/2'' G3/4'' G1'' G 1 1/4'' G1 1/2'' G2''
BORE(mm) 8 12 20 25 32 40 50
KV VALUE 1.15 1.70 5.1 5.35 20.0 25.0 43.0
WEIGHT(kg) 0.70 0.70 1.20 1.30 2.70 2.70 3.50
PRESSURE 0.07~1.6MPa 0.1~1.6MPa
MEDIUM AIR,WATER(OIL,STEAM)
TYPE NORMAL CLOSED
BODY MATERIAL BRASS
SEAL MATERIAL NBR/VITON(SILICAL)
TEMPERATURE NBR:-5~80C (VITON:-20~150C)
COIL 0200 DIN43650A



MODEL PIPE NOMINAL THREADDIAMETER FLOW DIAMETER L W H
927200(DN15) G1/2" 20mm 1 5mm 54mm 40mm 1 04mm
927300(DN20) G3/4" 25mm 20mm 82mm 52mm 117mm
927400(DN25) G1" 32mm 25mm 83mm 55mm 1 19mm
927500(DN32) G1-1/4" 40mm 3 2mm 1 14mm 82mm 1 28mm
927600(DN40) G1-1/2" 48mm 40mm 122mm 98mm 133mm
927700(DN50) G2" 58mm 50mm 1 50mm 110mm 1 46mm



G2'' 0927700 AC220V Smc Pneumatic Solenoid ValveG2'' 0927700 AC220V Smc Pneumatic Solenoid ValveG2'' 0927700 AC220V Smc Pneumatic Solenoid Valve

G2'' 0927700 AC220V Smc Pneumatic Solenoid ValveG2'' 0927700 AC220V Smc Pneumatic Solenoid ValveG2'' 0927700 AC220V Smc Pneumatic Solenoid ValveG2'' 0927700 AC220V Smc Pneumatic Solenoid ValveG2'' 0927700 AC220V Smc Pneumatic Solenoid ValveG2'' 0927700 AC220V Smc Pneumatic Solenoid Valve

0927 Series Pilot Diaphragm Solenoid Valve,High Pressure High Temperature Normally Closed Or Open

Solenoid Water Valve,0~16bar



Model: 0927 Series

Pipe size:1/4", 3/8", 1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”

Thread: BSP

Media: water, gas, Oil

Type:
Normally closed (closed when de-energizes, open when energized)
Normally Opene (opened when de-energizes, closed when energized)

Working pressure : 1-16bar

Operating: Pilot

Voltage: AC220V/AC24V/DC24V/DC12V

Materail: Brass

Seal: NBR (Medium temperature: -5-80 Degree Centigrade)

Tag:

pulse solenoid valve,

pneumatic operated valves,

pneumatic diaphragm valves
