Place of Origin: | China |
Brand Name: | FESTO |

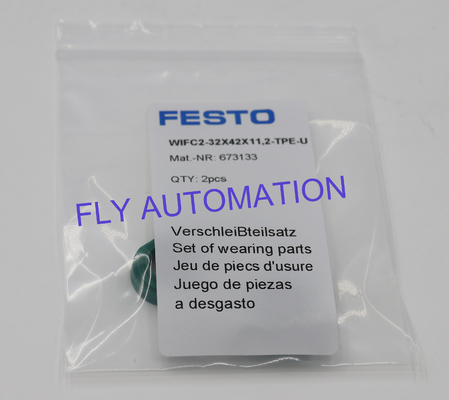

Model Number: | FESTO,WIFC2-32X42X11,2-TPE-U,673133 |
Minimum Order Quantity: | 1pc |
---|---|
Price: | EXW USD15-USD25 |
Packaging Details: | carton,OPP bag |
Delivery Time: | 7-10 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 8000 pcs per month |
Material: | Polyurethane | Color: | Green |
---|---|---|---|
Model: | WIFC2-32X42X11,2-TPE-U | Specifications: | 32X42X11,2 |
Brand: | FESTO | Order No: | 673133 |
High Light: | WIFC2-32X42X11 Wiper Seal,2-TPE-U Wiper Seal,Pneumatic Air Cylinder Wiper Ring |

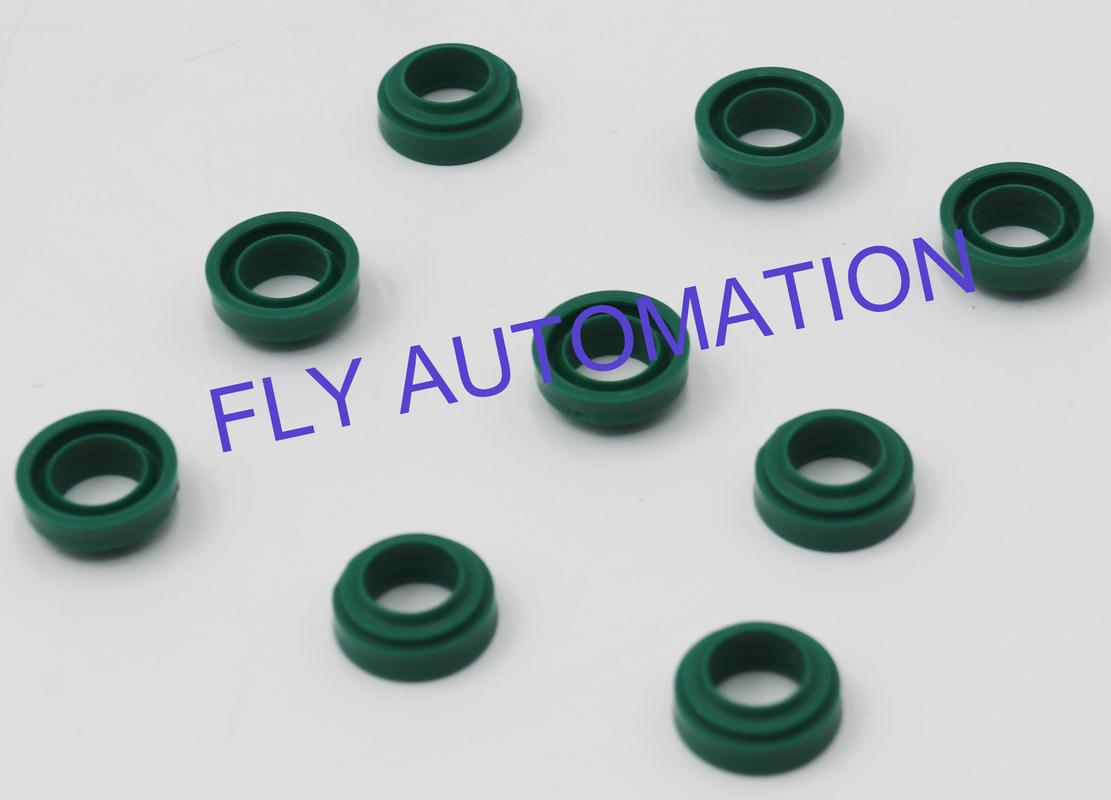

Material:Polyurethane with Shore A hardness of 93,green
Scope of application
Working pressure:≤16Bar
Working temperature:-35-+80℃
Surface velocity:≤1m/s
The seal is a snap ring+dust proof+rod seal trinity pneumatic rod seal, which is fast in installation
Green polyurethane material, with good dry friction resistance, weather resistance and wear resistance.
Careful installation and initial lubrication are important means to ensure the service life of seals.
Installation steps
1.Please align the side with words in the groove with the inside of the cylinder, and do not install it reversely.
2.Push the sealing ring into the cylinder head. An audible click indicates that it has entered the installation position.
3.Apply a proper amount of grease on the inner diameter of the seal ring to improve the service life of the seal ring.
4.Wrap a proper amount of adhesive tape around the piston rod thread to avoid scratching the seals when the piston rod is inserted.
5.Insert the piston rod and fix the cylinder head.
Other model information is as follows:
Specifications | Order no | Size | Coler | EXW price | Delivery date |
FESTO,WIFC2-25X35X11,2-TPE-U | 232938 | 25X35X11,2 | green | USD15-25 | 3-5 working days |
FESTO,WIFC2-20X30X10,7-TPE-U | 229860 | 20X30X10,7 | green | USD10-15 | 3-5 working days |
FESTO,WIFC2-32X42X11,2-TPE-U | 673133 | 32X42X11,2 | green | USD15-25 | 3-5 working days |
FESTO,WIFC2-16X26X10,7-TPE-U | 232275 | 16X26X10,7 | green | USD10-15 | 3-5 working days |
FESTO,WIFC2-12X22X10,7-TPE-U | 240992 | 12X22X10,7 | green | USD10-15 | 3-5 working days |
