| Place of Origin: | China |
| Brand Name: | FESTO |

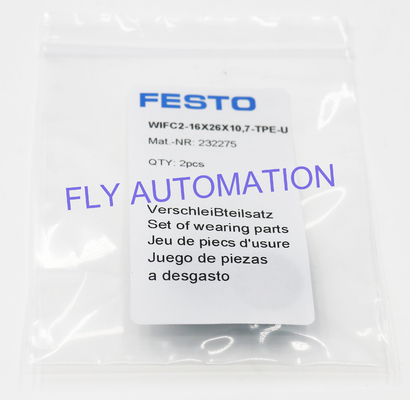

| Model Number: | FESTO,WIFC2-16X26X10,7-TPE-U,232275,Wiper seal for Pneumatic Air cylinder |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD10-USD15 |
| Packaging Details: | plastic bag, carton，OPP bag |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1800 pcs per week |
| Material: | Polyurethane With Shore A Hardness Of 93 | Working Pressure: | ≤16Bar |
|---|---|---|---|
| Working Temperature: | -35-+80℃ | Surface Velocity: | ≤1m/s |
| Color: | Green | Order No: | 232275 |
| High Light: | 16Bar Cylinder Wiper Seal,7-TPE-U Wiper Ring Seal,Polyurethane Pneumatic Air Cylinder Wiper Seal |
||
Material:Polyurethane with Shore A hardness of 93
Scope of application
Working pressure:≤16Bar
Working temperature:-35-+80℃
Surface velocity:≤1m/s
Medium:Oily lubricated air and dry air and oil-free air (after initial lubrication assembly).

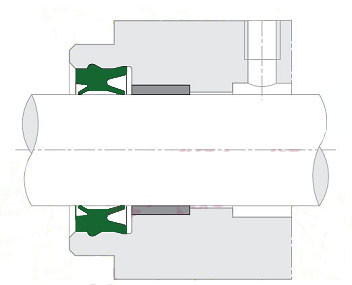

Installation steps:
1.Please align the side with words in the groove with the inside of the cylinder, and do not install it reversely
2.Push the sealing ring into the cylinder head. An audible click indicates that it has entered the installation position
3.Apply a proper amount of grease on the inner diameter of the seal ring to improve the service life of the seal ring
4.Wrap a proper amount of adhesive tape around the piston rod thread to avoid scratching the seals when the piston rod is inserted
5.Insert the piston rod and fix the cylinder head
Other size wiper seal as bellow:
| Specifications | Order no | Size | Coler | EXW price | Delivery date |
| FESTO,WIFC2-25X35X11,2-TPE-U | 232938 | 25X35X11,2 | green | USD15-25 | 3-5 working days |
| FESTO,WIFC2-20X30X10,7-TPE-U | 229860 | 20X30X10,7 | green | USD10-15 | 3-5 working days |
| FESTO,WIFC2-32X42X11,2-TPE-U | 673133 | 32X42X11,2 | green | USD15-25 | 3-5 working days |
| FESTO,WIFC2-16X26X10,7-TPE-U | 232275 | 16X26X10,7 | green | USD10-15 | 3-5 working days |
| FESTO,WIFC2-12X22X10,7-TPE-U | 240992 | 12X22X10,7 | green | USD10-15 | 3-5 working days |
Be attention
Green polyurethane material, with good dry friction resistance, weather resistance and wear resistance.
Careful installation and initial lubrication are important means to ensure the service life of seals.
Higher, better service!
Waiting for you!
