| Place of Origin: | China |
| Brand Name: | FESTO |

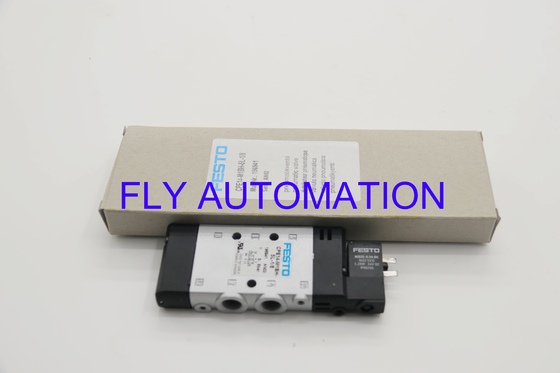

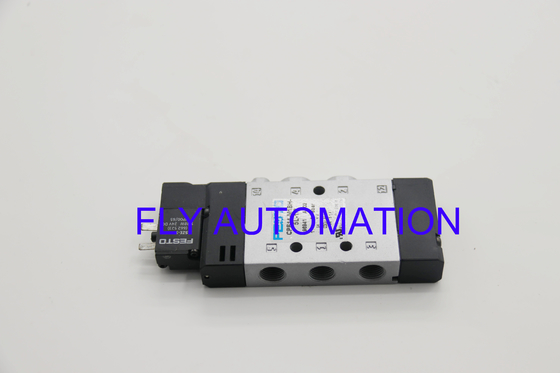

| Model Number: | CPE14-M1BH-5L-1/8 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD50-60 |
| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 pcs per month |
| Type: | CPE14-M1BH-5L-1/8 | Brand: | FESTO |
|---|---|---|---|
| Part No: | 196941 | Product Weight: | 95 G |
| Material Housing: | Die-cast Aluminium | Valve Function: | 5/2-way, Monostable |
| High Light: | FESTO Solenoid Valve CPE14-M1BH-5L-1/8,196941 Pneumatic Solenoid Valves |
||
About product
The solenoid valves CPE, Compact Performance, are distinguished by their minimal width and low power consumption at high flow rates.
Simple manifold design consisting of fixed-grid manifold blocks made from stable aluminium with 2 to 10 valve positions or modular manifold blocks made from durable polymer.
Technical Data
| Valve function | 5/2-way, monostable |
| Type of actuation | Electric |
| Construction width | 14 mm |
| Operating voltage | 24V DC |
| Type of reset | Pneumatic spring |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Product weight | 95 g |
| Pneumatic connection, port 1 | G1/8 |
| Pneumatic connection, port 2 | G1/8 |
| Pneumatic connection, port 3 | G1/8 |
| Pneumatic connection, port 4 | G1/8 |
| Pneumatic connection, port 5 | G1/8 |
| Note on materials | RoHS-compliant |
| Material seals | NBR |
| Material housing | Die-cast aluminium |
Combination of basic valve CPE18 with pilot valve
There are so many models . Please contact with me!
Contact Person: Jaren
Tel: 0086-15257858856
Fax: 86-152-57858856
