Brand Name: | FESTO |
Model Number: | DSNU-32-200-PPV-A |
Minimum Order Quantity: | 1pc |
---|---|
Price: | EXW USD25-35 |
Packaging Details: | plastic bag, carton,OPP bag |
Delivery Time: | 10-15 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 2000 pcs per month |
Type: | DSNU-32-200-PPV-A | Part No: | 196027 |
---|---|---|---|
Brand: | FESTO | Color: | Silver |
Stroke: | 200 Mm | Piston Diameter: | 32 Mm |

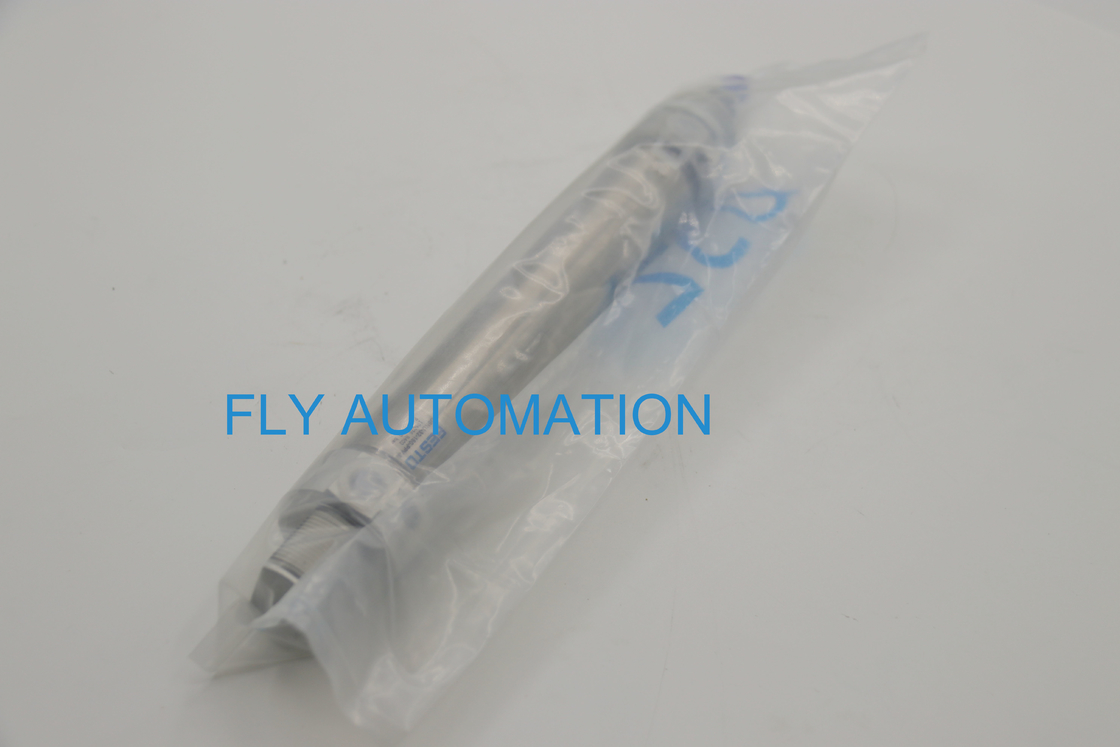

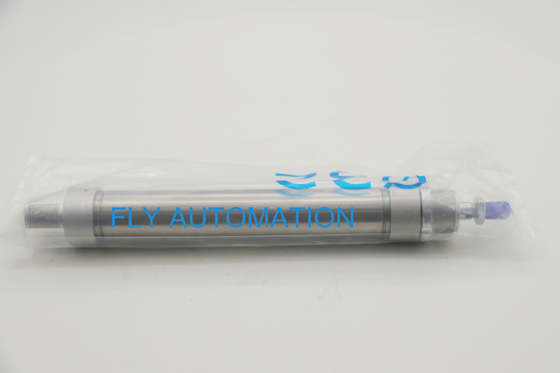

High Light: | DSNU-32-200-PPV-A,196027 FESTO Round Cylinder,Pneumatic Air Cylinders 32mm |
About product
Technical Data
Stroke | 200 mm |
Piston diameter | 32 mm |
Piston rod thread | M10x1.25 |
Cushioning | Pneumatic cushioning, adjustable at both ends |
Mounting position | optional |
Design | Piston Piston rod Cylinder barrel |
Position detection | Via proximity switch |
Symbol | 00991235 |
Mode of operation | Double-acting |
Corrosion resistance class CRC | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 6 according to ISO 14644-1 |
Ambient temperature | -20°C-80°C |
Cushioning length | 14 mm |
Moving mass | 301g |
Product weight | 680 g |
Type of mounting | With accessories |
Pneumatic connection | G1/8 |
Note on materials | RoHS-compliant |
Material cover | Wrought aluminium alloy |
Material seals | NBR TPE-U(PU) |
Material piston rod | High-alloy steel |
Material cylinder barrel | High-alloy stainless steel |
Datasheet
There are so many models,please contact with me.
Contact Person: Jaren
Tel: 0086-15257858856
Fax: 86-152-57858856
