Place of Origin: | China |
Brand Name: | FESTO |

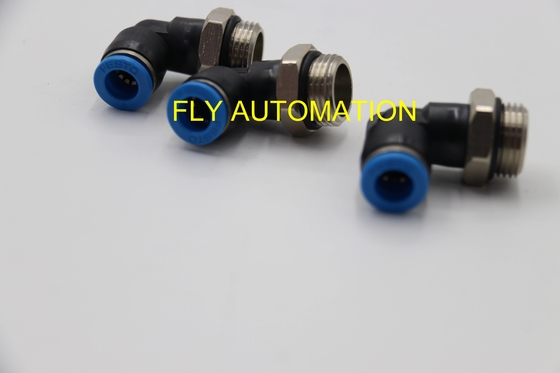

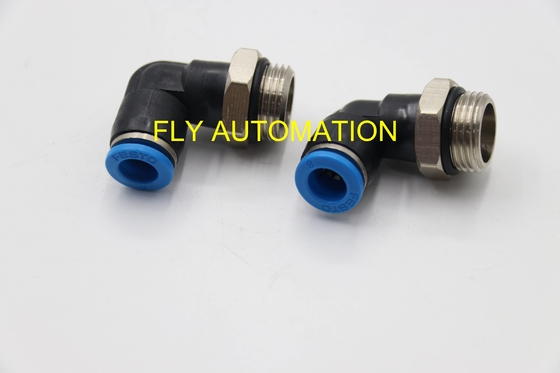

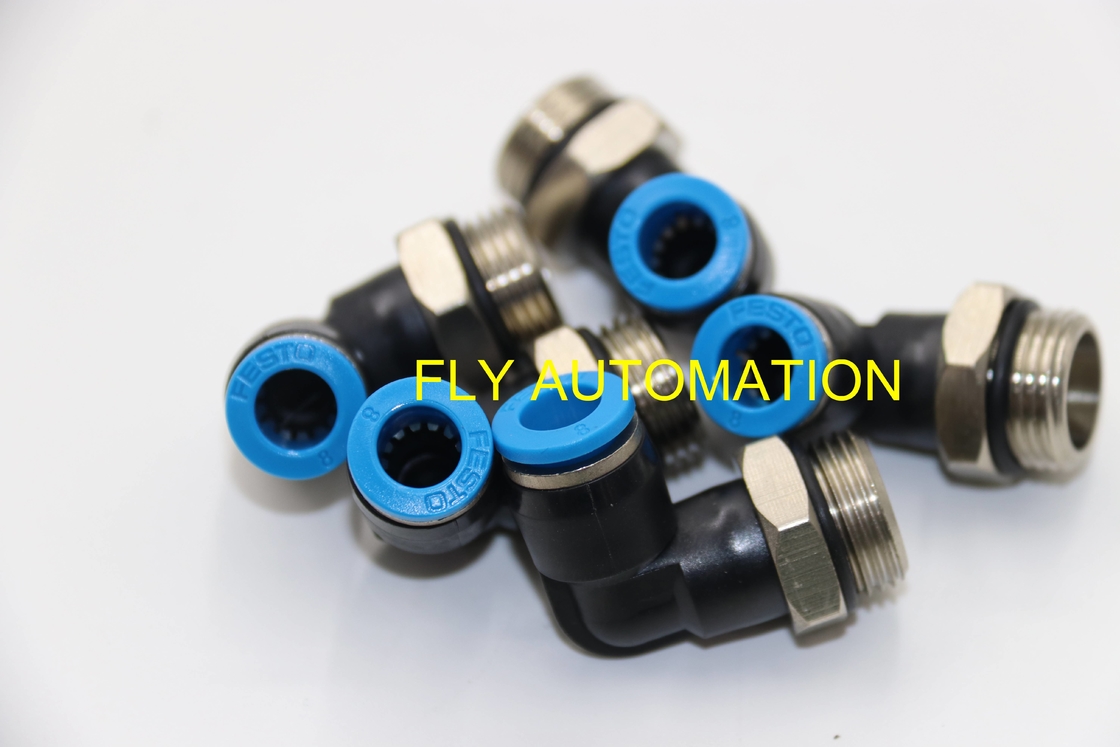

Model Number: | QSL-G3/8-8 |
Minimum Order Quantity: | 1 PCS |
---|---|
Price: | EXW USD3-4 |
Packaging Details: | plastic bag, carton |
Delivery Time: | 7-10 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 8000 pcs per week |
Order No: | 186121 | Brand: | FESTO |
---|---|---|---|
Specifications: | QSL-G3/8-8 | Product Weight: | 30g |
Mounting Position: | Optional | Colour Of Release Ring: | Blue |
High Light: | QSL-G3/8-8,Pneumatic Tube Push In L Fitting,Festo Push In L Fitting |
About product
Pneumatic connection, port 1:Male thread G3/8
Pneumatic connection, port 2:For tubing outside diameter of 8 mm
Note on materials: RoHS-compliant
Product Technical Data
Size | Standard |
Nominal size | 6.7 mm |
Type of seal on screw-in stud | Sealing ring |
Mounting position | optional |
Size of pack | 10 |
Design | Push-pull principle |
Note on operating and pilot medium | Lubricated operation possible |
Corrosion resistance class CRC | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C-80°C |
Nominal torque | 15.5 Nm |
Product weight | 30 g |
Pneumatic connection, port 1 | Male thread G3/8 |
Pneumatic connection, port 2 | For tubing outside diameter of 8 mm |
Colour of release ring | Blue |
Note on materials | RoHS-compliant |
Material housing | PBT |
Material release ring | POM |
Material tubing seal | NBR |
Material tubing clamp component | High-alloy stainless steel |
Packages
There are so many models.Welcome to enquiry and contact with me.Wait for you!
Attention
1.Before you endorse the parcel, please do open the package, and check out whether the items are damaged during the shipping process.
If so, please do refuse to sign for the parcel, the courier will send back the package to our company. Otherwise we are not responsible for this...
2.Any order is welcome. we will give discounts and combined shipping costs for you if you order more or mix order. If you have any questions.
please feel free to contact us.
