| Place of Origin: | China |
| Brand Name: | FESTO |

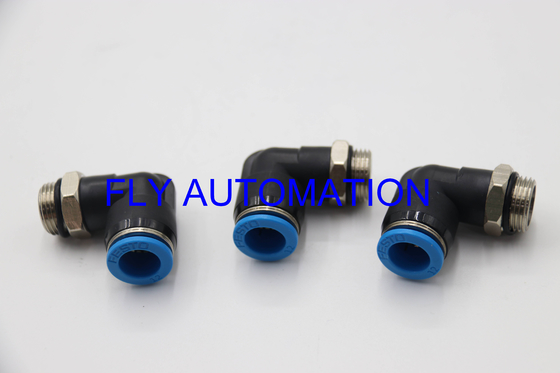

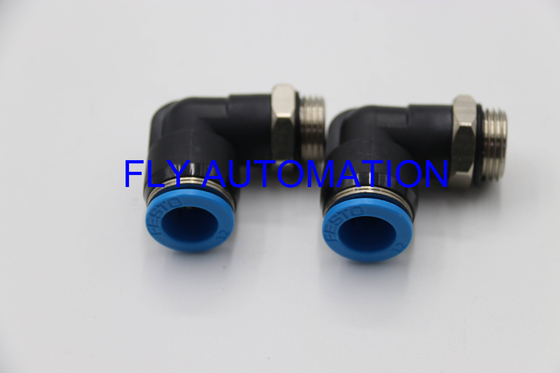

| Model Number: | QSL-G3/8-12 |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | EXW USD4-5 |

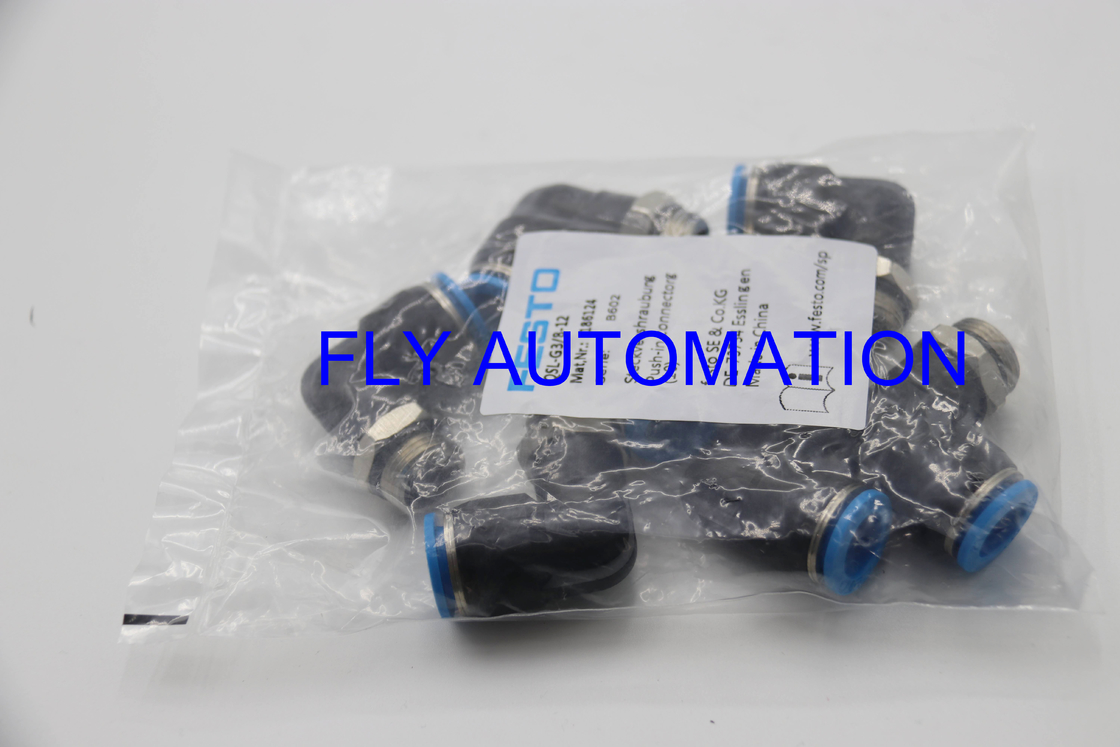

| Packaging Details: | plastic bag, carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 7000 pcs per week |
| Specifications: | QSL-G3/8-12 | Order No: | 186124 |
|---|---|---|---|
| Colour Of Release Ring: | Blue | Brand: | FESTO |
| Product Weight: | 37 G | Material Tubing Clamp Component: | High-alloy Stainless Steel |
| High Light: | Push In L Fitting 186124,L Pneumatic Tube Fittings,QSL-G3/8-12 Pneumatic Tube Fittings |
||
About product
Nominal size:10 mm
Mounting position:optional
Ambient temperature: -10°C-80°C
Product Technical Data
| Size | Standard |
| Nominal size | 10 mm |
| Type of seal on screw-in stud | Sealing ring |
| Mounting position | optional |
| Design | L-shape |
| Size of pack | 10 |
| Design | Push-pull principle |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C-80°C |
| Product weight | 37 g |
| Pneumatic connection, port 1 | Male thread G3/8 |
| Pneumatic connection, port 2 | For tubing outer diameter of 12 mm |
| Colour of release ring | Blue |
| Note on materials | RoHS-compliant |
| Material housing | PBT |
| Material release ring | POM |
| Material tubing seal | NBR |
| Material tubing clamp component | High-alloy stainless steel |
Choosing the right fitting is effortless. With a system that includes well over 1000 types of standard and function fittings, Festo offers the right solution for every connection.
There are so many models.Welcome to enquiry !
Contact Person: Jaren
Tel: 0086-15257858856
Fax: 86-152-57858856
