Place of Origin: | China |
Brand Name: | FESTO |
Model Number: | QSL-G1/8-6 |
Minimum Order Quantity: | 1 PCS |
---|---|
Price: | EXW USD3-4 |

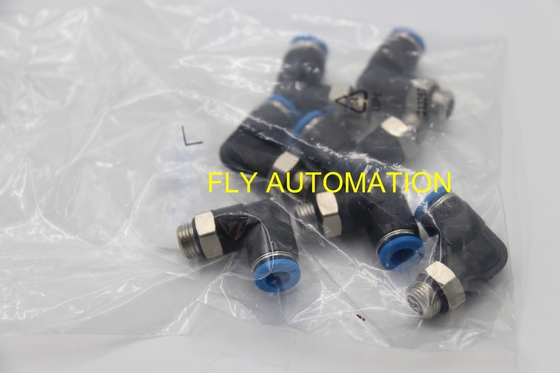

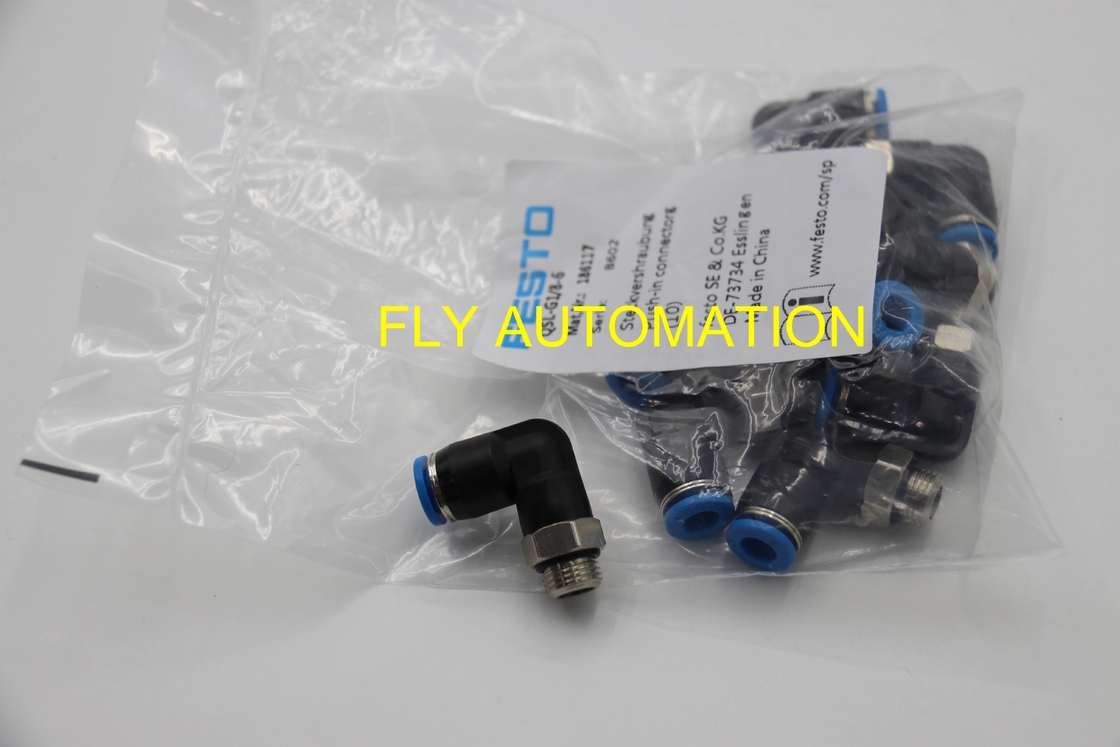

Packaging Details: | plastic bag, carton |
Delivery Time: | 7-10 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 8000 pcs per week |
Order No: | 186117 | Brand: | FESTO |
---|---|---|---|
Specifications: | QSL-G1/8-6 | Colour Of Release Ring: | Blue |
Product Weight: | 14 G | Nominal Torque: | 7 Nm |
High Light: | Festo Push-In L-Fitting,Push-In L-Fitting QSL-G1/8-6,186117 |

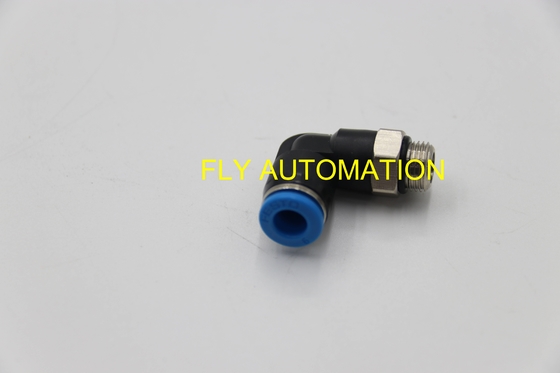

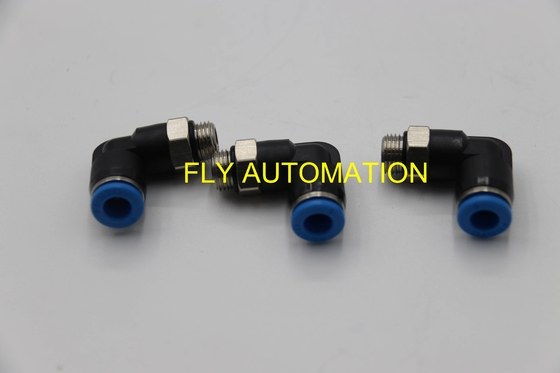

About product
It can be rotated once it has been fitted.
Pneumatic connection, port 1:Male thread G1/8.
Pneumatic connection, port 2:For tubing outer diameter of 6 mm.
Ambient temperature:-10°C-80°C
Mounting position:optional
Product Technical Data
Size | Standard |
Nominal size | 4.2 mm |
Type of seal on screw-in stud | Sealing ring |
Mounting position | optional |
Size of pack | 10 |
Design | Push-pull principle |
Note on operating and pilot medium | Lubricated operation possible |
Corrosion resistance class CRC | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C-80°C |
Nominal torque | 7 Nm |
Product weight | 14 g |
Pneumatic connection, port 1 | Male thread G1/8 |
Pneumatic connection, port 2 | For tubing outside diameter of 6 mm |
Colour of release ring | Blue |
Note on materials | RoHS-compliant |
Material housing | PBT |
Material release ring | POM |
Material tubing seal | NBR |
Material tubing clamp component | High-alloy stainless steel |
Dimensions and ordering data
There are so many models.Welcome to enquiry and contact with me.Wait for you!
After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
