| Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
 |
| Place of Origin: | China |
| Brand Name: | FESTO |
| Model Number: | QSL-G1/4-6 |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | EXW USD3-4 |

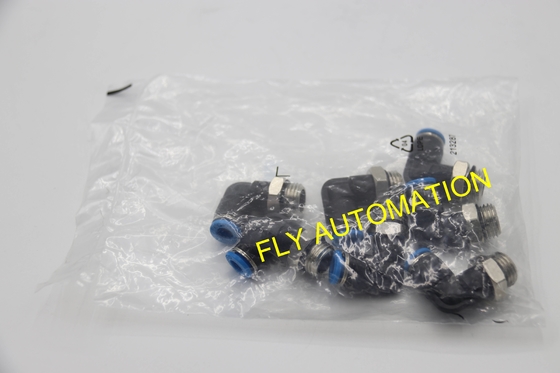

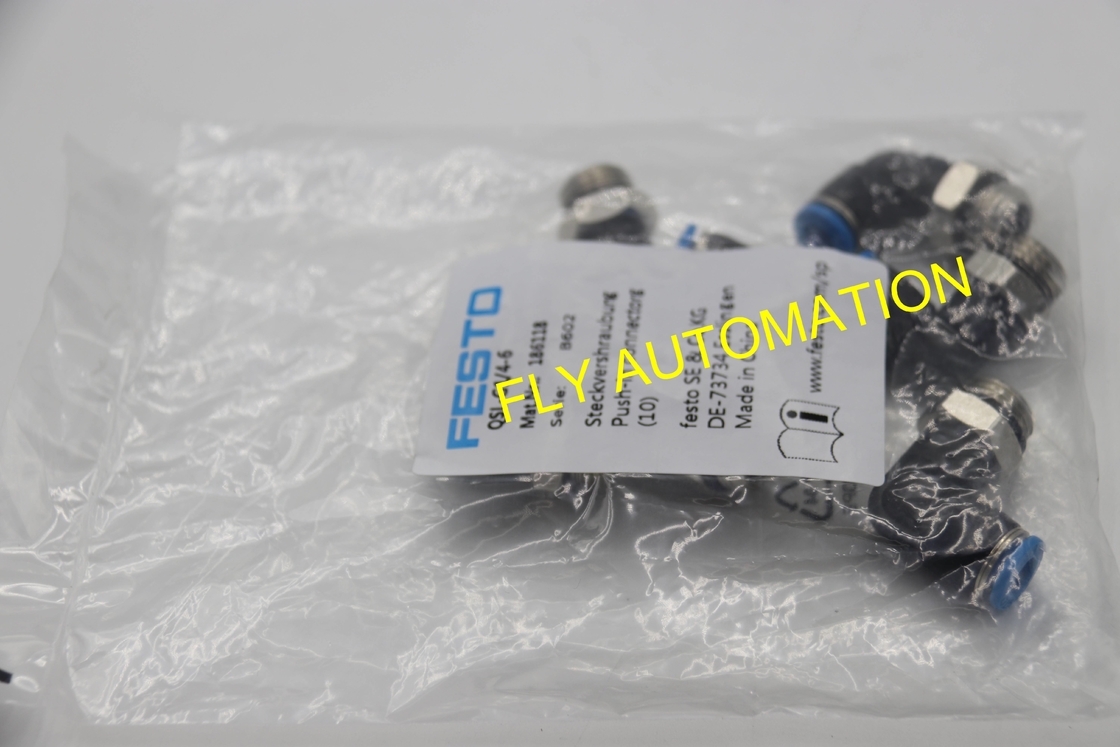

| Packaging Details: | plastic bag, carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 8000 pcs per week |
| Specifications: | QSL-G1/4-6 | Order No: | 186118 |
|---|---|---|---|
| Brand: | FESTO | Product Weight: | 21 G |
| Ambient Temperature: | -10°C-80°C | Colour Of Release Ring: | Blue |
| High Light: | Pneumatic Tube L Fitting,Pneumatic Tube Push In Fittings,QSL-G1/4-6 |
||

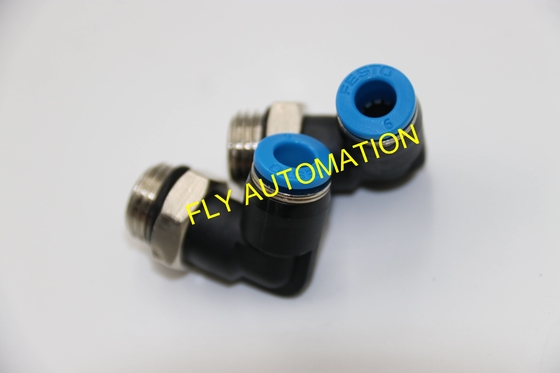

About product
Standard series
Wide range of variants: wide selection for maximum flexibility in standard applications
PBT and nickel-plated brass
Color:blue
Product Technical Data
| Size | Standard |
| Nominal size | 4.3 mm |
| Type of seal on screw-in stud | Sealing ring |
| Mounting position | optional |
| Size of pack | 10 |
| Design | Push-pull principle |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C-80°C |
| Nominal torque | 9 Nm |
| Product weight | 21 g |
| Pneumatic connection, port 1 | Male thread G1/4 |
| Pneumatic connection, port 2 | For tubing outside diameter of 6 mm |
| Colour of release ring | Blue |
| Note on materials | RoHS-compliant |
| Material housing | PBT |
| Material release ring | POM |
| Material tubing seal | NBR |
| Material tubing clamp component | High-alloy stainless steel |
Product range overview
There are so many models, best price and fast delivery time. Welcome to enquiry and contact with me.Wait for you!
Contact Person: Jaren
Tel: 0086-15257858856
Fax: 86-152-57858856
