Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
Place of Origin: | China |
Brand Name: | FESTO |
Model Number: | QS-G3/8-8 |
Minimum Order Quantity: | 1 PCS |
---|---|
Price: | EXW USD2-3 |
Packaging Details: | plastic bag, carton |
Delivery Time: | 7-10 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 8000 pcs per week |
Specifications: | QS-G3/8-8 | Order No: | 186100 |
---|---|---|---|
Brand: | FESTO | Product Weight: | 22 G |
Size: | Standard | Nominal Size: | 7 Mm |
High Light: | 186100 Push In Fitting,Push In Fitting QS-G3/8-8 |
About product
Color: blue
Material tubing clamp component:High-alloy stainless steel
Note on materials:RoHS-compliant
Material housing:Brass Nickel-plated
Corrosion resistance class CRC:1 - Low corrosion stress
Note on operating and pilot medium:Lubricated operation possible
Product Technical Data
Size | Standard |
Nominal size | 7 mm |
Type of seal on screw-in stud | Sealing ring |
Mounting position | optional |
Size of pack | 10 |
Design | Push-pull principle |
Note on operating and pilot medium | Lubricated operation possible |
Corrosion resistance class CRC | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C-80°C |
Nominal torque | 15.5 Nm |
Product weight | 22 g |
Pneumatic connection, port 1 | Male thread G3/8 |
Pneumatic connection, port 2 | For tubing outside diameter of 8 mm |
Colour of release ring | Blue |
Note on materials | RoHS-compliant |
Material housing | Brass Nickel-plated |
Material release ring | POM |
Material tubing seal | NBR |
Material tubing clamp component | High-alloy stainless steel |

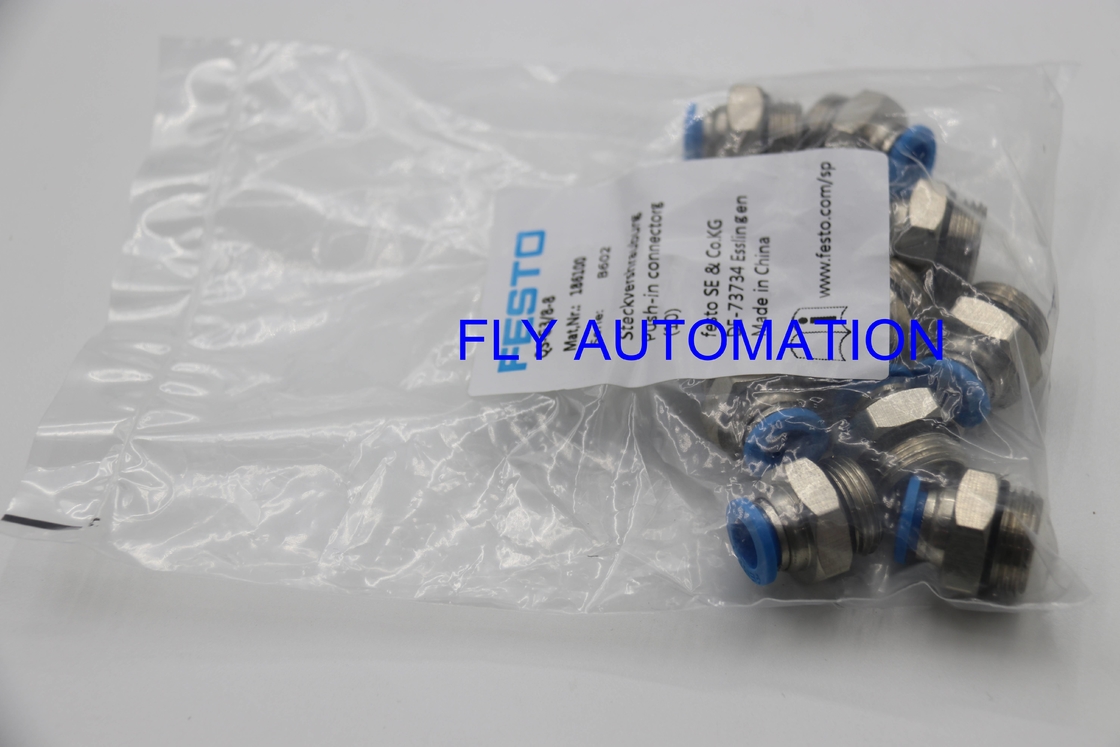

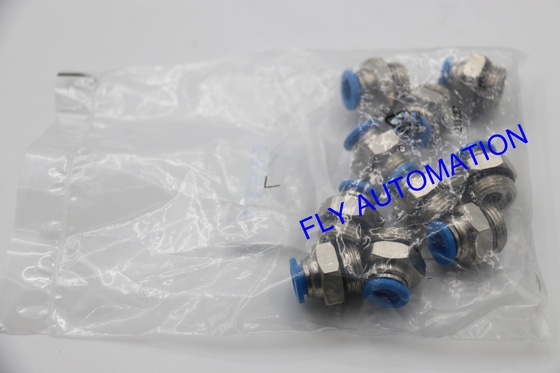

Product pictures
There are so many models, best price and fast delivery time. Welcome to enquiry and contact with me.Wait for you!
Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
