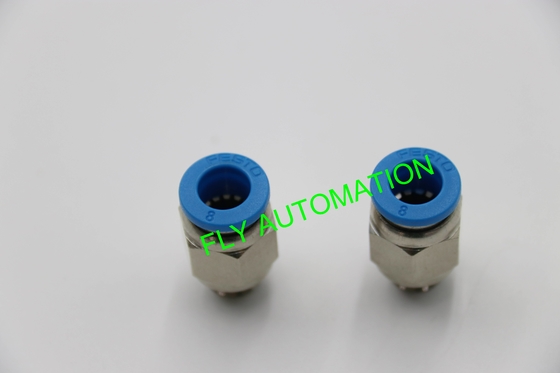

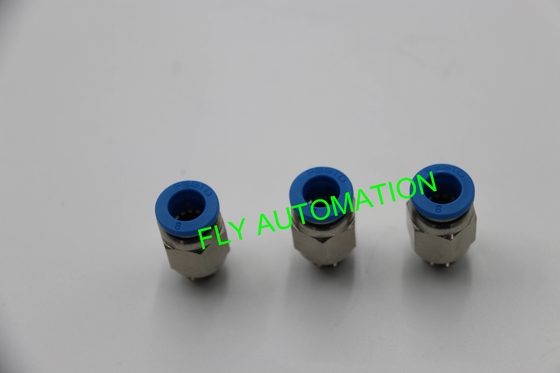

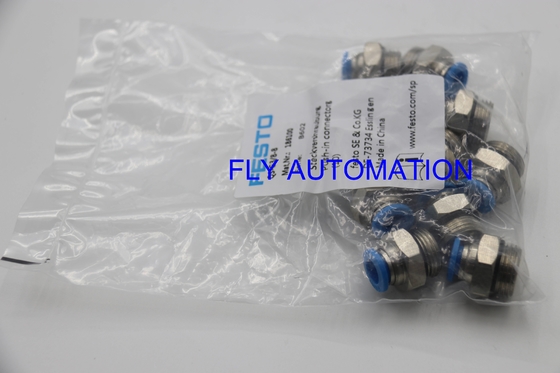

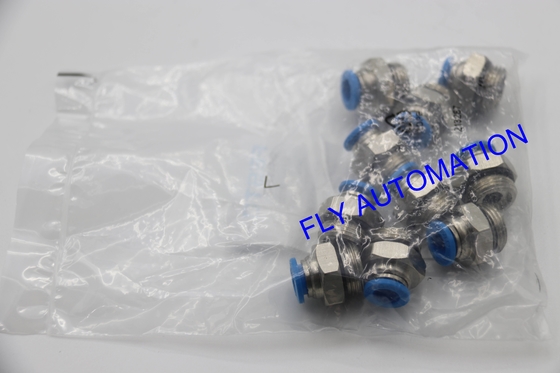

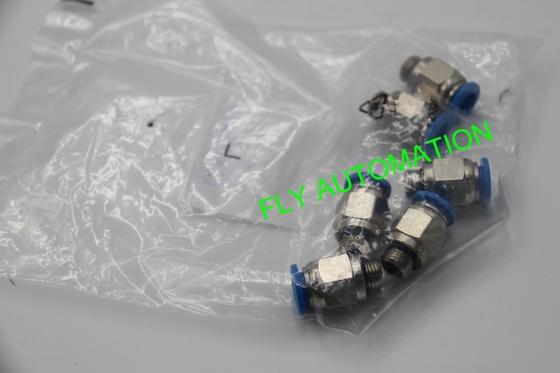

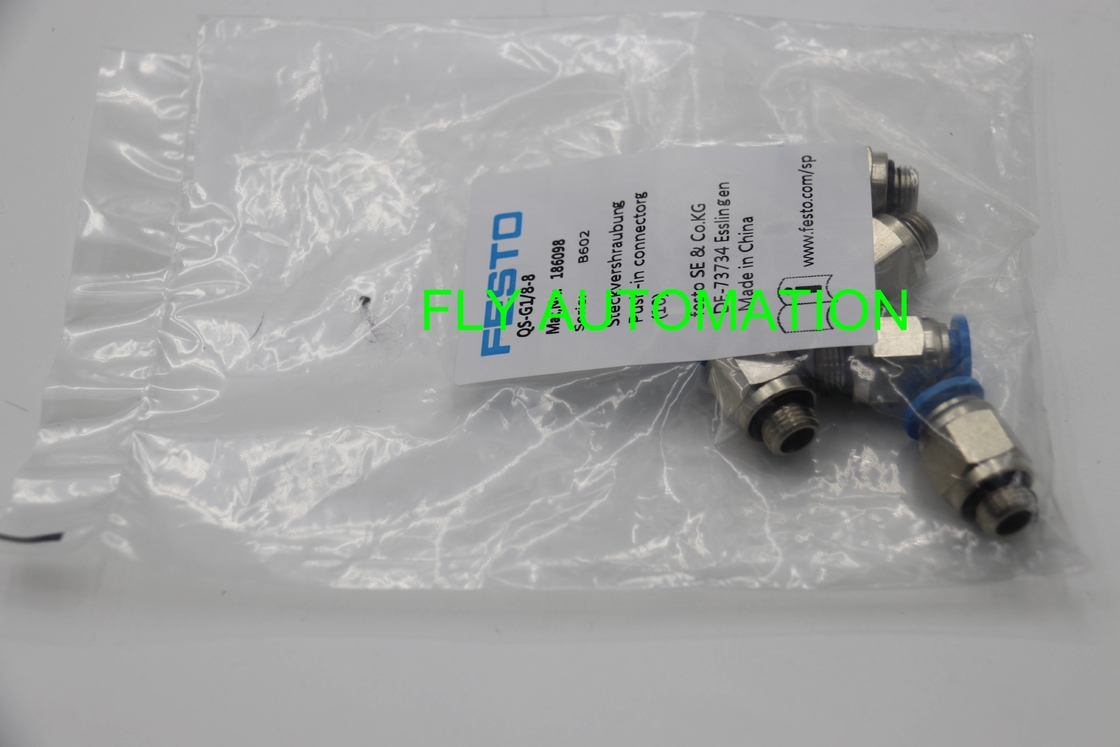

Festo Push In Fitting QS-G1/8-8 186098 GTIN4052568014599

Festo Push In Fitting QS-G1/8-8 186098 GTIN4052568014599

  • Festo Push In Fitting QS-G1/8-8 186098 GTIN4052568014599
  • Festo Push In Fitting QS-G1/8-8 186098 GTIN4052568014599
  • Festo Push In Fitting QS-G1/8-8 186098 GTIN4052568014599
  • Festo Push In Fitting QS-G1/8-8 186098 GTIN4052568014599
  • Festo Push In Fitting QS-G1/8-8 186098 GTIN4052568014599
  • Festo Push In Fitting QS-G1/8-8 186098 GTIN4052568014599
Festo Push In Fitting QS-G1/8-8 186098 GTIN4052568014599
Product Details:
Place of Origin: China
Brand Name: FESTO
Model Number: QS-G1/8-8
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: EXW USD2-3
Packaging Details: plastic bag, carton
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 8000 pcs per week
Contact Now
Detailed Product Description
Specifications: QS-G1/8-8 Order No: 186098
Brand: FESTO Product Weight: 13 G
Material Tubing Clamp Component: High-alloy Stainless Steel Material Release Ring: POM
High Light:

QS-G1/8-8 Pneumatic Tube Fittings

,

Festo Pneumatic Push In Fitting

,

186098 Pneumatic Tube Fittings

Push-in fitting QS-G1/8-8 186098 GTIN4052568014599

About product

1.The stainless steel retaining claw holds the tubing securely without damaging its surface.

2.The tapered ISO R threads have a self-sealing PTFE coating, which allows the fitting to be re-used up to five times without the need for additional sealing components.



 Product Technical Data

Size Standard
Nominal size 6 mm
Type of seal on screw-in stud Sealing ring
Mounting position optional
Size of pack 10
Design Push-pull principle
Note on operating and pilot medium Lubricated operation possible
Corrosion resistance class CRC 1 - Low corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Ambient temperature -10°C-80°C
Nominal torque 7 Nm
Product weight 13 g
Pneumatic connection, port 1 Male thread G1/8
Pneumatic connection, port 2 For tubing outside diameter of 8 mm
Colour of release ring Blue
Note on materials RoHS-compliant
Material housing Brass Nickel-plated
Material release ring POM
Material tubing seal NBR
Material tubing clamp component High-alloy stainless steel



Dimensions and ordering data

Festo Push In Fitting QS-G1/8-8 186098 GTIN4052568014599

There are so many models, best price and fast delivery time. Welcome to enquiry and contact with me.Wait for you!
