| Place of Origin: | China |
| Brand Name: | FESTO |
| Model Number: | QS-G1/4-8 |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | EXW USD2-3 |
| Packaging Details: | plastic bag, carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 8000 pcs per week |
| Order No: | 186099 | Brand: | FESTO |
|---|---|---|---|
| Specifications: | QS-G1/4-8 | Product Weight: | 15 G |
| Pneumatic Connection, Port 1: | Male Thread G1/4 | Pneumatic Connection, Port 2: | For Tubing Outside Diameter Of 8 Mm |
| High Light: | Festo Push In Fitting,QS-G1/4-8 Push In Fitting,Push In Pneumatic Tube Fittings |
||

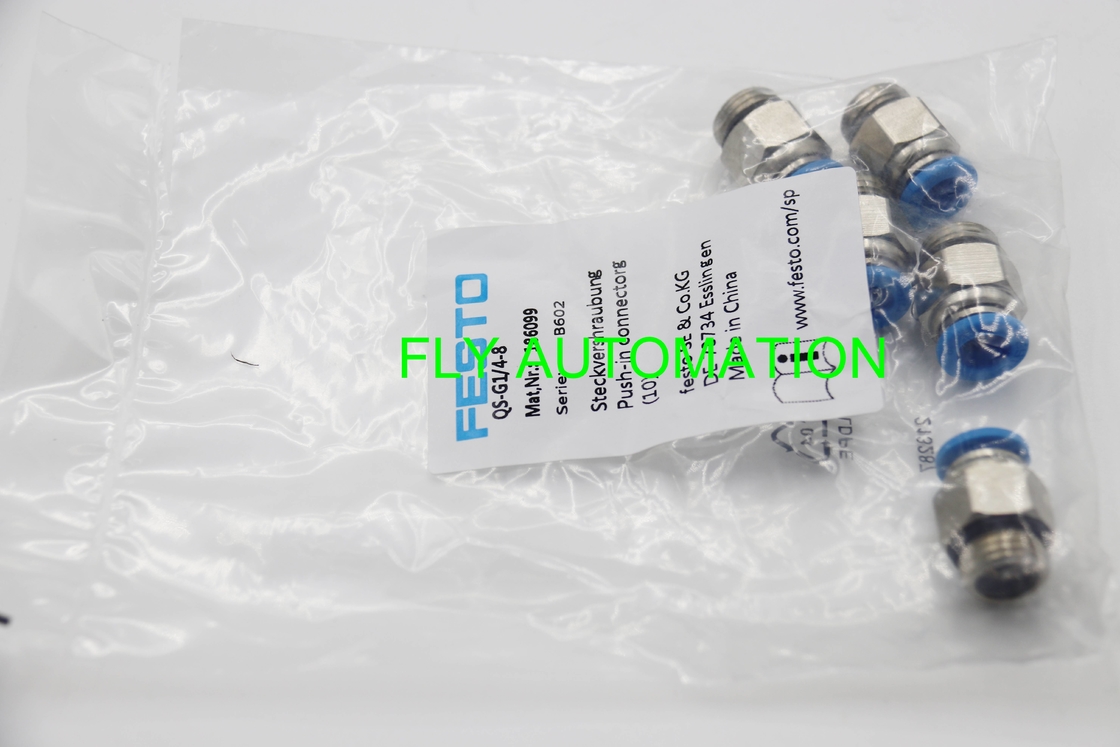

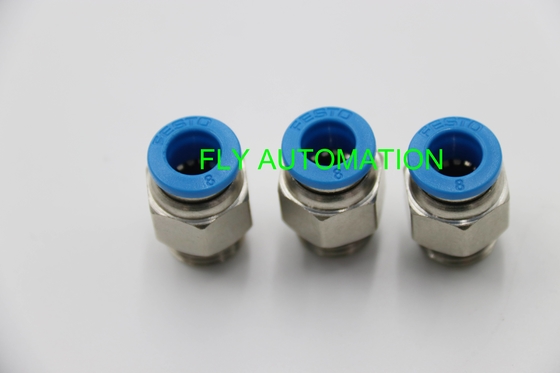

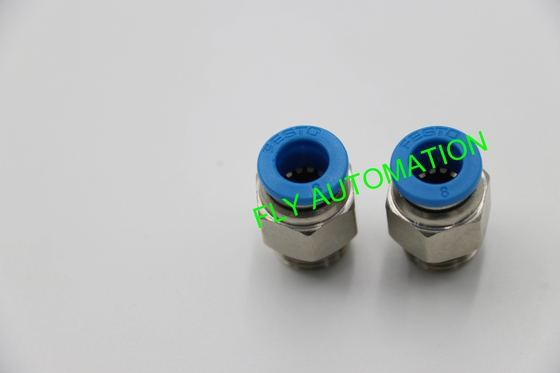

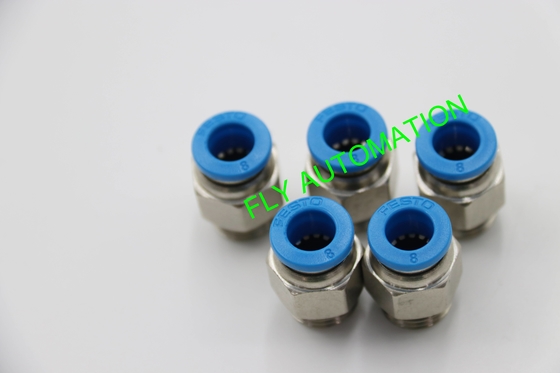

About product
1.Pneumatic connection, port 1:Male thread G1/4.
2.Pneumatic connection, port 2:For tubing outside diameter of 8 mm.
3.Material tubing clamp component:High-alloy stainless steel.
4.Design:Push-pull principle
Product Technical Data
| Size | Standard |
| Nominal size | 7 mm |
| Type of seal on screw-in stud | Sealing ring |
| Mounting position | optional |
| Size of pack | 10 |
| Design | Push-pull principle |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C-80°C |
| Nominal torque | 9 Nm |
| Product weight | 15 g |
| Pneumatic connection, port 1 | Male thread G1/4 |
| Pneumatic connection, port 2 | For tubing outside diameter of 8 mm |
| Colour of release ring | Blue |
| Note on materials | RoHS-compliant |
| Material housing | Brass Nickel-plated |
| Material release ring | POM |
| Material tubing seal | NBR |
| Material tubing clamp component | High-alloy stainless steel |
Dimensions and ordering data
There are so many models. Welcome to enquiry and contact with me.Wait for you!
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNT will be normal ways. If you require use of a courier, we can do it.
