| Place of Origin: | China |
| Brand Name: | FESTO |
| Model Number: | SMT-C1-PS-24V-K-10,0-OE |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD50-60 |
| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 7-10working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 pcs per month |

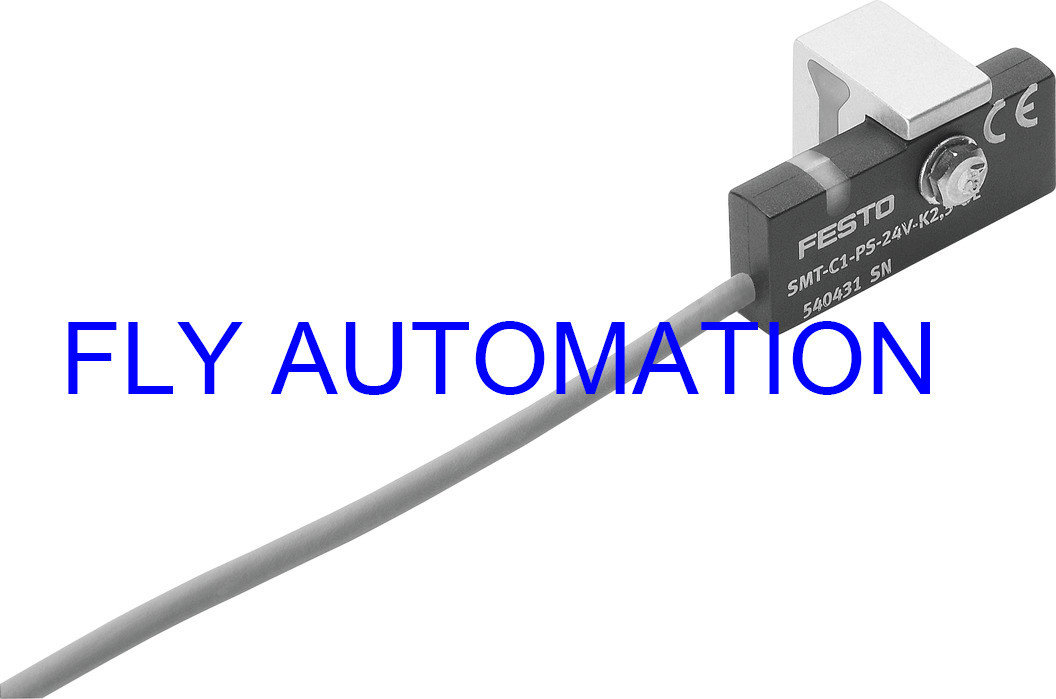

| Type: | SMT-C1-PS-24V-K-10,0-OE | Part No: | 571340 |
|---|---|---|---|
| Brand: | FESTO | Ambient Temperature: | -20°C-70°C |
| Switching Output: | PNP | Colour: | Black |
| High Light: | 571340 Pneumatic System Components,PNP Festo Proximity Sensor,Food grade Proximity Sensor |
||
About product
1.Measuring principle: magneto-inductive.
2.Easy-to-clean design.
3.Food grade see www.festo.com/certificates/SMT_C1.
Technical Data
| Design | Block design |
| Based on standard | EN 60947-5-2 |
| Symbol | 00991152 |
| Approval | RCM trademark |
| Note on materials | RoHS-compliant Free of halogen |
| Measured variable | Position |
| Measuring principle | Magneto-inductive |
| Ambient temperature | -20°C-70°C |

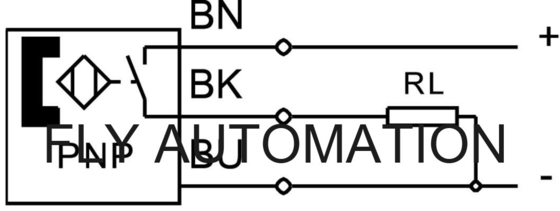

| Switching output | PNP |
| Switching element function | N/O contact |
| Hysteresis | 2 mm |
| Switch-on time | 0.5 ms |
| Switch-off time | 0.5 ms |
| Max. output current | 200 mA |
| Max. switching capacity DC | 6 W |
| Voltage drop | 1.8 V |
| Inductive protective circuit | Adapted to MZ, MY, ME coils |
| Min. load current | 0 mA |
| Off-state current | 0.1 mA |
| Short circuit current rating | Pulsed |
| Overload protection | Available |
| Rated operational voltage DC | 24 V |
| Operational voltage range DC | 10 V ... 30 V |
| Reverse polarity protection | For all electrical connections |
| Electrical connection 1, connection type | Cable |
| Electrical connection 1, connector system | Open end |
| Electrical connection 1, number of connections/cores | 3 |
| Connection outlet orientation | In-line |
| Cable length | 10 m |
| Cable sheath colour | grey |
| Material cable sheath | TPE-O |
| Wire ends | Wire end sleeve |
| Type of mounting | Clamped |
| Tightening torque | 1.2 Nm |
| Mounting position | optional |
| Product weight | 114.5 g |
| Housing colour | Black |
| Switching status indication | Yellow LED |
| Ambient temperature with moving cable | -20°C-70°C |
| Degree of protection | IP65 IP68 To IEC 60529 |
| LABS (PWIS) conformity | VDMA24364-B2-L |
